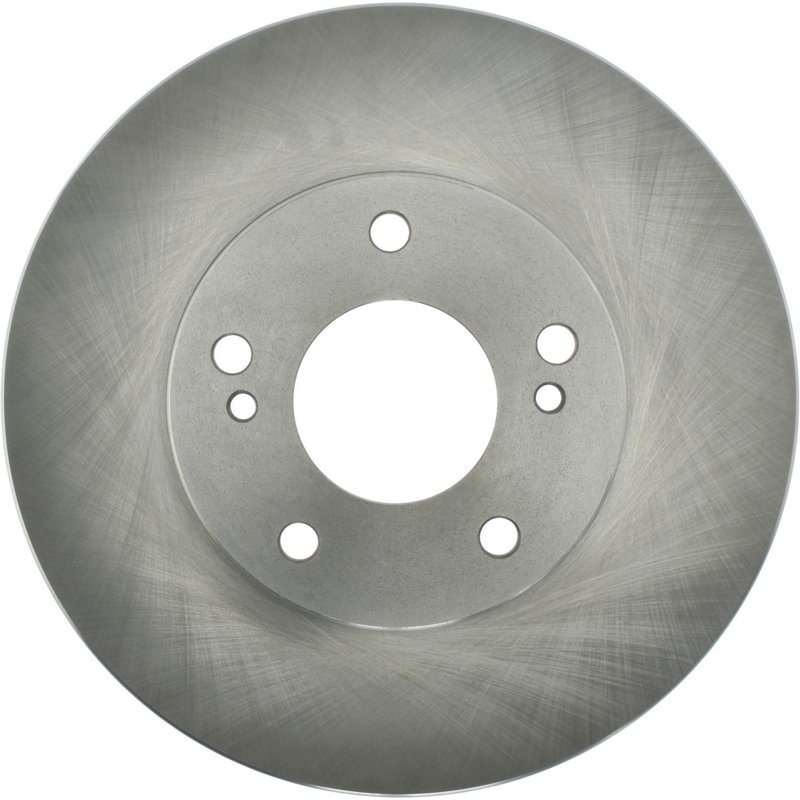

Centric 121.42046 Disc Brake Rotor - Front

Overview of Centric C-TEK Standard Disc Brake Rotor 121.42046

The Centric C-TEK Standard Disc Brake Rotor 121.42046 is engineered for reliable braking performance on Nissan 300ZX models. Designed as a vented rotor with a smooth surface, it offers consistent heat dissipation and stable stopping power under various driving conditions.

• Compatible with Nissan 300ZX vehicles
• Vented disc brake rotor design for improved cooling
• Overall diameter of 11.024 inches (280 mm)
• Nominal thickness of 1.028 inches (26.1 mm) with discard thickness at 0.945 inches (24 mm)
• Floating disc mounting with straight vane style for efficient airflow
• 5 lug holes with a 4.5 inch (114.3 mm) bolt circle diameter
• Center hole diameter of 2.681 inches (68.1 mm)
• Weight approximately 18.5 lbs (8.41 kgs)
• ABS tone ring not included

Detailed Product Description

This Centric C-TEK Standard Disc Brake Rotor, part number 121.42046, is specifically designed for Nissan 300ZX models requiring a vented rotor with a smooth braking surface. The vented design features straight vanes that promote effective heat dissipation, reducing the risk of brake fade during extended use. The rotor’s nominal thickness of 1.028 inches (26.1 mm) ensures durability, while the discard thickness of 0.945 inches (24 mm) provides a clear wear limit for safe replacement. The floating disc mounting system allows for slight rotor movement, which helps maintain even pad contact and consistent braking performance. With a 5-lug hole pattern and a 4.5 inch (114.3 mm) bolt circle diameter, this rotor fits securely on the Nissan 300ZX hub assembly.

About the C-TEK Standard Disc Brake Rotors Line

The C-TEK Standard Disc Brake Rotors line by Centric offers a balance of quality and value for standard replacement needs. These rotors are engineered to meet or exceed OEM specifications, providing reliable braking performance without additional features like drilled or slotted surfaces. The smooth surface and vented design of the C-TEK Standard rotors help maintain consistent braking and heat management, making them suitable for everyday driving conditions on vehicles such as the Nissan 300ZX.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Nissan 300ZX
• Addresses brake pulsation caused by uneven rotor surfaces
• Improves heat dissipation to reduce brake fade during extended braking
• Restores proper rotor thickness for safe braking performance
• Eliminates noise and vibration related to damaged rotors

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (0.945 inches) before installation
• Clean rotor surface and hub mounting area to prevent uneven contact
• Torque lug nuts to manufacturer specifications for secure fitment
• Check compatibility with ABS systems; this rotor does not include an ABS tone ring
• Inspect brake pads and replace if worn to ensure optimal rotor performance

Quality Assurance and Warranty

Centric C-TEK Standard Disc Brake Rotors are manufactured to meet OEM standards for fit, form, and function. While specific warranty details for part number 121.42046 should be confirmed with the supplier, Centric generally offers limited warranties covering defects in materials and workmanship. This rotor is designed to provide consistent braking performance and durability when installed and maintained according to vehicle manufacturer guidelines.
