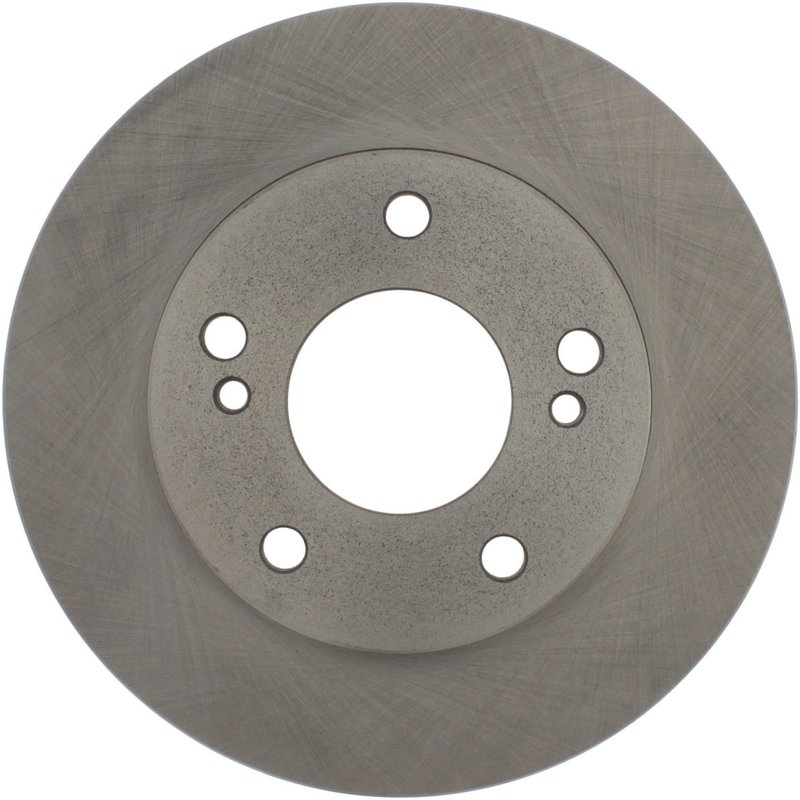

Centric 121.42064 Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Nissan 240SX

The Centric C-TEK Standard Disc Brake Rotor 121.42064 is engineered to provide consistent braking performance for Nissan 240SX vehicles. Designed with precision, this vented rotor ensures effective heat dissipation and smooth braking under various driving conditions.

• Vented disc brake rotor with straight vane design for improved cooling
• Nominal thickness of 0.866 inches (22.000 mm) and discard thickness of 0.787 inches (20.000 mm)
• Overall height measures 1.937 inches (49.200 mm) for proper fitment
• Outside diameter of 10.118 inches (257.000 mm) compatible with Nissan 240SX
• Floating disc mounting with 5 lug holes, 0.504 inches (12.800 mm) diameter each
• Smooth surface type for consistent pad contact and braking efficiency
• Center hole diameter of 2.681 inches (68.100 mm) and mounting bolt hole circle diameter of 4.500 inches (114.300 mm)
• ABS tone ring not included
• Weight approximately 13 lbs (5.910 kgs)

About the C-TEK Standard Disc Brake Rotors Line

The C-TEK Standard Disc Brake Rotors line by Centric offers a balance of quality and value for everyday driving needs. These rotors are designed to meet or exceed OEM specifications, providing reliable stopping power and durability. The 121.42064 rotor is part of this line, featuring vented construction to help reduce heat buildup and maintain braking performance over time.

Technical Details and Specifications

This disc brake rotor is vented with straight vanes, which enhances airflow and cooling during braking. The rotor’s nominal thickness is 0.866 inches (22.000 mm), with a discard thickness of 0.787 inches (20.000 mm), indicating when replacement is necessary to maintain safety. The overall height of 1.937 inches (49.200 mm) and outside diameter of 10.118 inches (257.000 mm) ensure proper fitment on Nissan 240SX models. The rotor mounts using a floating disc mounting system with five lug holes, each 0.504 inches (12.800 mm) in diameter, arranged on a 4.500 inch (114.300 mm) bolt circle diameter. The smooth surface type promotes even pad wear and consistent braking feel.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Upgrading from solid to vented rotors for improved heat dissipation
• Addressing reduced braking efficiency due to rotor thickness below discard limits
• Resolving uneven brake pad wear linked to rotor surface irregularities
• Maintaining proper fitment and safety on Nissan 240SX brake systems

Installation Notes and Tips

Ensure the rotor surface is clean and free of debris before installation. Verify the rotor thickness is above the discard thickness specification of 0.787 inches (20.000 mm). Use proper torque specifications for mounting bolts on the 4.500 inch (114.300 mm) bolt circle. Since this rotor does not include bearings or an ABS tone ring, confirm compatibility with your vehicle’s existing components. Proper bedding of new rotors and pads is recommended to optimize braking performance.

Quality Assurance and Warranty

Centric’s C-TEK Standard Disc Brake Rotors are manufactured to meet OEM standards for fit, form, and function. While specific warranty details are not provided here, Centric products typically come with a limited warranty against defects in materials and workmanship. Using the Centric 121.42064 rotor ensures adherence to Nissan 240SX braking system requirements.
