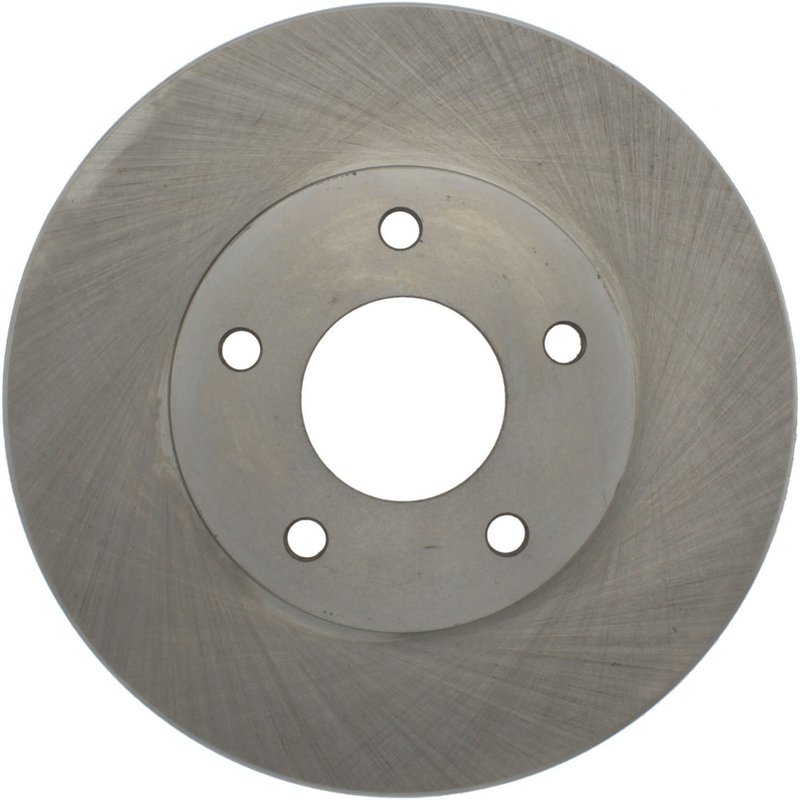

Centric 121.42069 Disc Brake Rotor - Front

Overview of Centric C-TEK Standard Disc Brake Rotor 121.42069

The Centric C-TEK Standard Disc Brake Rotor 121.42069 is engineered for reliable braking performance on select INFINITI and Nissan vehicles. Designed specifically for models like the INFINITI I30 and Nissan Maxima, this vented disc brake rotor offers consistent stopping power and durability.

• Compatible with INFINITI I30 and Nissan Maxima
• Part number 121.42069 for precise fitment
• Vented rotor design for improved heat dissipation
• Nominal thickness of 1.024 inches (26.000 mm)
• Outside diameter of 11.016 inches (279.800 mm)
• Floating disc mounting with straight vane style
• 5 lug holes with 4.5 inch (114.3 mm) bolt circle diameter
• Smooth surface type for consistent pad contact

Details on C-TEK Standard Disc Brake Rotors

The C-TEK Standard Disc Brake Rotors line by Centric is designed to meet or exceed OEM specifications for standard replacement rotors. This product line focuses on delivering reliable braking performance with quality materials and precise manufacturing tolerances. The 121.42069 rotor features a vented design that helps reduce heat buildup during braking, which is critical for maintaining rotor integrity and brake system efficiency over time. The smooth surface finish ensures even pad wear and consistent braking feel.

Technical Specifications and Features

This disc brake rotor has a nominal thickness of 1.024 inches (26.000 mm) and a discard thickness of 0.945 inches (24.000 mm), indicating the minimum thickness before replacement is necessary. The overall height measures 1.937 inches (49.200 mm), and the rotor weighs approximately 14.5 lbs (6.59 kgs). It includes a center hole diameter of 2.677 inches (68.000 mm) and five lug holes sized at 0.496 inches (12.600 mm) diameter, arranged on a 4.5 inch (114.3 mm) bolt circle diameter. The rotor uses a floating disc mounting system with two miscellaneous holes and straight vane style for effective cooling. Note that this rotor does not include an ABS tone ring or bearings.

Applications and Problem Solving

• Replacement for worn or warped rotors on INFINITI I30 and Nissan Maxima
• Addresses brake pulsation caused by uneven rotor surface
• Improves braking performance by restoring proper rotor thickness
• Helps reduce brake fade through vented rotor design
• Resolves noise issues related to rotor surface irregularities

Installation Notes and Tips

Ensure the rotor thickness is measured before installation to confirm it meets or exceeds the nominal thickness of 1.024 inches. Clean the rotor surface to remove any protective coatings or debris before mounting. Verify the 5-lug bolt pattern and 4.5 inch bolt circle diameter match the vehicle hub. Since this rotor does not include bearings or an ABS tone ring, reuse existing components if applicable. Proper torque specifications should be followed when tightening lug nuts to avoid rotor warping.

Quality Assurance and Warranty

Centric C-TEK Standard Disc Brake Rotors are manufactured to meet OEM standards for fit, form, and function. Each rotor undergoes quality control inspections to ensure dimensional accuracy and material integrity. While specific warranty details are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. It is recommended to consult the product packaging or Centric’s official documentation for exact warranty terms.
