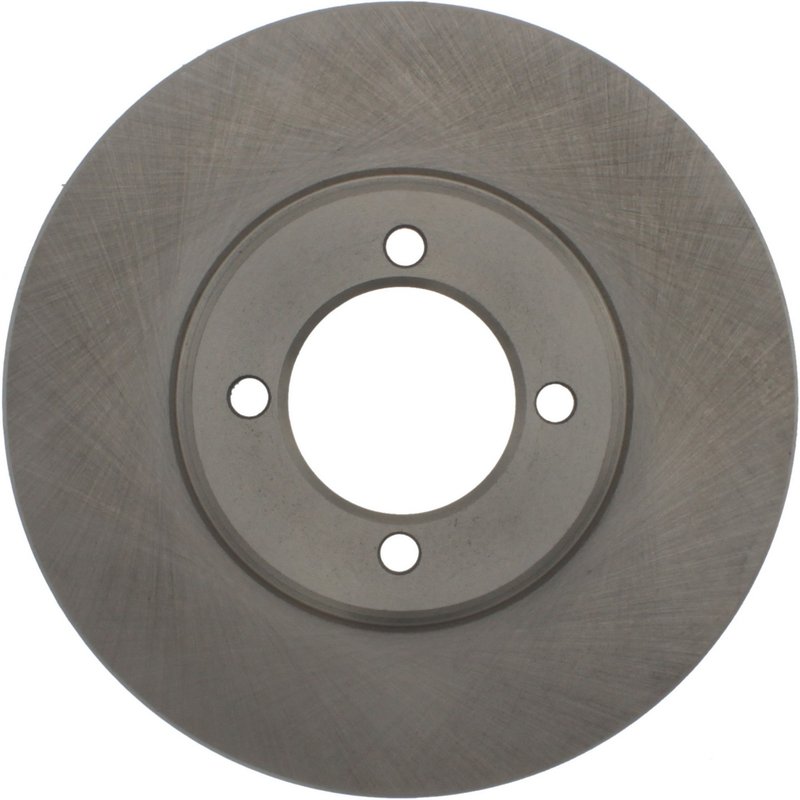

Centric 121.44027 Disc Brake Rotor - Front

Overview of Centric C-TEK Standard Disc Brake Rotor 121.44027

The Centric C-TEK Standard Disc Brake Rotor 121.44027 is engineered for reliable braking performance on Toyota Corolla models. Designed as a vented rotor with a smooth surface, it offers consistent heat dissipation and durability for everyday driving conditions.

• Compatible with Toyota Corolla vehicles
• Part number: 121.44027
• Vented disc brake rotor with straight vane design
• Outside diameter: 9.213 inches (234 mm)
• Nominal thickness: 0.709 inches (18 mm); discard thickness: 0.669 inches (17 mm)
• Overall height: 1.496 inches (38 mm)
• Mounting bolt hole quantity: 4 with 0.421 inch (10.7 mm) diameter
• Center hole diameter: 2.520 inches (64 mm)
• Weight: approximately 9 lbs (4.09 kgs)
• ABS tone ring not included

Product Line Details: C-TEK Standard Disc Brake Rotors

The C-TEK Standard Disc Brake Rotors line by Centric provides OEM-quality replacement rotors designed to meet factory specifications. This product line focuses on delivering consistent braking performance with precise fitment and reliable materials. The 121.44027 rotor maintains the original equipment dimensions and features a vented design to help manage heat buildup during braking, which is essential for maintaining stopping power and rotor longevity on Toyota Corolla vehicles.

Technical Description and Specifications

This disc brake rotor features a vented design with straight vanes that promote efficient airflow to reduce heat and prevent brake fade. The smooth surface finish ensures even pad contact and consistent braking response. With a nominal thickness of 0.709 inches (18 mm) and a discard thickness of 0.669 inches (17 mm), this rotor meets the necessary wear limits for safe operation. The overall height of 1.496 inches (38 mm) and an outside diameter of 9.213 inches (234 mm) align with Toyota Corolla factory specifications. The rotor mounts behind the hub using four mounting bolt holes spaced on an 87 mm bolt circle diameter, each hole measuring 10.7 mm in diameter. This rotor does not include an ABS tone ring or bearings.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Addressing rotor thickness below manufacturer discard limits
• Resolving uneven brake pad wear due to rotor surface issues
• Improving braking performance on Toyota Corolla models with OEM fitment
• Eliminating noise or vibration related to damaged rotors

Installation Notes and Tips

Ensure the rotor surface is clean and free of rust or debris before installation. Verify the rotor thickness with a micrometer to confirm it meets minimum specifications. Use proper torque settings on mounting bolts to avoid rotor warping. Since this rotor mounts behind the hub, confirm correct alignment during installation. This rotor does not include bearings or an ABS tone ring, so reuse existing components if applicable.

Quality Assurance and Warranty

Centric C-TEK Standard Disc Brake Rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The 121.44027 rotor undergoes rigorous quality control to ensure durability and consistent braking performance. Warranty coverage details should be confirmed with the product documentation or supplier.
