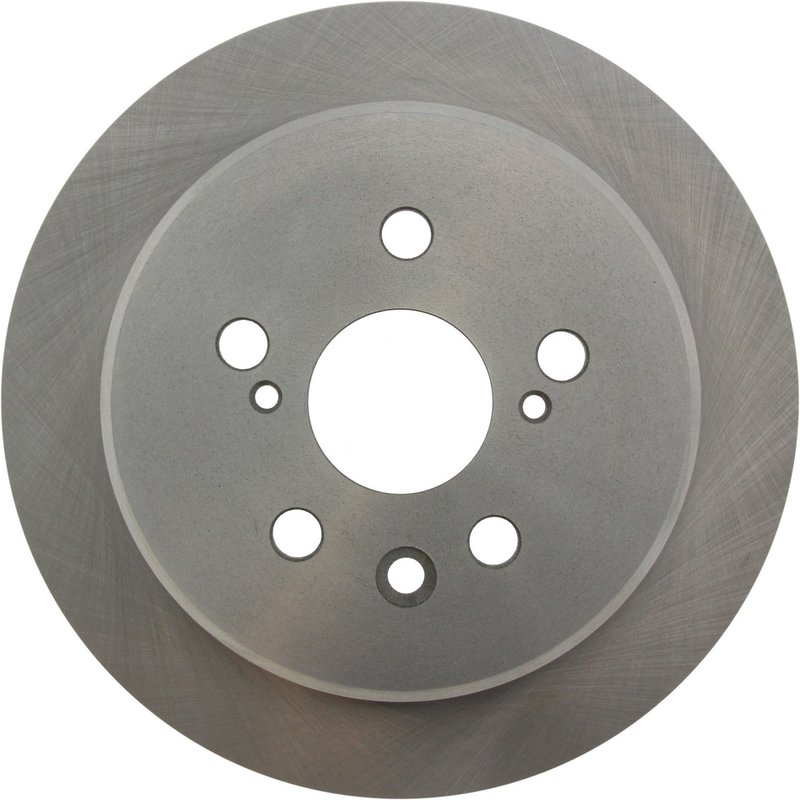

Centric 121.44056 Disc Brake Rotor - Rear

Overview of Centric C-TEK Standard Disc Brake Rotor 121.44056

The Centric C-TEK Standard Disc Brake Rotor 121.44056 is engineered for reliable braking performance on Toyota Camry and Celica models. Designed as a solid rotor with a smooth surface, it meets OEM specifications to ensure consistent stopping power and durability.

• Compatible with Toyota Camry and Celica vehicles
• Solid disc brake rotor with smooth surface finish
• Nominal thickness of 0.394 inches (10.000 mm)
• Discard thickness at 0.354 inches (9.000 mm)
• Overall height of 2.354 inches (59.800 mm)
• Outside diameter measuring 10.591 inches (269.000 mm)
• Five lug holes with 0.571 inch (14.500 mm) diameter
• Center hole diameter of 2.126 inches (54.000 mm)
• Mounting bolt hole circle diameter of 100.000 mm (3.937 inches)
• Weight approximately 9 lbs (4.090 kgs)

About the C-TEK Standard Disc Brake Rotors Line

The C-TEK Standard Disc Brake Rotors line by Centric offers rotors designed to meet or exceed OEM standards for fit, form, and function. This product line focuses on providing solid rotors with smooth surfaces that deliver consistent braking performance and long service life. The 121.44056 rotor is part of this line, ensuring compatibility and reliable operation for Toyota Camry and Celica models requiring a solid rotor design.

Product Details and Specifications

This Centric disc brake rotor features a solid construction with a smooth surface type, optimized for standard braking applications. The nominal thickness is 0.394 inches (10.000 mm), with a discard thickness of 0.354 inches (9.000 mm), indicating when the rotor should be replaced to maintain safe braking. The rotor’s outside diameter is 10.591 inches (269.000 mm), and it has an overall height of 2.354 inches (59.800 mm). It includes five lug holes sized at 0.571 inches (14.500 mm) diameter and a center hole diameter of 2.126 inches (54.000 mm), designed to fit the mounting bolt hole circle diameter of 100.000 mm (3.937 inches). This rotor does not include an ABS tone ring or bearings.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Toyota Camry and Celica
• Addresses brake pulsation and vibration issues
• Restores proper rotor thickness for safe braking performance
• Eliminates noise caused by uneven rotor surfaces
• Prevents brake fade due to rotor overheating

Installation Notes and Tips

Ensure the rotor surface is clean and free of debris before installation. Verify the rotor thickness is above the discard thickness of 0.354 inches (9.000 mm) to maintain safety standards. Use proper torque specifications for the five lug nuts and mounting bolts to avoid rotor warping. This rotor is designed for vehicles without ABS tone rings, so confirm compatibility with your vehicle’s braking system. It is recommended to replace brake pads simultaneously for optimal braking performance.

Quality Assurance and Warranty

Centric C-TEK Standard Disc Brake Rotors are manufactured to meet OEM quality standards, ensuring reliable fit and function. While specific warranty details for part number 121.44056 are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Always consult product documentation or Centric’s official resources for warranty terms related to this rotor.
