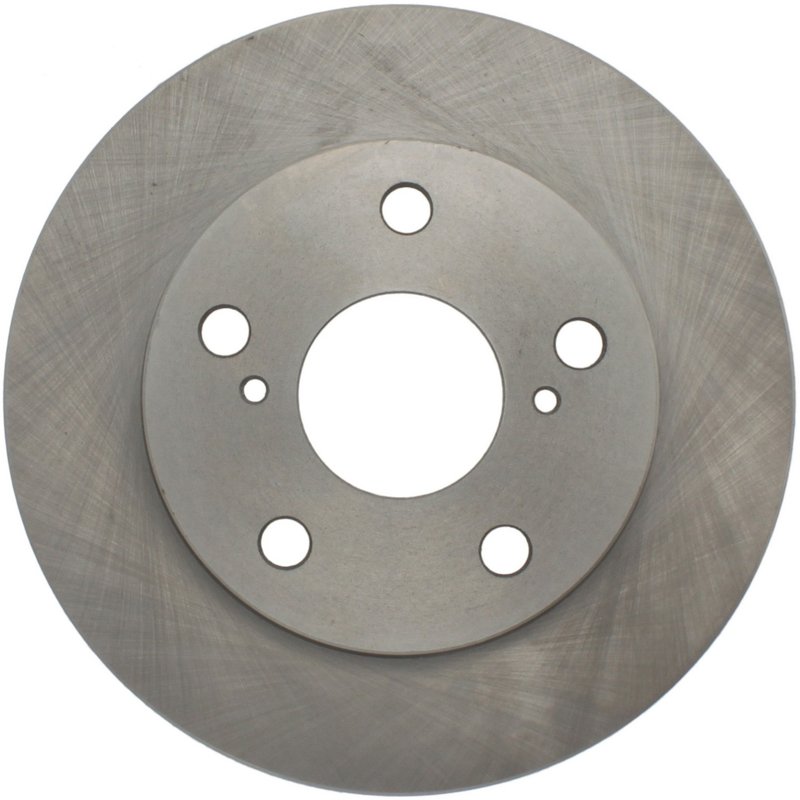

Centric 121.44070 Disc Brake Rotor - Front

Overview of Centric C-TEK Standard Disc Brake Rotor 121.44070

The Centric C-TEK Standard Disc Brake Rotor 121.44070 is engineered for reliable braking performance on Toyota Previa models. Designed as a vented rotor with a smooth surface, it offers consistent heat dissipation and durability for everyday driving conditions.

• Compatible with Toyota Previa vehicles
• Part number 121.44070 for precise identification
• Vented disc brake rotor design for improved cooling
• Overall diameter of 10.039 inches (255 mm)
• Nominal thickness of 0.984 inches (25 mm) with discard thickness at 0.906 inches (23 mm)
• Floating disc mounting style with straight vane design
• 5 lug holes with a bolt circle diameter of 4.5 inches (114.3 mm)
• Center hole diameter of 2.441 inches (62 mm)
• Weight approximately 12.6 lbs (5.73 kgs)
• ABS tone ring not included

Detailed Product Description

This Centric C-TEK Standard Disc Brake Rotor 121.44070 is specifically designed for Toyota Previa models, ensuring proper fitment and reliable braking performance. The rotor features a vented design with straight vanes that facilitate efficient heat dissipation during braking, reducing the risk of brake fade. The smooth surface type provides consistent pad contact and wear. With a nominal thickness of 0.984 inches (25 mm) and a discard thickness of 0.906 inches (23 mm), this rotor meets OEM specifications for thickness and durability. The floating disc mounting style allows for slight movement to accommodate thermal expansion and improve rotor longevity. The rotor includes five lug holes with a 4.5-inch (114.3 mm) bolt circle diameter, matching the Toyota Previa’s wheel hub specifications. The center hole diameter of 2.441 inches (62 mm) ensures proper centering on the hub. This rotor does not include an ABS tone ring or bearings, so those components must be sourced separately if required.

About the C-TEK Standard Disc Brake Rotors Line

The C-TEK Standard Disc Brake Rotors line by Centric offers rotors designed to meet or exceed OEM standards for fit, form, and function. This product line focuses on providing reliable, direct replacement rotors with standard vented designs and smooth surfaces, suitable for daily driving and general use. The 121.44070 rotor is part of this line, delivering consistent braking performance for Toyota Previa vehicles without additional features like drilled or slotted surfaces.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Toyota Previa
• Addresses brake pulsation caused by uneven rotor surfaces
• Resolves excessive brake noise due to rotor wear
• Improves braking consistency after rotor thinning below discard thickness
• Restores proper rotor thickness for safe braking performance

Installation Notes and Tips

• Verify compatibility with Toyota Previa before installation
• Ensure rotor thickness is within nominal and discard specifications
• Clean rotor surface before mounting to remove any protective coatings
• Torque lug nuts to manufacturer specifications to avoid rotor warping
• Check for proper alignment of the floating disc mounting to prevent uneven wear

Quality Assurance and Warranty

Centric C-TEK Standard Disc Brake Rotors are manufactured to meet OEM quality standards, ensuring reliable performance and durability. While specific warranty details for part number 121.44070 should be confirmed with the supplier, Centric typically offers limited warranties covering defects in materials and workmanship. Proper installation and maintenance are essential to maximize rotor lifespan and performance.
