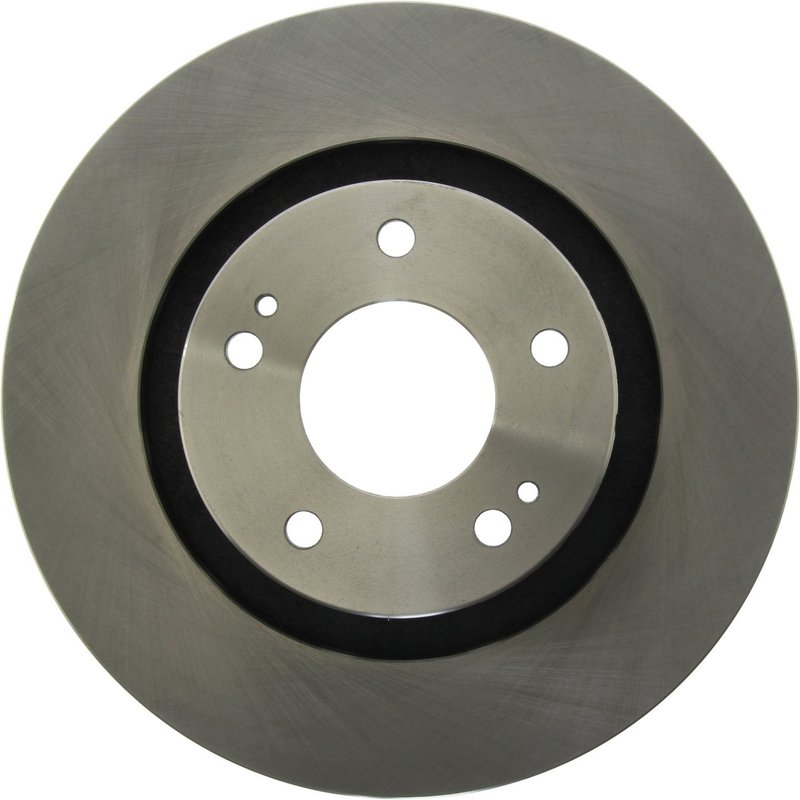

Centric 121.46071 Disc Brake Rotor - Front

Overview of Centric C-TEK Standard Disc Brake Rotor 121.46071

The Centric C-TEK Standard Disc Brake Rotor 121.46071 is engineered for reliable braking performance on Mitsubishi Outlander and Outlander PHEV models. Designed as a vented rotor with a smooth surface, it offers consistent heat dissipation and durability for everyday driving conditions.

• Compatible with Mitsubishi Outlander and Outlander PHEV
• Part number 121.46071 for precise identification
• Vented disc brake rotor design for improved cooling
• Nominal thickness of 0.945 inches (24.000 mm)
• Outside diameter of 11.575 inches (294.000 mm)
• Floating disc mounting with 5 lug holes (0.496 inches diameter)
• Smooth surface type for standard braking applications
• Overall height of 1.807 inches (45.900 mm)

Details on C-TEK Standard Disc Brake Rotors Product Line

The C-TEK Standard Disc Brake Rotors line by Centric focuses on delivering dependable, OE-quality replacement rotors. This product line emphasizes consistent manufacturing standards and material quality to meet the braking requirements of specific vehicle models. The 121.46071 rotor maintains these standards, providing a vented rotor design that supports effective heat management and long service life for Mitsubishi Outlander and Outlander PHEV vehicles.

Technical Specifications and Features

This disc brake rotor features a vented design with straight vanes to enhance airflow and reduce heat buildup during braking. The rotor has a nominal thickness of 0.945 inches (24.000 mm) and a discard thickness of 0.882 inches (22.400 mm), indicating the minimum thickness before replacement is necessary. The outside diameter measures 11.575 inches (294.000 mm), and the overall height is 1.807 inches (45.900 mm). It includes a floating disc mounting system with a 5-lug hole pattern, each hole measuring 0.496 inches (12.600 mm) in diameter, and a mounting bolt hole circle diameter of 4.500 inches (114.300 mm). The center hole diameter is 2.717 inches (69.000 mm). This rotor does not include an ABS tone ring or bearings.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Mitsubishi Outlander and Outlander PHEV
• Addresses brake pulsation and vibration issues caused by uneven rotor surfaces
• Restores proper braking performance and pedal feel
• Helps reduce brake fade by improving heat dissipation with vented design
• Suitable for routine maintenance and brake system overhauls

Installation Notes and Tips

Ensure the rotor thickness is measured before installation to confirm it meets or exceeds the nominal thickness of 0.945 inches (24.000 mm). Clean the rotor surface to remove any protective coatings or contaminants prior to mounting. Verify the 5-lug hole pattern and mounting bolt circle diameter match the vehicle specifications. Since this rotor does not include bearings or an ABS tone ring, reuse existing components or replace separately as needed. Proper torque specifications should be followed when securing the rotor to avoid warping.

Quality Assurance and Warranty

Centric's C-TEK Standard Disc Brake Rotors are manufactured to meet or exceed OEM standards for fit, form, and function. While specific warranty details for part number 121.46071 are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Buyers should consult product documentation or Centric directly for warranty terms applicable to this rotor.
