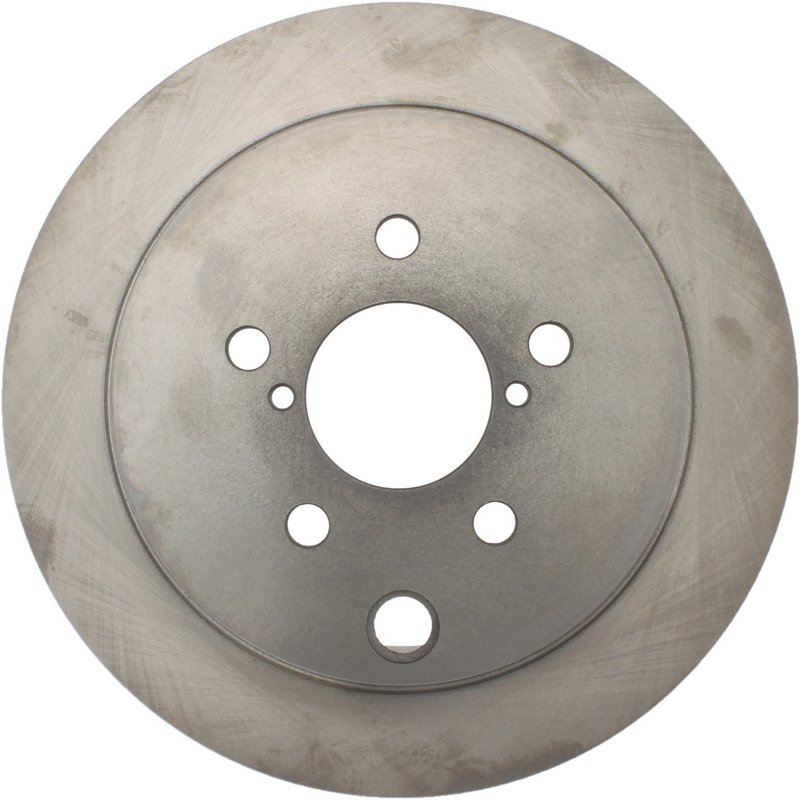

Centric 121.47033 Disc Brake Rotor - Rear

Reliable Disc Brake Rotor for Subaru Vehicles

The Centric C-TEK Standard Disc Brake Rotor 121.47033 is engineered to provide consistent braking performance for Subaru models including Crosstrek, Forester, Impreza, and XV Crosstrek. Designed as a solid rotor with a smooth surface, it meets the specifications required for safe and effective stopping power.

• Compatible with Subaru Crosstrek, Forester, Impreza, and XV Crosstrek
• Part number 121.47033 for precise identification
• Solid disc brake rotor with smooth surface finish
• Outside diameter of 10.772 inches (273.6 mm)
• Nominal thickness of 0.394 inches (10.0 mm) and discard thickness of 0.335 inches (8.5 mm)
• Overall height of 2.504 inches (63.6 mm)
• Five lug holes with 0.512 inch (13 mm) diameter and 3.937 inch (100 mm) bolt circle diameter
• Center hole diameter of 2.283 inches (58 mm)
• Weight approximately 10.75 lbs (4.8 kg)

About the C-TEK Standard Disc Brake Rotors Line

The C-TEK Standard Disc Brake Rotors line by Centric offers rotors designed to meet OEM specifications for standard braking applications. This product line focuses on delivering reliable, consistent performance with solid rotors that feature smooth surfaces to ensure proper pad contact and wear. The 121.47033 rotor is part of this line, providing a direct replacement option for Subaru vehicles requiring a solid rotor design without ABS tone rings or additional hardware.

Technical Details and Specifications

This disc brake rotor features a solid construction with a smooth surface type, optimized for standard braking systems. The rotor measures 10.772 inches in outside diameter and has a nominal thickness of 0.394 inches, with a discard thickness of 0.335 inches, indicating when replacement is necessary. The overall height is 2.504 inches, and it includes five lug holes sized at 0.512 inches diameter arranged on a 3.937 inch bolt circle diameter. The center hole diameter is 2.283 inches, ensuring proper fitment on compatible Subaru hubs. This rotor does not include an ABS tone ring or bearings, so it is intended for vehicles without those requirements.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Subaru Crosstrek, Forester, Impreza, and XV Crosstrek
• Addresses brake pulsation or vibration issues caused by uneven rotor surfaces
• Restores proper braking performance when rotor thickness falls below discard limits
• Eliminates noise or squealing related to rotor surface damage
• Ensures safe stopping distances by maintaining OEM rotor specifications

Installation Notes and Tips

Ensure the rotor surface is clean and free of debris before installation. Verify that the rotor thickness is within nominal specifications and replace if below discard thickness. This rotor is designed for vehicles without ABS tone rings; confirm compatibility with your vehicle’s braking system. Use proper torque specifications for lug nuts and inspect related components such as brake pads and calipers during installation.

Quality Assurance and Warranty

Centric’s C-TEK Standard Disc Brake Rotors are manufactured to meet or exceed OEM standards for fit, form, and function. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. Refer to Centric’s official documentation for complete warranty information.
