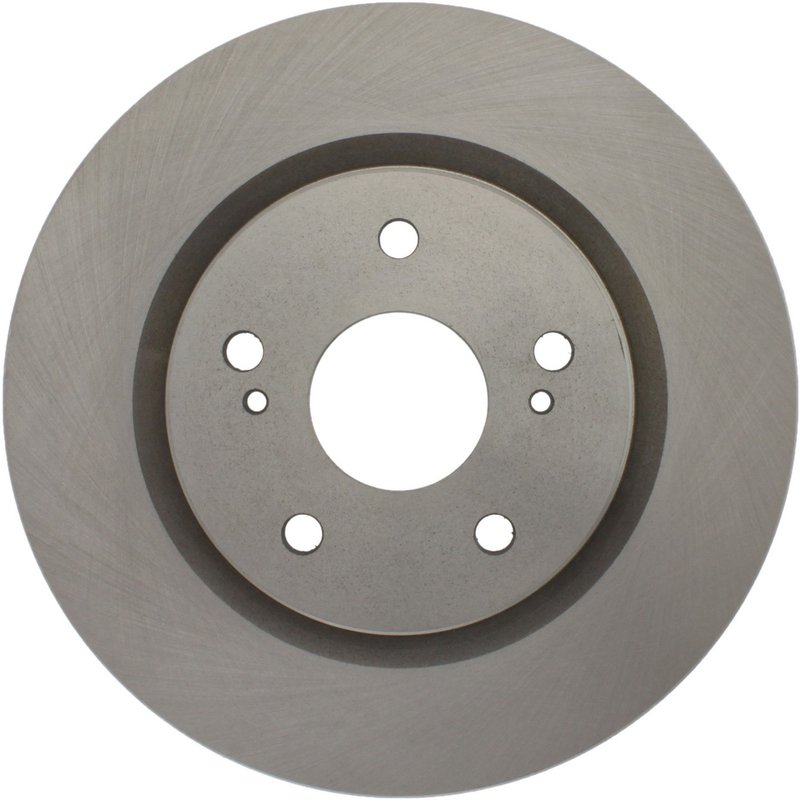

Centric 121.48011 Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Suzuki Grand Vitara

The Centric C-TEK Standard Disc Brake Rotor 121.48011 is engineered to meet the braking demands of Suzuki Grand Vitara vehicles. Designed with precision, this vented rotor offers consistent performance and durability for everyday driving conditions.

• Compatible with Suzuki Grand Vitara models
• Part number 121.48011 for exact fitment
• Vented disc design for improved heat dissipation
• Nominal thickness of 0.984 inches (25.000 mm)
• Outside diameter of 11.598 inches (294.600 mm)
• Overall height of 1.937 inches (49.200 mm)
• Floating disc mounting for enhanced rotor stability
• Smooth surface type for consistent pad contact
• Five lug holes with 0.500 inch (12.700 mm) diameter

About the C-TEK Standard Disc Brake Rotors Line

The C-TEK Standard Disc Brake Rotors line by Centric is designed to provide reliable, OEM-quality replacement rotors that meet or exceed factory specifications. This product line focuses on delivering rotors with precise dimensions and consistent surface finishes, ensuring proper brake pad engagement and long service life. The 121.48011 rotor exemplifies these qualities with its vented design and floating disc mounting, tailored for Suzuki Grand Vitara applications.

Product Specifications and Features

This disc brake rotor features a vented design with straight vanes to optimize airflow and heat dissipation during braking. The nominal thickness measures 0.984 inches (25.000 mm), with a discard thickness of 0.906 inches (23.000 mm), indicating when replacement is necessary. The rotor’s outside diameter is 11.598 inches (294.600 mm), and it has an overall height of 1.937 inches (49.200 mm). The center hole diameter is 2.433 inches (61.800 mm), and it includes five lug holes each measuring 0.500 inches (12.700 mm) in diameter, arranged on a 4.488 inch (114.000 mm) bolt circle diameter. The rotor weighs approximately 15.1 lbs (6.86 kgs) and features a smooth surface type for consistent braking performance. Note that this rotor does not include an ABS tone ring or bearings.

Common Issues Addressed by This Rotor

• Brake pulsation caused by warped rotors
• Reduced braking efficiency due to worn rotor thickness
• Overheating and brake fade from insufficient heat dissipation
• Uneven brake pad wear linked to rotor surface irregularities
• Noise and vibration during braking from damaged rotors

Installation Notes and Tips

• Ensure rotor discard thickness is not exceeded before installation
• Clean rotor surface to remove any protective coatings or debris
• Check compatibility with Suzuki Grand Vitara model year and specifications
• Torque lug nuts to manufacturer specifications to avoid rotor warping
• Inspect brake pads and replace if worn to ensure optimal rotor performance

Quality Assurance and Warranty

Centric’s C-TEK Standard Disc Brake Rotors are manufactured to meet strict quality standards, ensuring dimensional accuracy and material integrity. While specific warranty details for part number 121.48011 should be confirmed at the point of purchase, Centric typically offers coverage against defects in materials and workmanship under normal use conditions.
