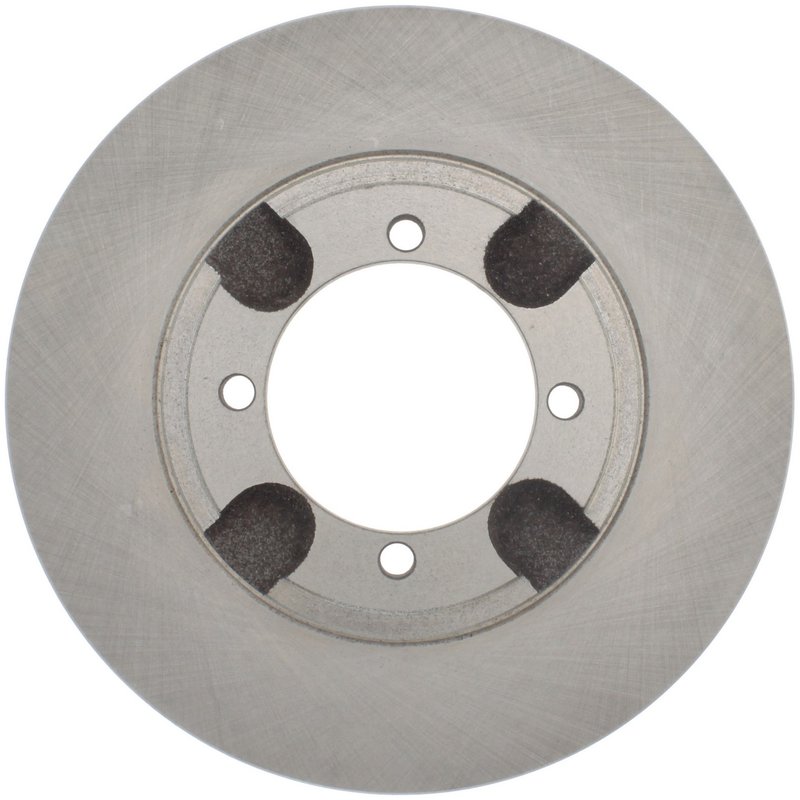

Centric 121.51003 Disc Brake Rotor - Front

Overview of Centric C-TEK Standard Disc Brake Rotor 121.51003

The Centric C-TEK Standard Disc Brake Rotor 121.51003 is engineered for reliable braking performance on Hyundai Elantra and Tiburon models. Designed to meet OEM specifications, this vented rotor ensures consistent heat dissipation and smooth braking under various driving conditions.

• Compatible with Hyundai Elantra and Tiburon vehicles
• Vented disc brake rotor design for improved cooling
• Overall diameter of 10.118 inches (257 mm) for precise fitment
• Nominal thickness of 0.866 inches (22 mm) with discard thickness at 0.787 inches (20 mm)
• Four mounting bolt holes with a 4.094 inch (104 mm) bolt circle diameter
• Smooth surface type for consistent pad contact
• Center hole diameter of 3.386 inches (86 mm) for proper hub alignment
• Weight approximately 11.5 lbs (5.23 kgs) for balanced performance

Product Line Details: C-TEK Standard Disc Brake Rotors

The C-TEK Standard Disc Brake Rotors line by Centric offers rotors manufactured to meet or exceed OEM standards. This product line focuses on providing reliable, direct replacement rotors with vented designs to enhance heat dissipation and reduce brake fade. The 121.51003 rotor maintains the original equipment specifications for Hyundai Elantra and Tiburon models, ensuring proper fit and function without modification.

Technical Specifications and Features

This disc brake rotor features a vented design with straight vanes to optimize airflow and cooling during braking. The smooth surface finish promotes even brake pad wear and consistent stopping power. With an overall height of 1.339 inches (34 mm), the rotor mounts behind the hub using four bolt holes sized at 0.417 inches (10.6 mm) diameter. The center hole diameter of 3.386 inches (86 mm) ensures accurate centering on the hub assembly. The nominal thickness of 0.866 inches (22 mm) and discard thickness of 0.787 inches (20 mm) provide clear service limits for maintenance and replacement.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Addressing rotor thickness below manufacturer discard limits
• Improving heat dissipation to reduce brake fade on Hyundai Elantra and Tiburon
• Restoring smooth braking performance with OEM-spec rotor dimensions
• Resolving uneven pad wear due to rotor surface irregularities

Installation Notes and Tips

Ensure the rotor mounting surface and hub are clean and free of rust or debris before installation. Verify the rotor thickness is within discard limits before mounting. Use proper torque specifications for the four mounting bolts to secure the rotor behind the hub. It is recommended to replace brake pads simultaneously to maintain optimal braking performance. Check for ABS sensor clearance as this rotor does not include an ABS tone ring.

Quality Assurance and Warranty

Centric C-TEK Standard Disc Brake Rotors are manufactured to meet OEM quality standards, providing consistent performance and durability. While specific warranty details are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Always consult product documentation or manufacturer resources for complete warranty information.
