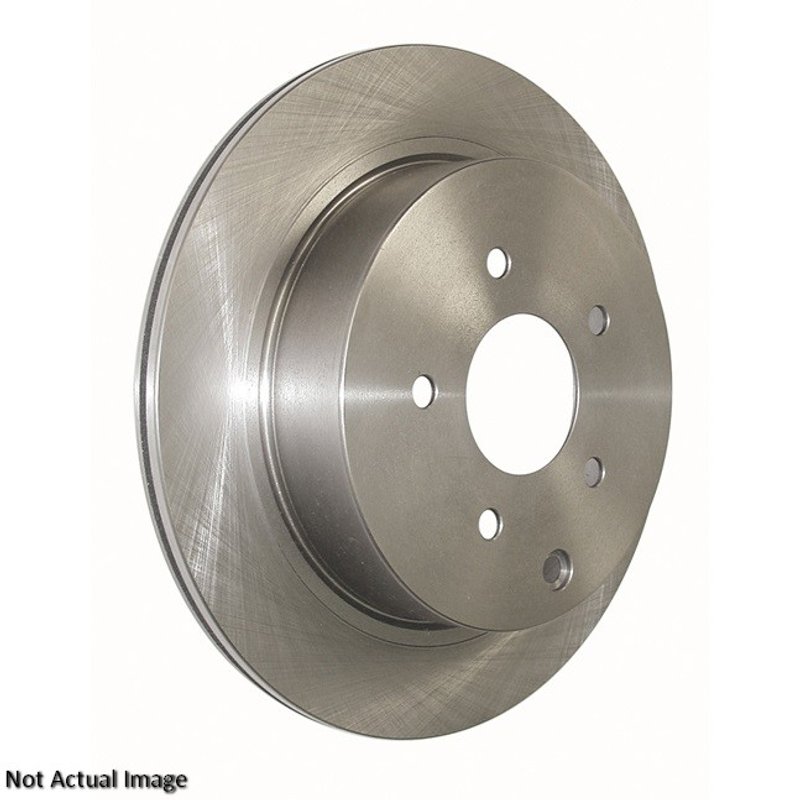

Centric 121.51065 Disc Brake Rotor - Rear

Overview of Centric C-TEK Standard Disc Brake Rotor 121.51065

The Centric C-TEK Standard Disc Brake Rotor 121.51065 is engineered for reliable braking performance on the Hyundai Veloster N. Designed as a solid, smooth-surface rotor, it provides consistent stopping power and durability for daily driving conditions.

• Compatible with Hyundai Veloster N models
• Solid disc brake rotor with smooth surface finish
• Outside diameter: 12.992 inches (330 mm)
• Nominal thickness: 0.472 inches (12 mm); discard thickness: 0.394 inches (10 mm)
• Overall height: 1.307 inches (33.2 mm)
• Floating disc mounting design
• 5 lug holes with 0.492 inch (12.5 mm) diameter
• Mounting bolt hole circle diameter: 4.5 inches (114.3 mm)
• Center hole diameter: 2.992 inches (76 mm)
• Straight vane style for heat dissipation
• Weight approximately 11.7 lbs (5.32 kgs)

Product Line Details: C-TEK Standard Disc Brake Rotors

The C-TEK Standard Disc Brake Rotors line by Centric offers rotors designed to meet or exceed OEM specifications for fit, form, and function. This product line focuses on providing solid rotors with smooth surfaces that ensure consistent brake pad contact and reliable braking performance. The 121.51065 rotor is part of this line, delivering a balance of durability and performance suitable for the Hyundai Veloster N.

Technical Specifications and Features

This disc brake rotor features a solid construction with a smooth surface type, which helps maintain even pad wear and consistent braking feel. The rotor measures 12.992 inches in outside diameter and has a nominal thickness of 0.472 inches, with a discard thickness of 0.394 inches, indicating when replacement is necessary. The overall height is 1.307 inches, and it includes a floating disc mounting design to accommodate thermal expansion and reduce stress. The rotor has five lug holes with a diameter of 0.492 inches and a mounting bolt hole circle diameter of 4.5 inches, ensuring proper fitment on the Hyundai Veloster N. The straight vane style promotes effective heat dissipation during braking.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Hyundai Veloster N
• Addresses brake pulsation and vibration issues
• Restores braking performance and pedal feel
• Prevents brake fade under normal driving conditions
• Ensures proper rotor thickness for safe braking

Installation Notes and Tips

When installing the Centric C-TEK Standard Disc Brake Rotor 121.51065, ensure the rotor surface is clean and free of any contaminants before mounting. Verify the rotor thickness is above the discard thickness specification of 0.394 inches to maintain safety and performance. Use proper torque specifications for the 5 lug nuts and mounting bolts to avoid rotor warping. This rotor does not include ABS tone rings or bearings, so reuse existing components if applicable. The floating disc mounting design requires careful alignment during installation.

Quality Assurance and Warranty

Centric manufactures the C-TEK Standard Disc Brake Rotors to meet OEM standards for quality and durability. While specific warranty details are not provided here, Centric products typically come with a limited warranty against defects in materials and workmanship. The 121.51065 rotor is designed to provide consistent braking performance for the Hyundai Veloster N when installed and maintained properly.
