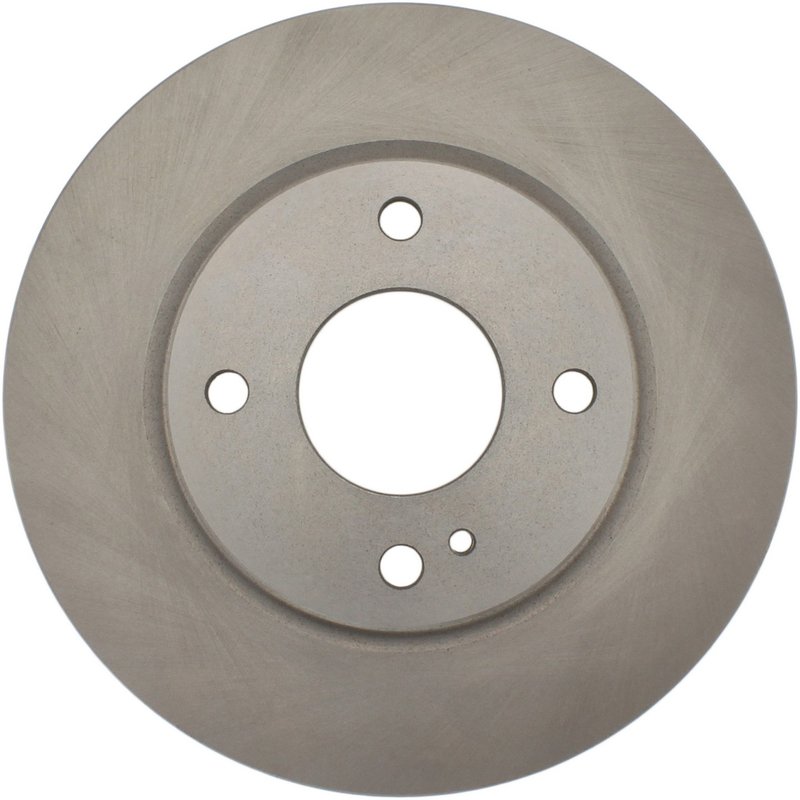

Centric 121.61096 Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Ford Fiesta

The Centric 121.61096 disc brake rotor is engineered to meet the braking demands of the Ford Fiesta. Designed with precision, this vented rotor ensures consistent performance and durability for everyday driving conditions.

• Compatible with Ford Fiesta models
• Part number 121.61096 for exact fitment
• Vented rotor design for improved heat dissipation
• Nominal thickness of 0.906 inches (23.000 mm)
• Outside diameter of 10.157 inches (258.000 mm)
• Floating disc mounting for enhanced rotor stability
• Smooth surface type for optimal pad contact
• Includes 4 stud/lug holes with 0.512 inch (13.000 mm) diameter

About the C-TEK Standard Disc Brake Rotors Line

The C-TEK Standard Disc Brake Rotors line by Centric offers a balance of quality and value for standard braking applications. This product line focuses on delivering rotors that meet OEM specifications, including precise dimensions and vented designs to maintain proper cooling. The 121.61096 rotor fits within this line, providing reliable braking performance for the Ford Fiesta without additional features like ABS tone rings or included bearings.

Product Specifications and Features

This Centric disc brake rotor features a vented design with 41 straight vanes, promoting effective heat dissipation during braking. The rotor has a nominal thickness of 0.906 inches (23.000 mm) and a discard thickness of 0.827 inches (21.000 mm), ensuring a clear service life indicator. The overall height measures 1.728 inches (43.900 mm), and the outside diameter is 10.157 inches (258.000 mm). The rotor mounts using a floating disc mounting system and includes a center hole diameter of 2.500 inches (63.500 mm) with a mounting bolt hole circle diameter of 4.252 inches (108.000 mm). The rotor weighs approximately 13.05 lbs (5.94 kgs), balancing durability and weight for the Ford Fiesta's braking system.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Ford Fiesta vehicles
• Addresses brake pulsation and vibration issues
• Improves braking consistency and pedal feel
• Restores proper rotor thickness for safe braking
• Helps reduce overheating and brake fade during normal driving

Installation Notes and Tips

Ensure the rotor surface is clean and free of debris before installation. Verify the rotor thickness is above the discard thickness of 0.827 inches (21.000 mm) to maintain safety standards. This rotor does not include bearings or an ABS tone ring, so confirm compatibility with your vehicle’s braking system. Use proper torque specifications on the 4 lug holes (0.512 inch diameter) to secure the rotor. It is recommended to replace brake pads simultaneously for optimal performance.

Quality Assurance and Warranty

Centric's C-TEK Standard Disc Brake Rotors are manufactured to meet or exceed OEM standards, ensuring reliable fit and function. While specific warranty details for part number 121.61096 are not provided here, Centric typically offers coverage against defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
