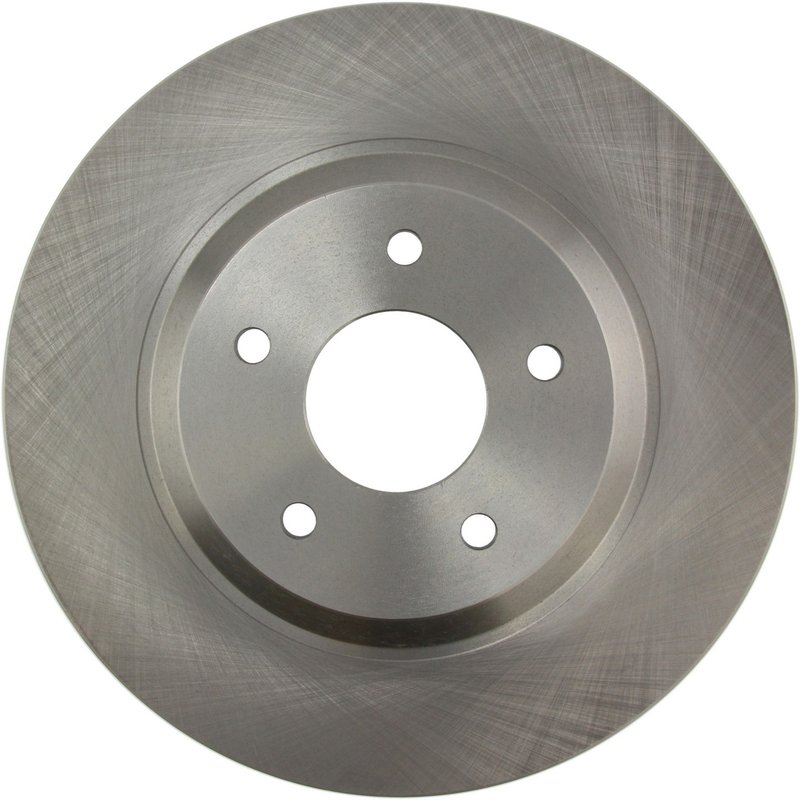

Centric 121.62046 Disc Brake Rotor - Front Left

Overview of Centric C-TEK Standard Disc Brake Rotor 121.62046

The Centric C-TEK Standard Disc Brake Rotor 121.62046 is engineered for Chevrolet Corvette models requiring reliable braking performance. This vented rotor features a smooth surface and floating disc mounting, designed to maintain consistent stopping power under various driving conditions.

• Compatible with Chevrolet Corvette vehicles
• Part number 121.62046 for precise identification
• Vented rotor design with curved vane style for improved heat dissipation
• Nominal thickness of 1.102 inches (28.000 mm) and discard thickness of 1.039 inches (26.400 mm)
• Overall height of 2.201 inches (55.900 mm) and outside diameter of 12.992 inches (330.000 mm)
• Floating disc mounting with 5 lug holes, each 0.516 inches (13.100 mm) in diameter
• Center hole diameter of 2.780 inches (70.600 mm) and mounting bolt hole circle diameter of 4.752 inches (120.700 mm)
• Weight approximately 20.5 lbs (9.32 kgs)
• ABS tone ring not included; bearings not included

About the C-TEK Standard Disc Brake Rotors Line

The C-TEK Standard Disc Brake Rotors line by Centric offers rotors designed to meet or exceed OEM specifications for standard braking applications. This product line focuses on delivering consistent performance with quality materials and precise manufacturing tolerances. The 121.62046 rotor fits within this line, providing Chevrolet Corvette owners with a dependable replacement rotor that maintains factory fit and function.

Technical Details and Features

This disc brake rotor features a vented design with curved vanes that enhance airflow and heat dissipation, reducing the risk of brake fade during extended use. The smooth surface finish ensures even pad contact and wear. The floating disc mounting allows for slight movement to accommodate thermal expansion and improve rotor longevity. With a nominal thickness of 1.102 inches and a discard thickness of 1.039 inches, this rotor provides a clear service life indicator for maintenance scheduling.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Chevrolet Corvette models
• Addresses brake pulsation and vibration issues caused by uneven rotor surfaces
• Improves heat management to reduce brake fade during aggressive driving
• Restores proper rotor thickness to maintain braking efficiency and safety
• Suitable for vehicles experiencing rotor cracking or scoring

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness before installation
• Clean rotor surface to remove any protective coatings or debris
• Verify compatibility with Chevrolet Corvette model year and specifications
• Torque lug nuts to manufacturer specifications to avoid rotor warping
• Check brake pads for wear and replace if necessary during rotor installation

Quality Assurance and Warranty

Centric C-TEK Standard Disc Brake Rotors are manufactured to meet OEM standards, ensuring reliable performance and durability. While specific warranty details for part number 121.62046 should be confirmed with the supplier, Centric typically offers coverage against defects in materials and workmanship. Proper installation and maintenance are essential to maximize rotor lifespan and performance.
