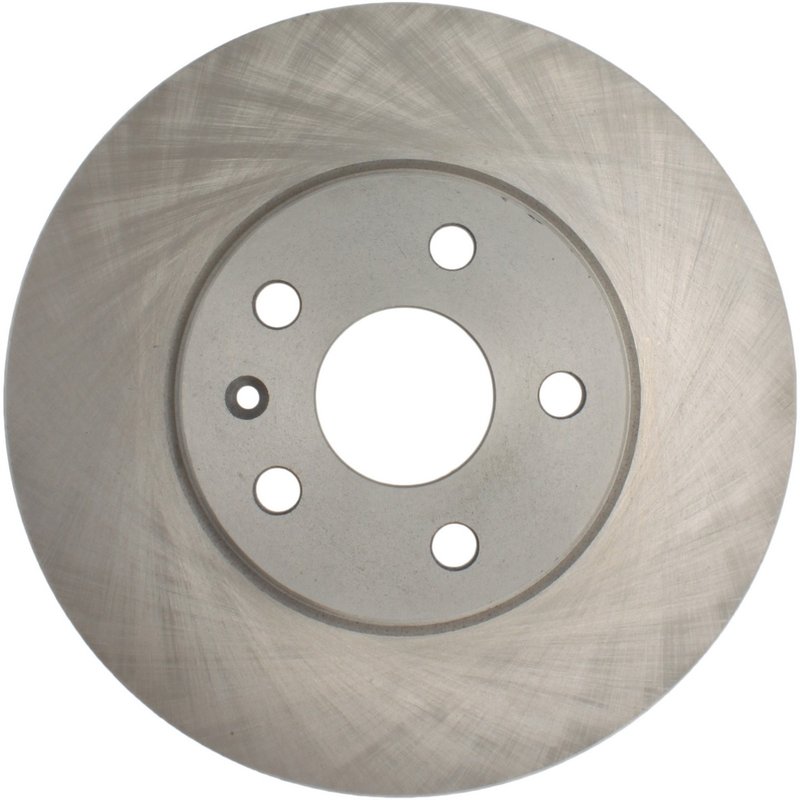

Centric 121.62106 Disc Brake Rotor - Front

Overview of Centric C-TEK Standard Disc Brake Rotor 121.62106

The Centric C-TEK Standard Disc Brake Rotor 121.62106 is engineered for reliable braking performance on Cadillac CTS models. Designed as a vented rotor with a smooth surface, it offers consistent heat dissipation and stable stopping power under various driving conditions.

• Compatible with Cadillac CTS vehicles
• Vented disc brake rotor design for improved cooling
• Overall diameter of 12.441 inches (316 mm)
• Nominal thickness of 1.181 inches (30 mm) with discard thickness at 1.122 inches (28.5 mm)
• Floating disc mounting with straight vane style for efficient airflow
• 5 lug holes with a bolt circle diameter of 120 mm (4.724 inches)
• Center hole diameter of 2.654 inches (67.4 mm)
• Weight approximately 17.3 lbs (7.86 kgs)
• ABS tone ring not included

About the C-TEK Standard Disc Brake Rotors Line

The C-TEK Standard Disc Brake Rotors line by Centric focuses on delivering dependable, OE-quality replacement rotors. This product line emphasizes precise fitment and consistent performance, making it suitable for routine maintenance and brake system repairs on vehicles like the Cadillac CTS. The rotors feature vented construction and smooth surfaces to maintain braking efficiency and rotor longevity.

Detailed Product Description

This Centric disc brake rotor 121.62106 is designed with a vented rotor type that incorporates straight vanes to enhance airflow and heat dissipation during braking. The rotor’s nominal thickness of 1.181 inches (30 mm) ensures structural integrity, while the discard thickness of 1.122 inches (28.5 mm) indicates the minimum safe thickness before replacement is necessary. The overall height measures 2.008 inches (51 mm), and the rotor mounts using a floating disc system, which helps reduce stress and improve braking smoothness. The 5-lug hole pattern with a 120 mm bolt circle diameter and 0.654 inch (16.6 mm) lug hole diameter matches the specifications required for Cadillac CTS models. This rotor does not include bearings or an ABS tone ring, so those components must be sourced separately if needed.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Cadillac CTS vehicles
• Addresses brake pulsation caused by uneven rotor surfaces
• Restores proper rotor thickness for safe braking performance
• Improves heat dissipation to reduce brake fade during extended use
• Suitable for routine brake system maintenance and repairs

Installation Notes and Tips

• Verify rotor dimensions and bolt pattern compatibility with your Cadillac CTS before installation
• Ensure the rotor surface is clean and free of debris prior to mounting
• Use proper torque specifications on lug nuts to avoid rotor warping
• Check brake pads for wear and replace if necessary when installing new rotors
• Bleed brake system if any hydraulic components are disturbed during installation

Quality Assurance and Warranty

Centric provides quality-tested disc brake rotors manufactured to meet or exceed OEM specifications. The C-TEK Standard Disc Brake Rotors line undergoes rigorous inspection to ensure dimensional accuracy and material integrity. While specific warranty details for part number 121.62106 should be confirmed with the supplier, Centric typically offers limited warranties covering defects in materials and workmanship.
