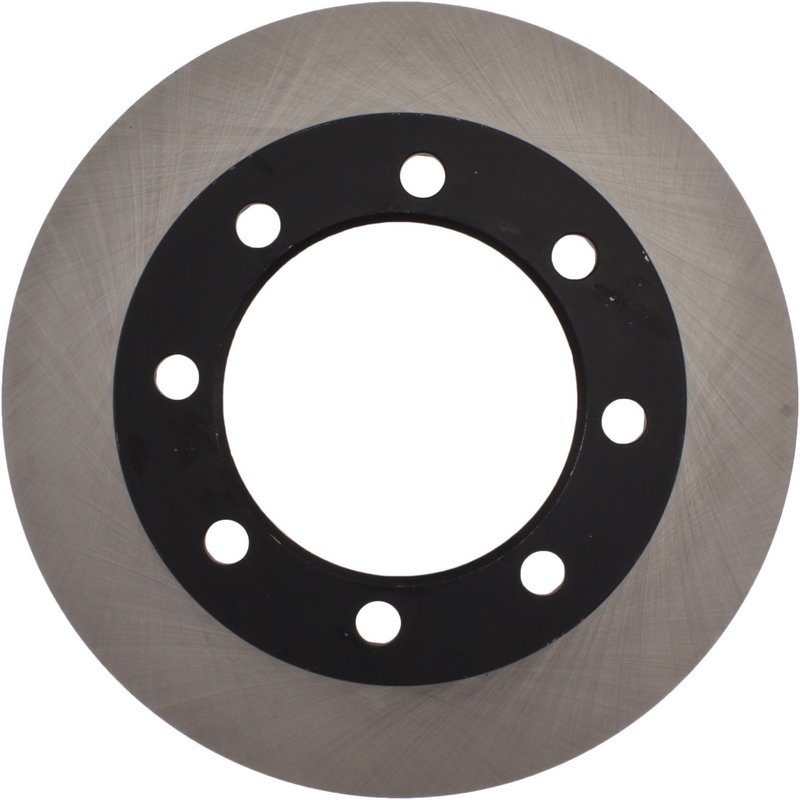

Centric 121.63023 Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Dodge W-Series Trucks

The Centric C-TEK Standard Disc Brake Rotor 121.63023 is engineered to meet the braking demands of Dodge W200, W250, and W350 models. Designed with precision, this vented rotor ensures consistent performance and durability under various driving conditions.

• Compatible with Dodge W200, W250, and W350 trucks
• Part number 121.63023 for accurate fitment
• Vented rotor design with straight vane style for improved heat dissipation
• Overall diameter of 12.823 inches (325.7 mm) and overall height of 3.276 inches (83.2 mm)
• Nominal thickness of 1.189 inches (30.2 mm) with discard thickness at 1.126 inches (28.6 mm)
• Eight mounting bolt holes with a bolt circle diameter of 6.5 inches (165.1 mm)
• Smooth surface type for consistent pad contact
• Center hole diameter of 5.13 inches (130.3 mm) for proper hub alignment
• Weight approximately 20.5 lbs (9.32 kgs)

About the C-TEK Standard Disc Brake Rotors Line

The C-TEK Standard Disc Brake Rotors line by Centric offers reliable, OEM-quality replacement rotors designed to meet factory specifications. This product line focuses on providing vented rotors with smooth surfaces and straight vane designs to optimize heat dissipation and braking performance. The 121.63023 rotor is part of this line, ensuring compatibility and consistent braking for Dodge W-Series trucks.

Product Details and Specifications

This disc brake rotor features a vented design with straight vanes that help reduce heat buildup during braking, which is critical for maintaining braking efficiency and rotor longevity. The smooth surface type ensures even pad wear and consistent braking feel. With an overall diameter of 12.823 inches and a nominal thickness of 1.189 inches, this rotor fits securely behind the hub, supported by eight mounting bolt holes arranged on a 6.5-inch bolt circle diameter. The center hole diameter of 5.13 inches ensures proper centering on the hub, reducing vibration and noise.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Dodge W200, W250, and W350 trucks
• Addresses brake pulsation caused by uneven rotor thickness
• Improves braking performance by restoring proper rotor thickness and surface condition
• Helps reduce brake noise and vibration associated with damaged rotors
• Supports safe braking under heavy load or towing conditions

Installation Notes and Tips

• Ensure rotor discard thickness of 1.126 inches is not exceeded before installation
• Clean mounting surfaces and hub to prevent rotor runout
• Torque mounting bolts to manufacturer specifications for secure fitment
• Check brake pads for wear and replace if necessary to ensure optimal contact
• Perform a bed-in procedure after installation to maximize braking performance

Quality Assurance and Warranty

Centric C-TEK Standard Disc Brake Rotors are manufactured to meet or exceed OEM standards, providing reliable performance and durability. While specific warranty details for part number 121.63023 should be confirmed with the supplier, Centric typically offers limited warranties covering defects in materials and workmanship.
