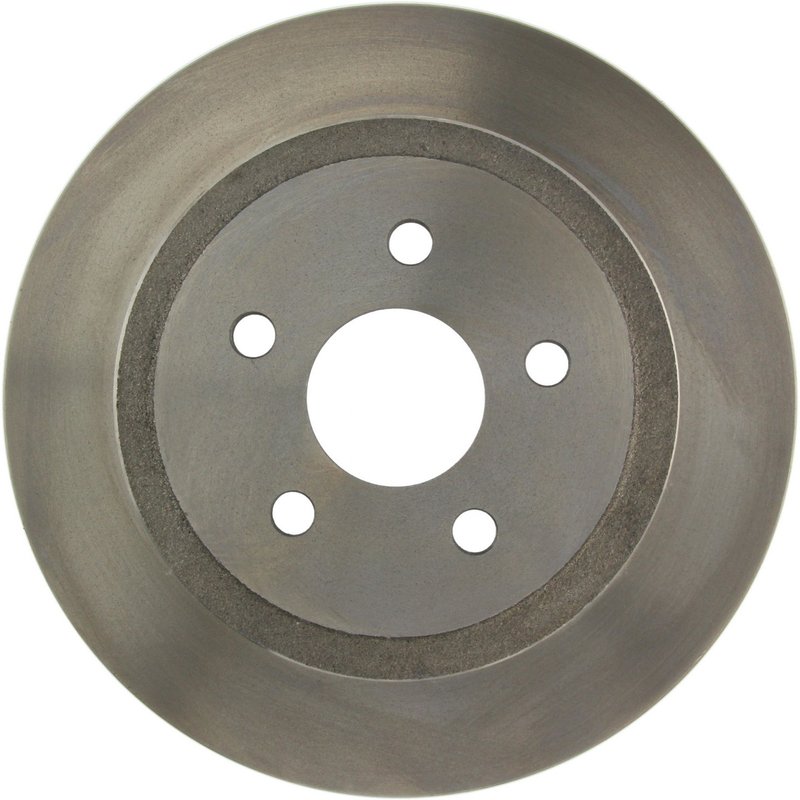

Centric 121.63029 Disc Brake Rotor - Rear

Reliable Disc Brake Rotor for Chrysler, Dodge, Plymouth, and Pontiac

The Centric C-TEK Standard Disc Brake Rotor 121.63029 offers a precise replacement solution for various Chrysler, Dodge, Plymouth, and Pontiac models. Designed to meet OEM specifications, this solid rotor ensures consistent braking performance and durability.

• Part Number: 121.63029
• Brand Line: C-TEK Standard Disc Brake Rotors
• Solid disc brake rotor with smooth surface finish
• Outside diameter: 10.622 inches (269.8 mm)
• Nominal thickness: 0.472 inches (12.0 mm)
• Discard thickness: 0.409 inches (10.4 mm)
• Overall height: 2.012 inches (51.1 mm)
• Center hole diameter: 2.260 inches (57.4 mm)
• Mounting bolt hole circle diameter: 100 mm (3.937 inches)
• Stud/Lug hole quantity: 5 with 0.551 inch (14 mm) diameter
• Weight: 11 lbs (5 kg)
• ABS tone ring not included

Product Line Overview: C-TEK Standard Disc Brake Rotors

The C-TEK Standard Disc Brake Rotors line by Centric is engineered to provide reliable, direct-fit replacements for original equipment rotors. This product line focuses on solid rotors with smooth surfaces, designed to maintain consistent braking performance and meet factory specifications. The 121.63029 rotor is part of this line, offering a durable and precise fit for compatible vehicles without additional features like ABS tone rings or venting.

Detailed Product Description

This Centric disc brake rotor is a solid type rotor with a smooth surface, optimized for vehicles requiring a direct replacement part. The rotor measures 10.622 inches in outside diameter and has a nominal thickness of 0.472 inches, with a discard thickness of 0.409 inches, ensuring safe and effective braking until replacement is necessary. The overall height of 2.012 inches and a center hole diameter of 2.260 inches provide proper alignment and fitment. The rotor mounts with five lug holes spaced on a 100 mm bolt circle diameter, compatible with various Chrysler, Dodge, Plymouth, and Pontiac models including the Acclaim, Daytona, Dynasty, Imperial, LeBaron, New Yorker, Shadow, Spirit, and Sundance.

Common Applications and Issues Addressed

• Replacement for worn or warped rotors causing brake pulsation
• Restores braking performance on Chrysler, Dodge, Plymouth, and Pontiac vehicles
• Eliminates noise and vibration from uneven rotor surfaces
• Addresses rotor thickness below discard limits for safe braking
• Suitable for vehicles without ABS tone ring requirements

Installation Notes and Tips

• Ensure rotor thickness is measured before installation to confirm discard limits
• Clean rotor surface and hub mounting area to prevent uneven wear
• Torque lug nuts to manufacturer specifications for proper fitment
• Check compatibility with vehicle model and year before installation
• Brake pads should be inspected and replaced if worn during rotor replacement

Quality Assurance and Warranty

Centric C-TEK Standard Disc Brake Rotors are manufactured to meet or exceed OEM standards for fit, form, and function. While specific warranty details for part number 121.63029 are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. It is recommended to consult product documentation or the manufacturer for exact warranty terms.
