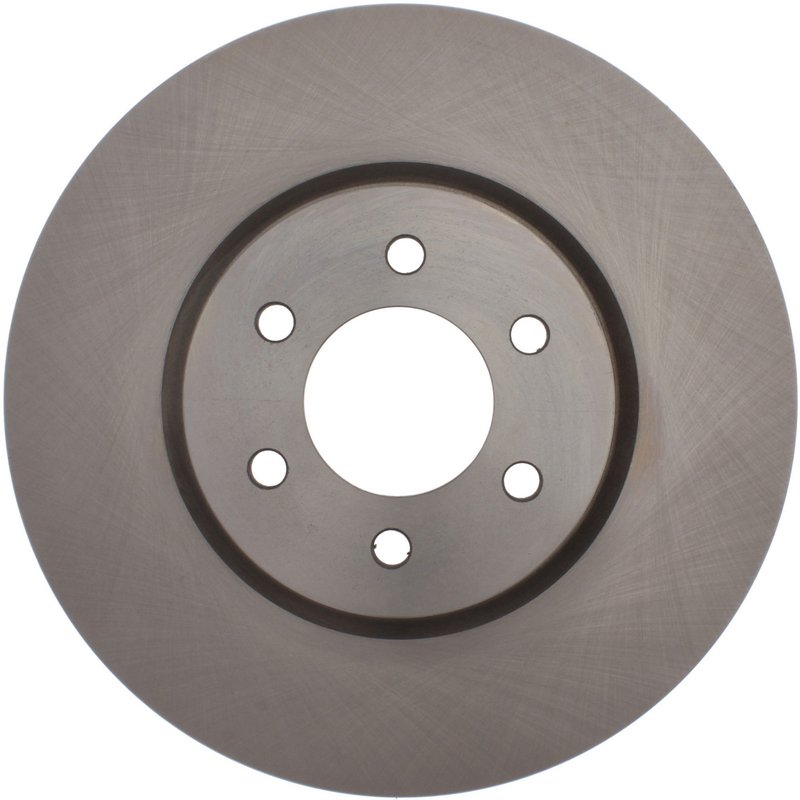

Centric 121.63036 Disc Brake Rotor - Front

Overview of Centric C-TEK Standard Disc Brake Rotor 121.63036

The Centric C-TEK Standard Disc Brake Rotor 121.63036 is engineered for reliable braking performance on Dodge Viper models. Designed as a vented rotor with a smooth surface, it offers consistent heat dissipation and durability for demanding driving conditions.

• Compatible with Dodge Viper vehicles
• Part number 121.63036 for precise identification
• Vented disc brake rotor design for improved cooling
• Nominal thickness of 1.260 inches (32.000 mm)
• Discard thickness at 1.197 inches (30.400 mm)
• Overall height of 2.449 inches (62.200 mm)
• Outside diameter measuring 13.000 inches (330.200 mm)
• Floating disc mounting style with pillar vane design
• 6 stud/lug holes with 0.551 inch (14.000 mm) diameter
• Center hole diameter of 2.894 inches (73.500 mm)
• Mounting bolt hole circle diameter of 4.500 inches (114.300 mm)
• Weight approximately 23 lbs (10.450 kgs)
• ABS tone ring not included

About the C-TEK Standard Disc Brake Rotors Line

The C-TEK Standard Disc Brake Rotors line by Centric offers rotors designed to meet or exceed OEM specifications for standard braking applications. This product line focuses on providing reliable, smooth braking performance with vented rotors that help maintain optimal operating temperatures. The 121.63036 rotor fits within this line, delivering consistent stopping power for Dodge Viper vehicles without additional features such as ABS tone rings or included bearings.

Technical Details and Specifications

This vented disc brake rotor features a smooth surface type that promotes even pad wear and quiet operation. The floating disc mounting style combined with pillar vane design enhances heat dissipation during braking, reducing the risk of rotor warping. The rotor’s nominal thickness is 1.260 inches (32.000 mm), with a discard thickness of 1.197 inches (30.400 mm), indicating when replacement is necessary to maintain safe braking performance. The rotor measures 13.000 inches (330.200 mm) in outside diameter and has an overall height of 2.449 inches (62.200 mm). It includes six stud/lug holes with a diameter of 0.551 inches (14.000 mm) and a mounting bolt hole circle diameter of 4.500 inches (114.300 mm), ensuring proper fitment on compatible Dodge Viper models.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Dodge Viper vehicles
• Improves braking consistency and heat management under heavy use
• Addresses brake pulsation caused by uneven rotor surfaces
• Restores proper rotor thickness to maintain braking efficiency
• Suitable for standard driving conditions requiring OEM-level performance

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 1.197 inches (30.400 mm) before installation. Clean the rotor surface to remove any protective coatings or debris. Verify the rotor’s center hole diameter and mounting bolt hole circle diameter match the vehicle specifications. Since bearings and ABS tone rings are not included, reuse existing components or source separately if needed. Proper torque specifications should be followed when mounting the rotor to avoid warping or uneven wear.

Quality Assurance and Warranty

Centric’s C-TEK Standard Disc Brake Rotors are manufactured to meet OEM standards for fit, form, and function. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. Using part number 121.63036 ensures compatibility and quality for Dodge Viper brake system maintenance.
