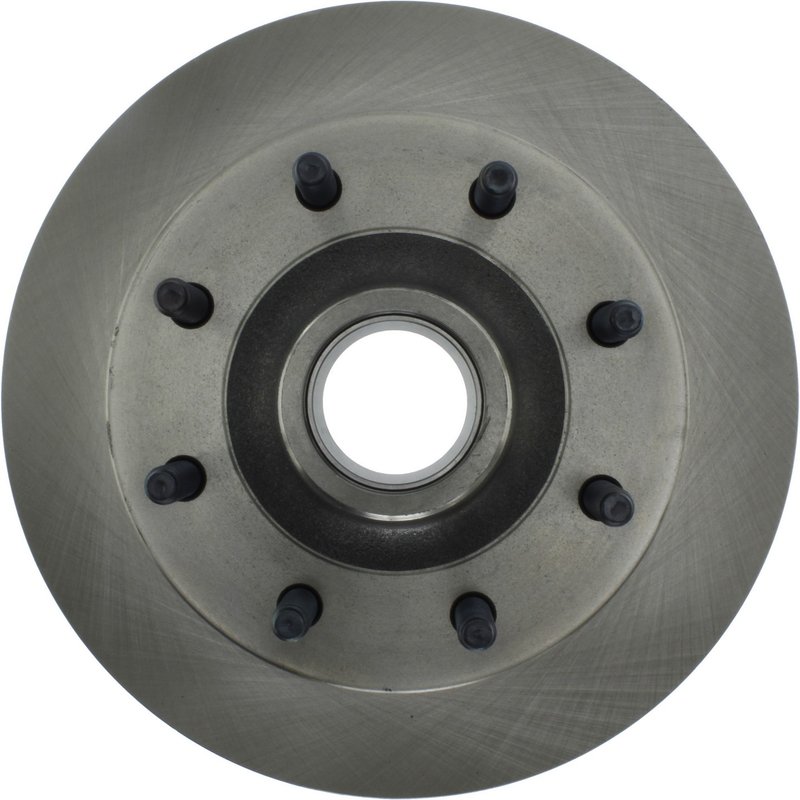

Centric 121.65072 Disc Brake Rotor - Front

Overview of Centric C-TEK Standard Disc Brake Rotor 121.65072

The Centric C-TEK Standard Disc Brake Rotor 121.65072 is engineered for reliable braking performance on Ford F-250 Super Duty and F-350 Super Duty trucks. Designed to meet OEM specifications, this vented rotor provides consistent heat dissipation and durability for heavy-duty applications.

• Compatible with Ford F-250 Super Duty and F-350 Super Duty models
• Part number 121.65072 ensures precise fitment
• Vented rotor design for improved cooling
• Nominal thickness of 1.496 inches (38.000 mm) with discard thickness at 1.417 inches (36.000 mm)
• Outside diameter of 13.031 inches (331.000 mm) for exact replacement
• Hub and rotor disc mounting configuration
• 8 stud/lug hole quantity with 14 mm stud thread diameter
• Smooth surface type for consistent pad contact

Product Line Details: C-TEK Standard Disc Brake Rotors

The C-TEK Standard Disc Brake Rotors line by Centric is designed to provide dependable braking components that meet or exceed OEM standards. This product line focuses on delivering rotors with precise dimensions and quality materials to ensure proper fit and function. The 121.65072 rotor is part of this line, offering vented construction and smooth surfaces to maintain braking efficiency and reduce heat buildup during operation.

Technical Specifications and Features

This disc brake rotor features a vented design with pillar-style vanes to enhance airflow and cooling, which is critical for heavy-duty trucks like the Ford F-250 Super Duty and F-350 Super Duty. The rotor has a nominal thickness of 1.496 inches (38.000 mm) and a discard thickness of 1.417 inches (36.000 mm), indicating when replacement is necessary to maintain safe braking performance. The outside diameter measures 13.031 inches (331.000 mm), and the rotor includes 8 lug holes with a 14 mm stud thread diameter, matching factory specifications. The smooth surface type ensures even brake pad wear and consistent stopping power. This rotor does not include an ABS tone ring or bearings.

Applications and Problem Solving

• Replacement for worn or warped rotors on Ford F-250 Super Duty and F-350 Super Duty
• Addresses brake pulsation caused by uneven rotor surfaces
• Improves heat dissipation to reduce brake fade during heavy towing or hauling
• Restores proper rotor thickness for safe braking performance
• Eliminates noise and vibration related to damaged or undersized rotors

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness before installation
• Clean rotor surface and hub mounting area to prevent uneven contact
• Use proper torque specifications for the 8 lug nuts with 14 mm stud threads
• Check compatibility with existing brake pads and calipers on Ford F-250 and F-350 Super Duty
• Inspect related components such as bearings and seals during installation

Quality Assurance and Warranty

Centric manufactures the C-TEK Standard Disc Brake Rotors to meet strict quality control standards, ensuring consistent performance and durability. While specific warranty details for part number 121.65072 are not provided here, Centric typically offers coverage against defects in materials and workmanship. It is recommended to consult the product documentation or Centric directly for warranty terms related to this rotor.
