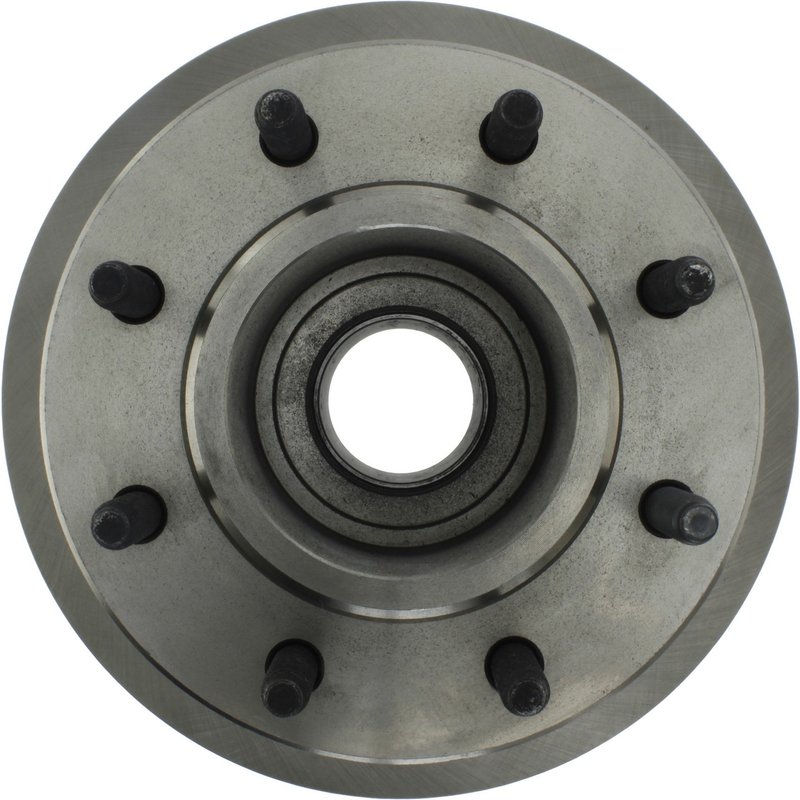

Centric 121.65074 Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Ford F-350 Super Duty

The Centric C-TEK Standard Disc Brake Rotor 121.65074 is engineered to meet the braking demands of the Ford F-350 Super Duty. Designed with precision, this vented rotor ensures consistent performance and durability under heavy-duty conditions.

• Compatible with Ford F-350 Super Duty models
• Part number 121.65074 for exact fitment
• Vented rotor design for improved heat dissipation
• Includes ABS tone ring for sensor compatibility
• Smooth surface type for optimal brake pad contact
• Overall diameter of 331 mm (13.031 inches)
• Nominal thickness of 38 mm (1.496 inches) with discard thickness at 36 mm (1.417 inches)
• Eight stud/lug holes with 14 mm stud thread diameter
• Mounting bolt hole circle diameter of 170 mm (6.693 inches)
• Weight approximately 25.5 kg (56.1 lbs)

About the C-TEK Standard Disc Brake Rotors Line

The C-TEK Standard Disc Brake Rotors line by Centric offers reliable, OEM-quality replacement rotors designed to meet or exceed factory specifications. This product line focuses on providing vented rotors with smooth surfaces and integrated ABS tone rings, ensuring compatibility with modern braking systems and maintaining vehicle safety standards. The 121.65074 rotor is part of this line, delivering consistent braking performance for heavy-duty trucks like the Ford F-350 Super Duty.

Product Details and Specifications

This disc brake rotor features a vented design with pillar-style vanes to enhance cooling and reduce brake fade during demanding use. The rotor's smooth surface ensures even pad wear and quiet operation. It includes an ABS tone ring, which is essential for vehicles equipped with anti-lock braking systems, allowing accurate wheel speed monitoring. The rotor measures 331 mm in outside diameter and 38 mm in nominal thickness, with a discard thickness of 36 mm, indicating when replacement is necessary. The center hole diameter is 125 mm, and the rotor mounts using eight lug holes with a 14 mm stud thread diameter, matching the Ford F-350 Super Duty's specifications.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Upgrading to vented rotors for improved heat dissipation
• Restoring ABS functionality with included tone ring
• Addressing uneven brake pad wear due to rotor surface issues
• Ensuring proper fitment for Ford F-350 Super Duty brake system maintenance

Installation Notes and Tips

Ensure the rotor surface is clean and free of debris before installation. Verify the rotor thickness to confirm it meets minimum specifications. The included ABS tone ring requires careful alignment with the vehicle’s sensor for proper operation. Use appropriate torque settings on the lug nuts to avoid rotor warping. This rotor mounts directly to the hub and rotor assembly, matching OEM mounting bolt patterns and stud sizes.

Quality Assurance and Warranty

Centric’s C-TEK Standard Disc Brake Rotors are manufactured to meet strict quality standards, ensuring durability and reliable braking performance. While specific warranty details for part number 121.65074 are not provided here, Centric typically offers coverage against defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
