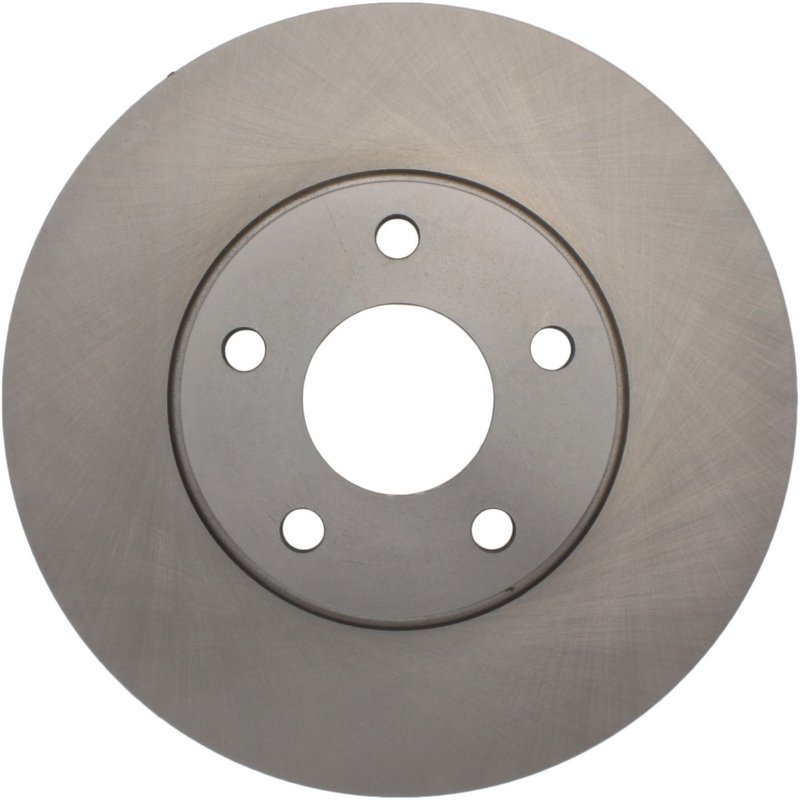

Centric 121.65132 Disc Brake Rotor - Front

Overview of Centric C-TEK Standard Disc Brake Rotor 121.65132

The Centric C-TEK Standard Disc Brake Rotor 121.65132 is engineered for reliable braking performance on Ford Transit Connect vehicles. Designed as a vented rotor with a smooth surface, it offers consistent heat dissipation and durability for everyday driving conditions.

• Compatible with Ford Transit Connect models
• Vented disc brake rotor design for improved cooling
• Nominal thickness of 0.945 inches (24.000 mm)
• Discard thickness at 0.866 inches (22.000 mm)
• Overall height of 1.752 inches (44.500 mm)
• Outside diameter measuring 10.945 inches (278.000 mm)
• Floating disc mounting style
• Straight vane style for efficient airflow
• Five stud/lug holes with 0.543 inch (13.800 mm) diameter
• Center hole diameter of 2.500 inches (63.500 mm)
• Weight approximately 15.85 lbs (7.2 kgs)
• ABS tone ring not included
• No bearings included

About the C-TEK Standard Disc Brake Rotors Line

The C-TEK Standard Disc Brake Rotors line by Centric provides a balance of quality and value for standard braking applications. This product line focuses on delivering rotors that meet OEM specifications with precise dimensions and reliable materials. The 121.65132 rotor fits within this line, offering vented construction and a smooth surface finish to maintain consistent braking performance on the Ford Transit Connect.

Technical Details and Specifications

This disc brake rotor features a vented design with straight vanes to enhance heat dissipation during braking, reducing the risk of brake fade. The nominal thickness of 0.945 inches (24.000 mm) ensures structural integrity, while the discard thickness of 0.866 inches (22.000 mm) indicates the minimum safe thickness before replacement is necessary. The rotor’s overall height is 1.752 inches (44.500 mm), and it has an outside diameter of 10.945 inches (278.000 mm), matching OEM fitment requirements for the Ford Transit Connect. The floating disc mounting style allows for slight movement to reduce stress and improve rotor longevity. The rotor includes five stud/lug holes with a diameter of 0.543 inches (13.800 mm) and a mounting bolt hole circle diameter of 4.252 inches (108.000 mm). This rotor does not include an ABS tone ring or bearings.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Ford Transit Connect
• Addresses brake pulsation and vibration issues
• Improves braking consistency and heat management
• Restores proper rotor thickness for safe braking
• Suitable for routine maintenance and brake system overhauls

Installation Notes and Tips

Ensure the rotor surface is clean and free of debris before installation. Verify the rotor thickness is above the discard thickness specification of 0.866 inches (22.000 mm). Use proper torque specifications for mounting bolts and confirm the floating disc mounting is correctly aligned. Since this rotor does not include bearings or an ABS tone ring, reuse existing components or replace separately as needed. It is recommended to replace brake pads simultaneously to ensure optimal braking performance.

Quality Assurance and Warranty

Centric’s C-TEK Standard Disc Brake Rotors are manufactured to meet or exceed OEM standards for fit, form, and function. While specific warranty details for part number 121.65132 are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
