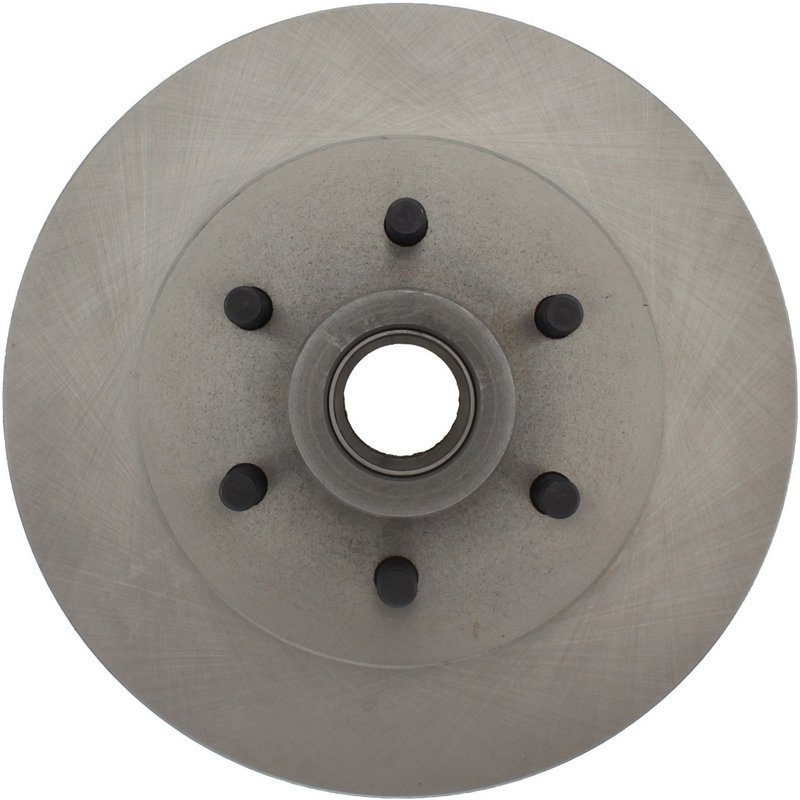

Centric 121.67025 Disc Brake Rotor - Front

Overview of Centric C-TEK Standard Disc Brake Rotor 121.67025

The Centric C-TEK Standard Disc Brake Rotor 121.67025 is engineered for reliable braking performance on Dodge Dakota vehicles. Designed to meet OEM specifications, this vented rotor includes an ABS tone ring and features a smooth surface for consistent pad contact.

• Compatible with Dodge Dakota models
• Part number: 121.67025
• Vented disc brake rotor with smooth surface
• Includes ABS tone ring for enhanced sensor compatibility
• Nominal thickness: 0.945 inches (24.000 mm)
• Discard thickness: 0.890 inches (22.600 mm)
• Outside diameter: 11.303 inches (287.100 mm)
• Overall height: 4.366 inches (110.900 mm)
• 6 stud/lug holes with 0.500 inch stud thread diameter
• Mounting bolt hole circle diameter: 4.500 inches (114.300 mm)

About the C-TEK Standard Disc Brake Rotors Line

The C-TEK Standard Disc Brake Rotors line by Centric offers rotors designed to meet or exceed OEM standards for fit, form, and function. This product line focuses on providing dependable braking components with precise dimensions and quality materials. The 121.67025 rotor is part of this line, ensuring compatibility and performance for Dodge Dakota vehicles requiring vented rotors with ABS tone rings.

Technical Specifications and Features

This disc brake rotor features a vented design with straight vanes to improve heat dissipation during braking. The smooth surface finish promotes even pad wear and consistent braking response. The rotor’s nominal thickness is 0.945 inches (24.000 mm), with a discard thickness of 0.890 inches (22.600 mm), indicating when replacement is necessary. The rotor measures 11.303 inches (287.100 mm) in outside diameter and has an overall height of 4.366 inches (110.900 mm). It includes a 6-lug hole pattern with a 0.500 inch stud thread diameter and a mounting bolt hole circle diameter of 4.500 inches (114.300 mm). The ABS tone ring is integrated to maintain proper sensor function on equipped Dodge Dakota models.

Applications and Problem Solving

• Replacement for worn or warped rotors on Dodge Dakota vehicles
• Restores proper braking performance and pedal feel
• Addresses brake pulsation caused by uneven rotor surfaces
• Ensures ABS sensor compatibility with included tone ring
• Prevents brake fade by improving heat dissipation with vented design

Installation Notes and Tips

• Verify rotor thickness before installation; replace if below discard thickness
• Ensure proper cleaning of rotor surface to remove any protective coatings
• Check compatibility with vehicle’s ABS system due to included tone ring
• Tighten mounting bolts to manufacturer torque specifications
• Inspect related components such as bearings and seals during installation

Quality Assurance and Warranty

Centric C-TEK Standard Disc Brake Rotors are manufactured to meet strict quality standards for durability and performance. While specific warranty details for part number 121.67025 should be confirmed with the supplier, Centric generally offers coverage against defects in materials and workmanship. This rotor is designed to provide consistent braking performance for Dodge Dakota vehicles when installed and maintained properly.
