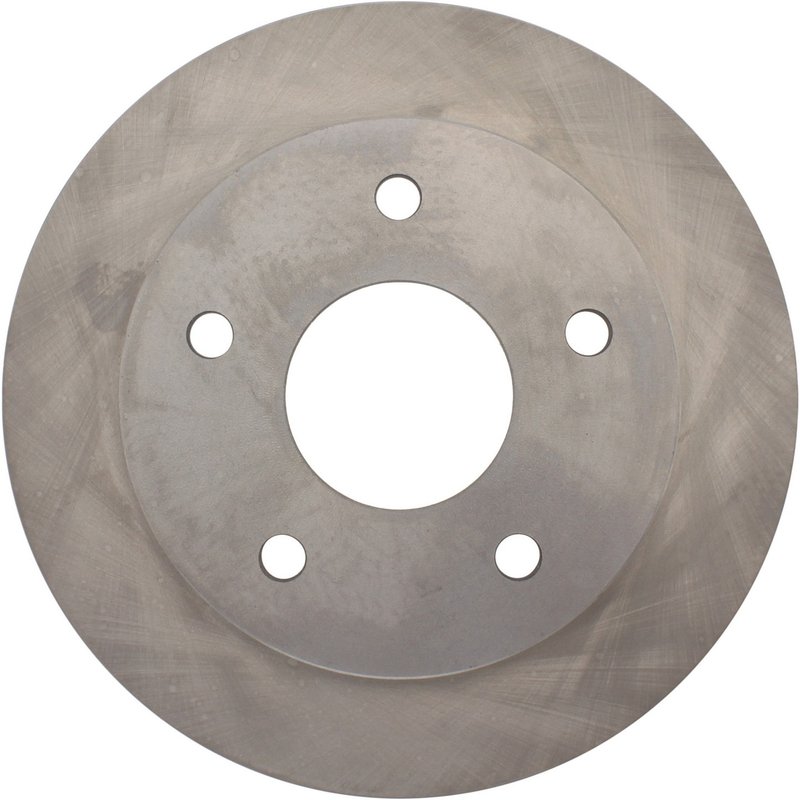

Centric 121.67048 Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Dodge Ram 1500 and Ramcharger

The Centric C-TEK Standard Disc Brake Rotor 121.67048 is engineered to provide consistent braking performance for Dodge Ram 1500 and Ramcharger models. Designed with precision, this vented rotor ensures effective heat dissipation and durability under demanding driving conditions.

• Compatible with Dodge Ram 1500 and Ramcharger vehicles
• Part number 121.67048 for accurate fitment
• Vented disc design with straight vane style for improved cooling
• Nominal thickness of 1.181 inches (30.000 mm) and discard thickness of 1.118 inches (28.390 mm)
• Overall height of 2.748 inches (69.800 mm) and outside diameter of 11.969 inches (304.000 mm)
• Floating disc mounting with 5 lug holes, each 0.630 inches (16.000 mm) in diameter
• Smooth surface type for consistent pad contact
• Weight approximately 20.25 lbs (9.2 kgs)

About the C-TEK Standard Disc Brake Rotors Line

The C-TEK Standard Disc Brake Rotors line by Centric offers a balance of quality and value for everyday driving needs. These rotors are designed to meet or exceed OEM specifications, providing reliable stopping power and durability. The 121.67048 rotor features a vented design with straight vanes to enhance heat dissipation, reducing the risk of brake fade during extended use. This product line is ideal for drivers seeking dependable replacement rotors for their Dodge Ram 1500 or Ramcharger.

Product Details and Specifications

This disc brake rotor features a nominal thickness of 1.181 inches (30.000 mm) and a discard thickness of 1.118 inches (28.390 mm), ensuring it meets safety standards for wear limits. The rotor's overall height is 2.748 inches (69.800 mm), with an outside diameter of 11.969 inches (304.000 mm), designed to fit precisely on compatible Dodge models. The floating disc mounting system and 5 lug holes with a bolt circle diameter of 5.5 inches (139.700 mm) provide secure installation. The smooth surface type promotes even brake pad wear and consistent braking performance. Note that this rotor does not include an ABS tone ring or bearings.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Dodge Ram 1500 and Ramcharger
• Addresses brake pulsation and vibration issues
• Improves heat dissipation to reduce brake fade
• Restores proper rotor thickness for safe braking
• Suitable for vehicles experiencing uneven pad wear or noise

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 1.118 inches (28.390 mm) before installation. Clean the rotor surface to remove any protective coating or debris. Verify the 5 lug hole pattern and bolt circle diameter of 5.5 inches (139.700 mm) match your vehicle specifications. Use proper torque settings on lug nuts to avoid rotor warping. This rotor is designed for floating disc mounting; confirm compatibility with your brake caliper setup.

Quality Assurance and Warranty

Centric's C-TEK Standard Disc Brake Rotors are manufactured to meet OEM standards for fit, form, and function. Each rotor undergoes strict quality control to ensure durability and performance. While specific warranty details are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Consult product documentation or Centric directly for warranty terms related to part number 121.67048.
