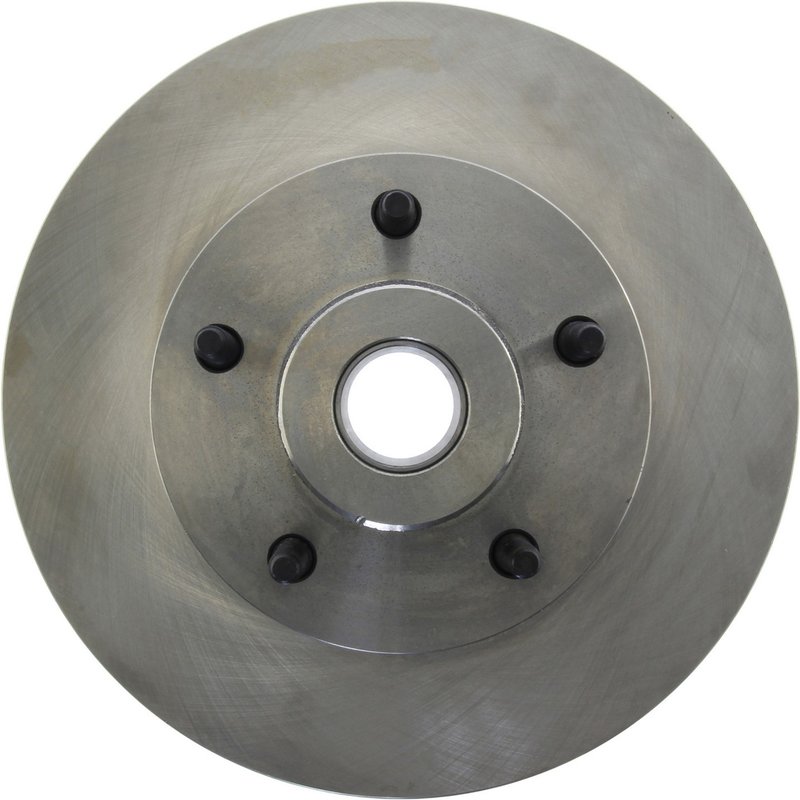

Centric 121.67055 Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Dodge Ram 1500 Van

The Centric C-TEK Standard Disc Brake Rotor 121.67055 is engineered to meet the braking demands of the Dodge Ram 1500 Van. Designed with precision, this vented rotor ensures consistent performance and durability under various driving conditions.

• Compatible with Dodge Ram 1500 Van models
• Part Number: 121.67055
• Vented disc brake rotor with smooth surface finish
• Includes ABS tone ring for enhanced sensor compatibility
• Nominal thickness: 1.181 inches (30.000 mm)
• Discard thickness: 1.118 inches (28.400 mm)
• Outside diameter: 12.717 inches (323.000 mm)
• Stud thread diameter: 0.500 inches
• Mounting bolt hole circle diameter: 5.500 inches (139.700 mm)
• Weight: 32 lbs (14.55 kgs)

Product Line Overview: C-TEK Standard Disc Brake Rotors

The C-TEK Standard Disc Brake Rotors line by Centric offers a balance of quality and value for standard braking applications. This product line features rotors designed to meet OEM specifications, including vented designs for improved heat dissipation and smooth surfaces for consistent pad contact. The 121.67055 rotor fits within this line, providing reliable braking performance for the Dodge Ram 1500 Van without additional features like bearings or seals, focusing on core rotor functionality.

Technical Specifications and Features

This disc brake rotor is vented with straight vanes to optimize airflow and heat dissipation, reducing the risk of brake fade during extended use. The smooth surface type ensures even pad wear and quiet operation. The rotor includes an ABS tone ring, which is essential for vehicles equipped with ABS systems, ensuring accurate wheel speed sensor readings. The rotor’s overall height measures 4.945 inches (125.600 mm), and it mounts using five lug holes with a 0.500-inch stud thread diameter, matching the Dodge Ram 1500 Van’s hub specifications.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Dodge Ram 1500 Van
• Addresses brake pulsation and vibration issues
• Restores proper ABS sensor function with included tone ring
• Improves braking consistency and heat management
• Suitable for routine maintenance and brake system overhauls

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 1.118 inches (28.400 mm) before installation. Clean the rotor surface to remove any protective coatings or debris. Verify compatibility with the vehicle’s hub and bearing assemblies, as this rotor does not include bearings or seals. Properly torque mounting bolts to manufacturer specifications and inspect ABS sensor connections after installation.

Quality Assurance and Warranty

Centric’s C-TEK Standard Disc Brake Rotors are manufactured to meet or exceed OEM standards for fit, form, and function. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. Refer to Centric’s official warranty policy for complete terms.
