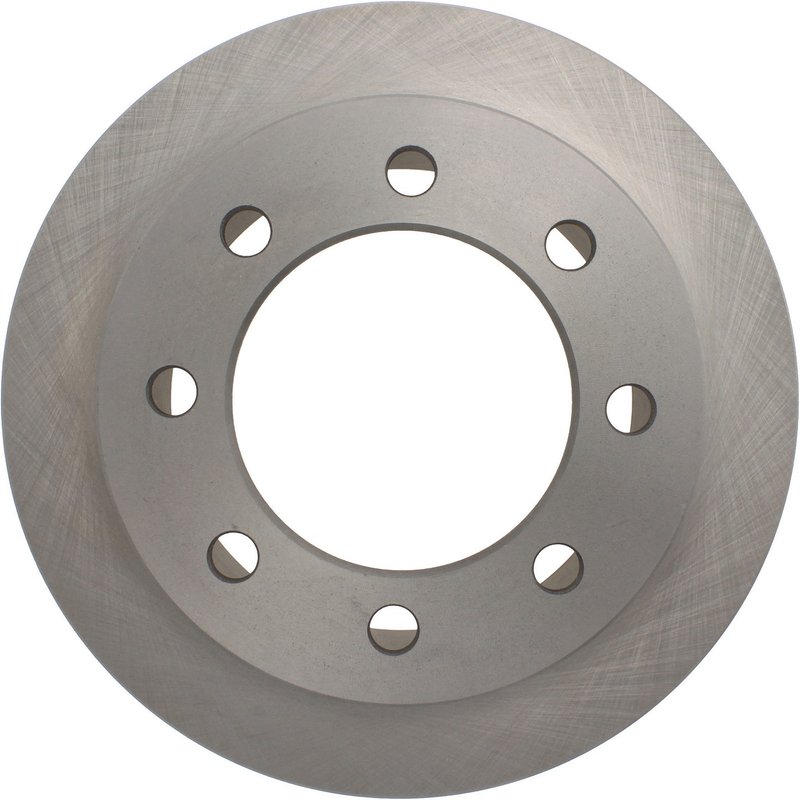

Centric 121.67062 Disc Brake Rotor - Rear

Overview of Centric C-TEK Standard Disc Brake Rotor 121.67062

The Centric C-TEK Standard Disc Brake Rotor 121.67062 is engineered for reliable braking performance on Dodge Ram 1500, Ram 2500, and Ram 3500 models. Designed as a vented rotor with a smooth surface, it offers consistent heat dissipation and durability for heavy-duty applications.

• Compatible with Dodge Ram 1500, Ram 2500, and Ram 3500
• Part number: 121.67062
• Vented disc brake rotor with smooth surface finish
• Outside diameter: 13.878 inches (352.5 mm)
• Nominal thickness: 1.181 inches (30.0 mm)
• Discard thickness: 1.118 inches (28.39 mm)
• Overall height: 5.157 inches (131.0 mm)
• 8 stud/lug holes with 0.669 inch (17.0 mm) diameter
• Center hole diameter: 4.843 inches (123.0 mm)
• Weight approximately 35 lbs (15.91 kgs)

About the C-TEK Standard Disc Brake Rotors Line

The C-TEK Standard Disc Brake Rotors line by Centric is designed to meet or exceed OEM specifications for standard replacement rotors. This product line focuses on providing dependable braking performance with vented rotors that help maintain optimal operating temperatures. The 121.67062 rotor is part of this line, offering a smooth surface and vented design to ensure consistent stopping power and rotor longevity for Dodge Ram trucks.

Detailed Product Description

This disc brake rotor features a vented design with straight vanes to improve airflow and heat dissipation during braking. The smooth surface finish ensures even pad contact and reduces noise and vibration. With a nominal thickness of 1.181 inches and a discard thickness of 1.118 inches, this rotor maintains structural integrity throughout its service life. The rotor’s overall height is 5.157 inches, and it includes 8 lug holes with a 6.5-inch bolt circle diameter, matching the specifications required for Dodge Ram 1500, 2500, and 3500 models. The center hole diameter of 4.843 inches allows for proper mounting and alignment.

Common Applications and Issues Addressed

• Replacement for worn or warped rotors on Dodge Ram 1500, 2500, and 3500
• Resolves brake pulsation caused by uneven rotor thickness
• Improves braking performance by restoring proper rotor thickness
• Addresses excessive brake noise due to rotor surface irregularities
• Prevents overheating with vented design for heavy-duty braking

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness before installation
• Clean rotor surface to remove any protective coatings or debris
• Check compatibility with vehicle ABS system; this rotor does not include an ABS tone ring
• Torque lug nuts to manufacturer specifications for proper fitment
• Inspect brake pads and replace if worn to ensure optimal rotor performance

Quality Assurance and Warranty

Centric C-TEK Standard Disc Brake Rotors are manufactured to meet OEM standards for fit, form, and function. Each rotor undergoes strict quality control to ensure durability and consistent braking performance. While specific warranty details are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Refer to Centric’s official documentation for complete warranty information.
