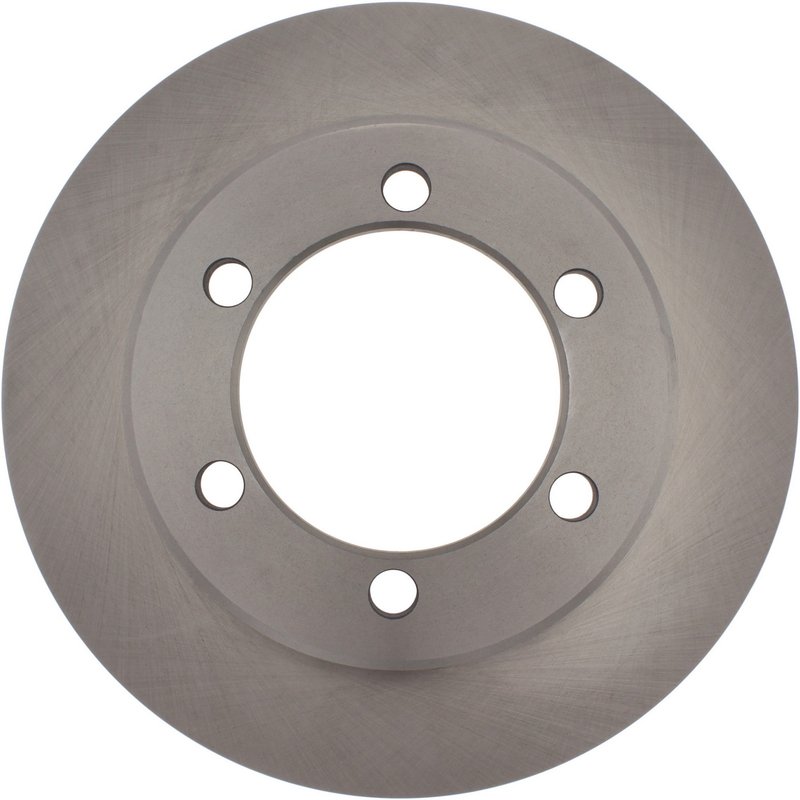

Centric 121.83010 Disc Brake Rotor - Front or Rear

Reliable Vented Disc Brake Rotor for Precise Stopping

The Centric C-TEK Standard Disc Brake Rotor 121.83010 offers dependable braking performance with a vented design that helps dissipate heat effectively. Engineered for vehicles requiring a 15-inch outside diameter rotor, this part ensures consistent stopping power and durability.

• Vented rotor design with straight vanes for improved heat dissipation
• Overall height of 3.504 inches (89.000 mm) and nominal thickness of 1.441 inches (36.600 mm)
• Mounting bolt hole quantity: 6 with a bolt hole diameter of 0.575 inches (14.600 mm)
• Hat-shaped rotor with smooth surface type for consistent pad contact
• Center hole diameter of 5.402 inches (137.200 mm) for precise fitment behind the hub
• Weight approximately 40 lbs (18.18 kgs) for balanced performance

About the C-TEK Standard Disc Brake Rotors Line

The C-TEK Standard Disc Brake Rotors line by Centric is designed to meet OEM specifications for standard braking applications. This product line focuses on delivering rotors with reliable construction and consistent dimensions, such as the 121.83010 part number, which features vented rotors to enhance cooling and reduce brake fade during regular driving conditions.

Technical Details and Specifications

This Centric rotor features a vented design with straight vanes that promote airflow and heat dissipation, reducing the risk of warping under heavy braking. The smooth surface type ensures even brake pad wear and consistent friction. The rotor mounts behind the hub with six mounting bolt holes arranged on a 6.748-inch (171.400 mm) bolt circle diameter. The discard thickness is 1.320 inches (33.530 mm), indicating the minimum thickness before replacement is necessary. The hat-shaped design contributes to structural integrity and proper alignment during installation.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Upgrading from solid to vented rotors for improved heat management
• Addressing uneven brake pad wear due to rotor surface irregularities
• Restoring braking performance on vehicles with 15-inch rotor requirements
• Ensuring proper fitment with 6-bolt mounting patterns behind the hub

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 1.320 inches (33.530 mm) before installation. Clean the mounting surface and hub to prevent runout and ensure proper rotor seating. This rotor is designed to mount behind the hub using six bolts, so verify bolt hole alignment and torque specifications according to the vehicle manufacturer’s guidelines. No ABS tone ring or bearings are included, so confirm compatibility with your vehicle’s braking system.

Quality Assurance and Warranty

Centric’s C-TEK Standard Disc Brake Rotors are manufactured to meet or exceed OEM standards for fit, form, and function. While specific warranty details for part number 121.83010 are not provided here, Centric typically offers coverage against defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
