OE Quality
60-Day Returns

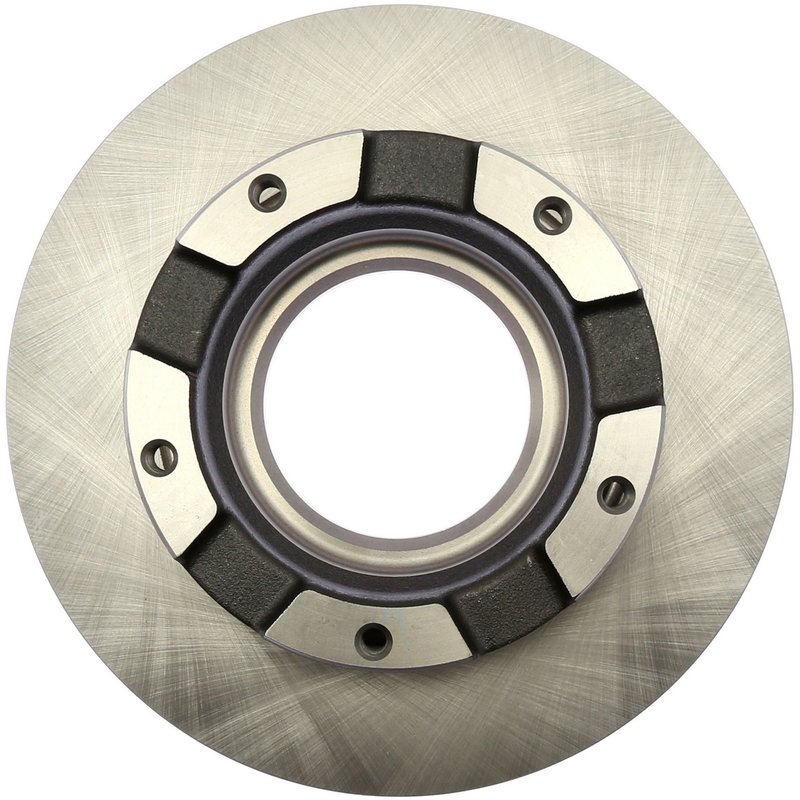

Centric 121.99098 Disc Brake Rotor - Rear
Rear Brake Rotor for Ford Transit
Centric C-TEK Standard Disc Brake Rotor 121.99098 is a rear solid rotor built for 2014-2015 Ford Transit applications. It combines a smooth surface finish with OE-style dimensions to support consistent braking performance and dependable service life.
C-TEK Standard Disc Brake Rotors
The Centric C-TEK Standard Disc Brake Rotors line focuses on practical value for everyday repair work. For Ford Transit rear brake service, this rotor line provides a straightforward replacement option that matches the vehicle’s original-style disc brake setup.
- Fits 2014-2015 Ford Transit, rear
- Part number 121.99098 for direct reference during brake rotor replacement
- Solid rotor design with a smooth surface type
- Outside diameter: 11.339 in. / 288.000 mm
- Nominal thickness: 0.630 in. / 16.000 mm
- Discard thickness: 0.512 in. / 13.000 mm
- Overall height: 2.701 in. / 68.600 mm
- 5-lug pattern with 160.000 mm bolt circle diameter
- Center hole diameter: 3.760 in. / 95.500 mm
- Disc mounting behind the hub
Detailed Description
Centric 121.99098 is a rear disc brake rotor for the 2014-2015 Ford Transit, engineered as a solid rotor with a smooth friction surface. Its dimensions, including the 288 mm outside diameter and 16 mm nominal thickness, support proper rotor replacement when servicing the rear brake system. This part cross-references Dorman - HELP 47091 for the same application.
Common Brake Issues This Rotor Can Address
- Rear brake pulsation caused by rotor wear or thickness variation
- Reduced braking consistency from a worn friction surface
- Rotor replacement needs during rear brake service on a Ford Transit
- Noise or vibration associated with an out-of-spec brake rotor
- Maintenance replacement when the rotor reaches discard thickness
Installation Notes and Tips
Verify rear axle fitment, hub mounting style, and rotor dimensions before installation. Clean the hub face thoroughly to help the rotor seat evenly, and inspect pads, calipers, and hardware condition during service. Confirm the rotor thickness is within specification before returning the vehicle to service.
Quality Assurance
Centric positions the C-TEK Standard Disc Brake Rotors line for solid performance, service life, and value across a wide range of applications. Part number 121.99098 is built to meet the needs of routine brake maintenance on the Ford Transit rear brake system.
| Brand | Centric |
|---|---|
| Part Number | 121.99098 |
| Position | C-TEK Standard Disc Brake Rotors, Rear |
| Discard Thickness | 0.512 |
| Discard Thickness | 13.000 |
| Nominal Thickness | 0.630 |
| Nominal Thickness | 16.000 |
| Overall Height | 2.701 |
| Overall Height | 68.600 |
| Outside Diameter | 11.339 |
| Outside Diameter | 288.000 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Bearings Included | No |
| Center Hole Diameter | 3.760 |
| Center Hole Diameter | 95.500 |
| Mounting Bolt Hole Circle Diameter | 160.000 |
| Mounting Bolt Hole Circle Diameter | 6.299 |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 10.000 |
| Disc Mounting [cntrc] | Behind the hub |
| Weight [cntrc] kgs | 9.250 |
| Weight [cntrc] lbs | 20.350 |
This part fits 2 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2015 | Ford | Transit | Rear | C-TEK Standard Disc Brake Rotors |
| 2014 | Ford | Transit | Rear | C-TEK Standard Disc Brake Rotors |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
