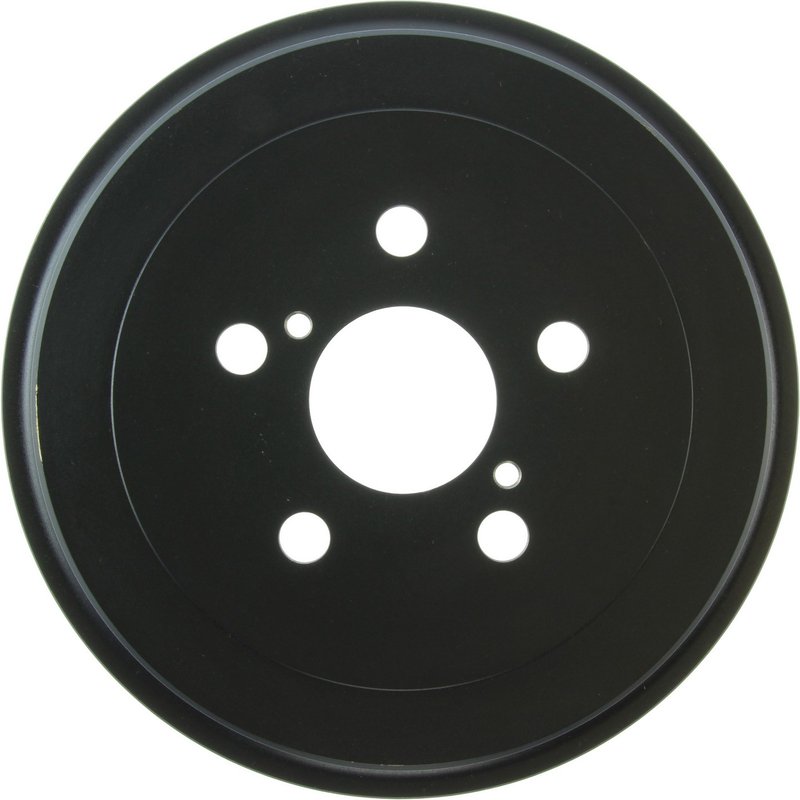

Centric 122.44051 Brake Drum - Rear
| Brand | Centric 122.44051 |
|---|---|
| Position | Rear |
| 100.0 | |
| Bolt Circle Diameter [cntrc] in | 3.937 |
| Bolt Circle Diameter [cntrc] mm | 100.000 |
| Bolt Hole Quantity | 5 |
| Friction Surface Width [cntrc] in | 1.693 |
| Friction Surface Width [cntrc] mm | 43.000 |
| Friction Surface inches | 1.69 |
| Friction Surface mm | 43.0 |
| Height [cntrc] in | 2.094 |
| Height [cntrc] mm | 53.200 |
| Hub Hole / Register [cntrc] in | 2.165 |
| Hub Hole / Register [cntrc] mm | 55.000 |
| Maximum Brake Diameter (Discard) | 7.913 |
| Maximum Brake Diameter (Discard) | 201.00 |
| Maximum Brake Diameter (Discard) | 201.000 |
| Misc Holes [cntrc] | 2 |
| Mounting Hole Diameter | 0.57 |
| Mounting Hole Diameter | 0.571 |
| Mounting Hole Diameter | 14.500 |
| Nominal Drum Diameter | 7.874 |
| Nominal Drum Diameter | 200.00 |
| Nominal Drum Diameter | 200.000 |
| Outer Cooling Fins | No |
| Outside Diameter | 9.921 |
| Outside Diameter | 252.0 |
| Outside Diameter | 252.000 |
| Weight [cntrc] kgs | 4.364 |
| Weight [cntrc] lbs | 9.600 |
| Product line | Centric Premium Brake Drums |
| Fits | Toyota · 1 vehicle |
OE-spec construction. Made with original equipment specifications and production processes for proper fit and performance.
Protective finish. Electrocoating or OE-style painted finish helps guard against the elements.
Brake drum design. Built as a premium drum for dependable braking function and quality.
Cross-references Anchor 9799, DuraGo BD920148 and Four Seasons 35134 for the same application. See all 11.
Centric Premium Brake Drum for Rear Prius Fitment
The Centric Premium Brake Drum 122.44051 is built to OE specifications for proper fitment and consistent braking performance. It is a rear brake drum for the 2009 Toyota Prius and uses a protective electrocoating or OE-style painted finish to help resist corrosion.
Key Features
- OE-style dimensions and production processes for accurate fitment
- Rear brake drum application for 2009 Toyota Prius
- Nominal drum diameter: 200.00 mm (7.874 in)
- Maximum brake diameter discard: 201.00 mm (7.913 in)
- Outside diameter: 252.0 mm (9.921 in)
- Friction surface width: 43.0 mm (1.693 in)
- 5 bolt holes with 100.0 mm bolt circle diameter
- Hub hole/register: 55.0 mm
- Protective electrocoating or OE-style painted finish
- Centric Premium Brake Drums line for OE replacement applications
Detailed Description
Centric Premium Brake Drums are engineered to match original equipment specifications, helping ensure correct drum geometry, proper mounting, and stable braking performance. Part number 122.44051 is sized for the rear position on the 2009 Toyota Prius and includes key dimensions such as a 200.00 mm nominal drum diameter, 43.0 mm friction surface width, and a 100.0 mm bolt circle diameter. The Centric Premium Brake Drums line focuses on OE-style replacement fitment with a finish selected to protect the drum from the elements.
This part cross-references DuraGo BD920148 for the same application.
What This Brake Drum Helps Address
- Rear brake pulsation caused by worn drum surfaces
- Reduced braking consistency from out-of-spec drum dimensions
- Corrosion on the drum exterior
- Noise or vibration related to drum wear
- Service replacement needs on a 2009 Toyota Prius rear brake system
Installation Notes and Tips
Verify drum diameter, hub register, bolt pattern, and friction surface width before installation. Inspect rear brake shoes, wheel cylinders, and hardware condition during service, and confirm the drum is within discard limits before reuse or replacement. For the 2009 Toyota Prius, install on the rear position only as listed in the fitment data.
Quality Assurance
Centric Premium Brake Drums are manufactured to OE specifications and production processes to support proper fitment and consistent quality. The protective finish is designed to help the drum withstand exposure to road moisture and debris.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2009 | Toyota | Prius | Rear | Centric Premium Brake Drums |
