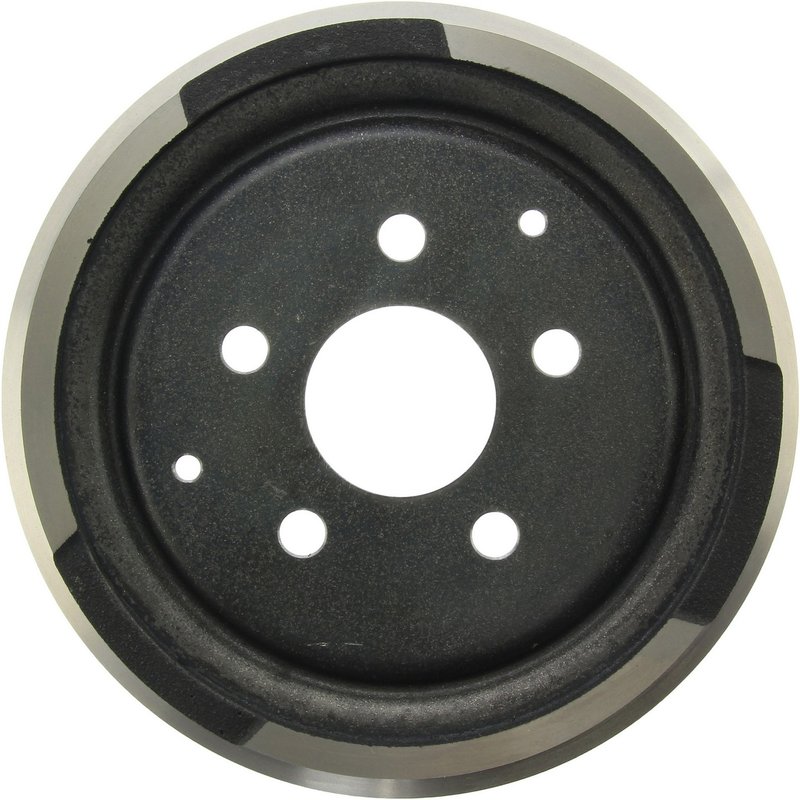

Centric 123.33008 Brake Drum - Rear

Reliable Brake Drum Replacement for Volkswagen Caravelle and Vanagon

The Centric C-TEK Standard Brake Drum 123.33008 is engineered to meet the braking needs of Volkswagen Caravelle and Vanagon models. Designed with precise dimensions and quality materials, this brake drum ensures consistent performance and durability for your vehicle's braking system.

• Compatible with Volkswagen Caravelle and Vanagon
• Part number 123.33008 for accurate identification
• Nominal drum diameter of 252 mm (9.921 in) with a maximum discard diameter of 253 mm (9.961 in)
• Five bolt holes with a bolt circle diameter of 112 mm (4.409 in)
• Friction surface width of 64 mm (2.520 in) for effective braking
• Floating mounting type with two additional miscellaneous holes
• Weight of approximately 6.136 kg (13.5 lbs) for balanced handling

About the C-TEK Standard Brake Drums Product Line

The C-TEK Standard Brake Drums line by Centric offers dependable brake components designed to meet OEM specifications. This product line focuses on delivering consistent fitment and reliable braking performance without additional features such as outer cooling fins, making it suitable for standard braking applications on Volkswagen vehicles like the Caravelle and Vanagon.

Technical Specifications and Features

This brake drum features a nominal diameter of 252 mm (9.921 inches) and a maximum discard diameter of 253 mm (9.961 inches), ensuring it meets wear limits for safe operation. The outside diameter measures 285.5 mm (11.240 inches), and the friction surface width is 64 mm (2.520 inches), providing ample surface area for brake shoe contact. The drum includes five bolt holes arranged on a 112 mm (4.409 inches) bolt circle diameter, with mounting holes sized at 15.5 mm (0.610 inches). The floating mounting type allows for proper alignment and heat dissipation during braking. Weighing 6.136 kg (13.5 lbs), this brake drum balances durability with manageable weight for the vehicle's braking system.

Common Applications and Problem Solving

• Replacement for worn or scored brake drums on Volkswagen Caravelle and Vanagon
• Addresses brake pulsation caused by uneven drum surfaces
• Resolves noise issues related to damaged or warped drums
• Restores proper braking performance and pedal feel
• Prevents brake fade due to worn friction surfaces

Installation Notes and Tips

Ensure the brake drum is compatible with your Volkswagen Caravelle or Vanagon by verifying the part number 123.33008. Before installation, inspect the hub and mounting surfaces for cleanliness and damage. Use proper torque specifications on the five mounting bolts arranged on the 112 mm bolt circle diameter. Since this drum does not include outer cooling fins, ensure adequate ventilation in the brake assembly to prevent overheating. It is recommended to replace brake shoes simultaneously for optimal braking performance.

Quality Assurance and Warranty

Centric's C-TEK Standard Brake Drums are manufactured to meet or exceed OEM standards, providing reliable fitment and consistent braking performance. While specific warranty details are not provided here, Centric products typically come with a limited warranty against defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
