OE Quality
60-Day Returns
Centric

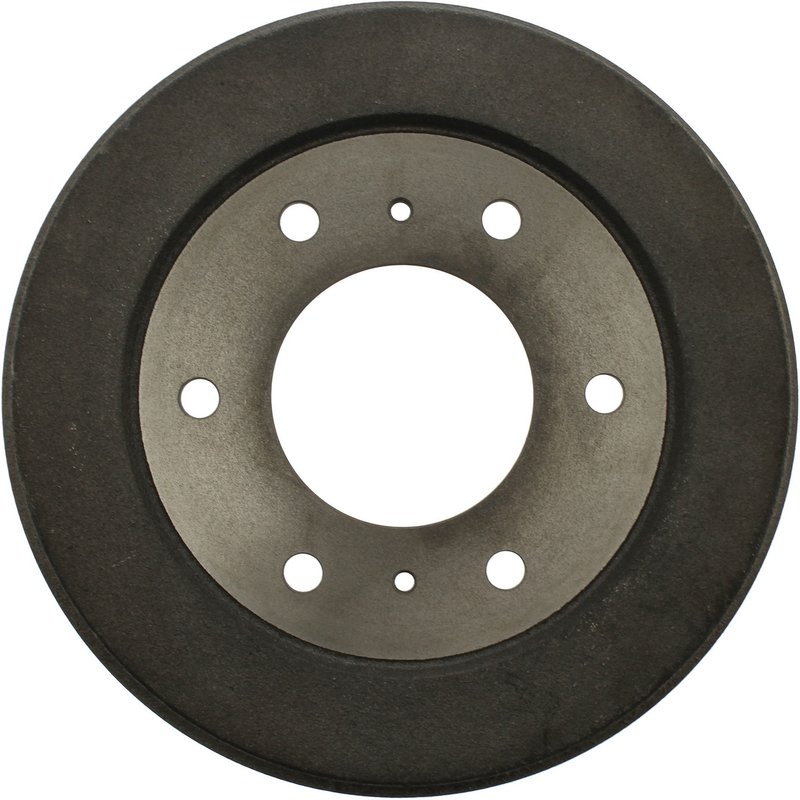

C-TEK Standard Brake DrumsCentric 123.42005 Brake Drum - Front or Rear
| Brand | Centric 123.42005 |
|---|---|
| Position | Rear and Front |
| Maximum Brake Diameter (Discard) | 10.060 |
| Maximum Brake Diameter (Discard) | 255.500 |
| Bolt Hole Quantity | 6 |
| Outside Diameter | 11.339 |
| Outside Diameter | 288.000 |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 0.512 |
| Mounting Hole Diameter | 13.000 |
| Nominal Drum Diameter | 10.000 |
| Nominal Drum Diameter | 254.000 |
| Bolt Circle Diameter [cntrc] in | 5.500 |
| Bolt Circle Diameter [cntrc] mm | 139.700 |
| Friction Surface Width [cntrc] in | 1.913 |
| Friction Surface Width [cntrc] mm | 48.580 |
| Height [cntrc] in | 2.343 |
| Height [cntrc] mm | 59.500 |
| Hub Hole / Register [cntrc] in | 3.543 |
| Hub Hole / Register [cntrc] mm | 90.000 |
| Misc Holes [cntrc] | 2 |
| Mounting Type [cntrc] | Floating |
| Weight [cntrc] kgs | 5.273 |
| Weight [cntrc] lbs | 11.600 |
| Product line | C-TEK Standard Brake Drums |
| Fits | Nissan · 38 vehicles |
Cross-references Anchor 3539, Anchor 9110 and Centric Parts 123.42005 for the same application. See all 50.
$55.90Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Brake Drums are typically replaced in pairs, axle by axle.
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Brake Drum options
Centric 123.42005 Brake Drum - Front or Rear
This part fits 38 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1981 | Nissan | 720 | Rear | To 6/81; C-TEK Standard Brake Drums |
| 1980 | Nissan | 720 | Rear | C-TEK Standard Brake Drums |
| 1979 | Nissan | 620 | Rear | C-TEK Standard Brake Drums |
| 1978 | Nissan | 620 | Rear | C-TEK Standard Brake Drums |
| 1977 | Nissan | 620 | Rear | C-TEK Standard Brake Drums |
| 1977 | Nissan | 620 | Front | C-TEK Standard Brake Drums |
| 1976 | Nissan | 620 | Rear | C-TEK Standard Brake Drums |
| 1976 | Nissan | 620 | Front | C-TEK Standard Brake Drums |
| 1975 | Nissan | 620 | Rear | C-TEK Standard Brake Drums |
| 1975 | Nissan | 620 | Front | C-TEK Standard Brake Drums |
| 1974 | Nissan | 620 Pickup | Rear | C-TEK Standard Brake Drums |
| 1974 | Nissan | 620 Pickup | Front | C-TEK Standard Brake Drums |
| 1973 | Nissan | 620 Pickup | Rear | C-TEK Standard Brake Drums |
| 1973 | Nissan | 620 Pickup | Front | C-TEK Standard Brake Drums |
| 1972 | Nissan | 521 Pickup | Rear | C-TEK Standard Brake Drums |
| 1972 | Nissan | 521 Pickup | Front | C-TEK Standard Brake Drums |
| 1972 | Nissan | 620 Pickup | Rear | C-TEK Standard Brake Drums |
| 1972 | Nissan | 620 Pickup | Front | C-TEK Standard Brake Drums |
| 1971 | Nissan | 521 Pickup | Rear | C-TEK Standard Brake Drums |
| 1971 | Nissan | 521 Pickup | Front | C-TEK Standard Brake Drums |
| 1970 | Nissan | 521 Pickup | Rear | C-TEK Standard Brake Drums |
| 1970 | Nissan | 521 Pickup | Front | C-TEK Standard Brake Drums |
| 1969 | Nissan | 521 Pickup | Rear | C-TEK Standard Brake Drums |
| 1969 | Nissan | 521 Pickup | Front | C-TEK Standard Brake Drums |
| 1968 | Nissan | 520 Pickup | Rear | C-TEK Standard Brake Drums |
| 1968 | Nissan | 520 Pickup | Front | C-TEK Standard Brake Drums |
| 1968 | Nissan | 521 Pickup | Rear | C-TEK Standard Brake Drums |
| 1968 | Nissan | 521 Pickup | Front | C-TEK Standard Brake Drums |
| 1967 | Nissan | 520 Pickup | Rear | C-TEK Standard Brake Drums |
| 1967 | Nissan | 520 Pickup | Front | C-TEK Standard Brake Drums |
| 1965 | Nissan | 320 Pickup | Rear | C-TEK Standard Brake Drums |
| 1965 | Nissan | 320 Pickup | Front | C-TEK Standard Brake Drums |
| 1964 | Nissan | 320 Pickup | Rear | C-TEK Standard Brake Drums |
| 1964 | Nissan | 320 Pickup | Front | C-TEK Standard Brake Drums |
| 1963 | Nissan | 320 Pickup | Rear | C-TEK Standard Brake Drums |
| 1963 | Nissan | 320 Pickup | Front | C-TEK Standard Brake Drums |
| 1962 | Nissan | 320 Pickup | Rear | C-TEK Standard Brake Drums |
| 1962 | Nissan | 320 Pickup | Front | C-TEK Standard Brake Drums |
| No rows match your filter. | ||||
Directly replaces or cross-references 50 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
