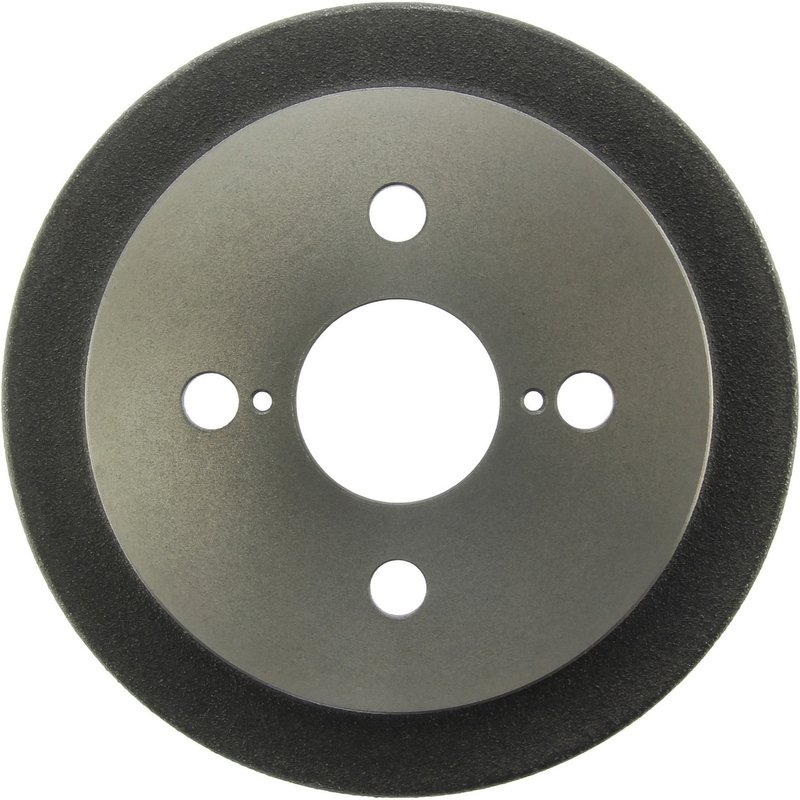

Centric 123.44014 Brake Drum - Rear

Overview of Centric C-TEK Standard Brake Drum 123.44014

The Centric C-TEK Standard Brake Drum 123.44014 is engineered for reliable braking performance on select Chevrolet and Toyota vehicles. Designed to meet OEM specifications, this brake drum supports consistent stopping power and durability for models like the Toyota Corolla, Nova, and Tercel.

• Compatible with Chevrolet Nova and Toyota Corolla, Tercel models
• Nominal drum diameter: 200 mm (7.874 in)
• Outside diameter: 235 mm (9.252 in)
• Maximum brake diameter (discard): 201 mm (7.913 in)
• Bolt hole quantity: 4 with 100 mm (3.937 in) bolt circle diameter
• Friction surface width: 47 mm (1.850 in)
• Mounting type: Floating with 14.75 mm (0.581 in) mounting hole diameter
• Weight: 4.545 kg (10 lbs)
• Hub hole diameter: 54 mm (2.126 in)
• Includes 2 miscellaneous holes for mounting

About the C-TEK Standard Brake Drums Line

The C-TEK Standard Brake Drums line by Centric offers a balance of quality and value for standard brake drum replacements. This product line is designed to meet or exceed OEM fit and function requirements, providing dependable braking components for everyday driving conditions. The 123.44014 brake drum is part of this line, ensuring compatibility and consistent performance for Chevrolet and Toyota vehicles requiring a floating mounting type brake drum.

Technical Details and Specifications

This brake drum features a nominal diameter of 200 mm (7.874 inches) and an outside diameter of 235 mm (9.252 inches), suitable for the specified vehicle models. The maximum brake diameter before discard is 201 mm (7.913 inches), indicating when the drum should be replaced to maintain safe braking. It includes four bolt holes arranged on a 100 mm (3.937 inches) bolt circle diameter, with mounting holes sized at 14.75 mm (0.581 inches). The friction surface width measures 47 mm (1.850 inches), providing adequate contact area for brake shoes. The floating mounting type allows for proper alignment and heat dissipation during braking. Weighing 4.545 kg (10 lbs), this brake drum balances strength and manageable weight for installation.

Common Applications and Problem Solving

• Replacement for worn or scored brake drums on Chevrolet Nova and Toyota Corolla, Tercel
• Addresses brake pulsation caused by uneven drum surfaces
• Resolves noise issues related to damaged or warped drums
• Restores proper brake shoe contact and stopping power
• Prevents brake fade due to overheating by maintaining correct drum dimensions

Installation Notes and Tips

• Verify vehicle compatibility with Chevrolet Nova, Toyota Corolla, or Tercel before installation
• Inspect mounting surfaces and hardware for wear or damage prior to installation
• Ensure the brake drum is installed with the correct orientation for floating mounting type
• Measure drum diameter to confirm it is within discard limits before reuse
• Follow manufacturer torque specifications for mounting bolts to avoid distortion

Quality Assurance and Warranty

Centric C-TEK Standard Brake Drums are manufactured to meet OEM standards for fit, form, and function. The 123.44014 brake drum undergoes rigorous quality control to ensure durability and consistent braking performance. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. It is recommended to consult product documentation or authorized sources for exact warranty terms.
