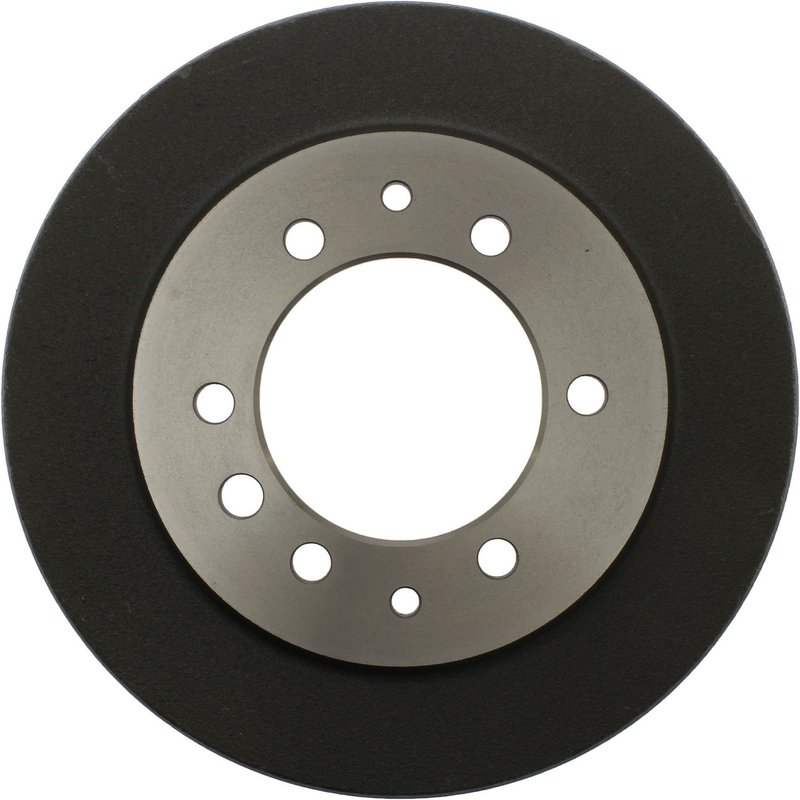

Centric 123.44019 Brake Drum - Front or Rear

Brake Drum for Toyota Land Cruiser

Centric C-TEK Standard Brake Drum 123.44019 is a direct replacement brake drum for classic Toyota Land Cruiser applications. It is built to match the required dimensions and mounting layout for front and rear fitments listed below.

Key Features

• Centric C-TEK Standard Brake Drums line for replacement braking service.
• Floating mounting type for the specified drum application.
• 12.953 in outside diameter with 11.398 in nominal drum diameter.
• 6-bolt pattern with 5.500 in bolt circle diameter.
• 2.351 in friction surface width and 3.450 in overall height.
• Compatible with Toyota Land Cruiser brake service applications.

Detailed Description

This brake drum is engineered for Toyota Land Cruiser models from 1960-1980, with separate fitments for rear and front positions. The drum measures 329.000 mm outside diameter, 289.500 mm nominal drum diameter, and 59.720 mm friction surface width, giving it the size profile needed for the listed applications. Part number 123.44019 is part of Centric’s C-TEK Standard Brake Drums line, which focuses on replacement parts with premium-style features and benefits.

Use this brake drum when servicing Toyota Land Cruiser brake systems that require the specified 6-lug, floating drum design. The 106.050 mm hub hole/register and 14.300 mm mounting hole diameter support proper alignment on the intended applications. Part number 123.44019 also cross-references Bendix Premium Brake Shoes (e.g., 588) for the same application.

What It Is Used For

• Restoring braking surface wear on a Toyota Land Cruiser drum brake system.
• Replacing a drum that is out of specification or beyond discard diameter.
• Addressing brake pulsation or uneven contact caused by drum wear.
• Correcting fitment issues on listed front or rear drum brake applications.

Installation Notes and Tips

Verify the drum diameter, bolt circle, hub register, and mounting dimensions against the existing part before installation. Confirm whether the application is front or rear, since the fitment list includes both positions for different Land Cruiser years. Inspect brake shoes and related components for wear before installing the new drum.

Quality Assurance

Centric’s C-TEK brake drums are positioned as replacement parts with features and benefits associated with premium service components. Part number 123.44019 is built for the specified Toyota Land Cruiser applications and dimensional requirements.
