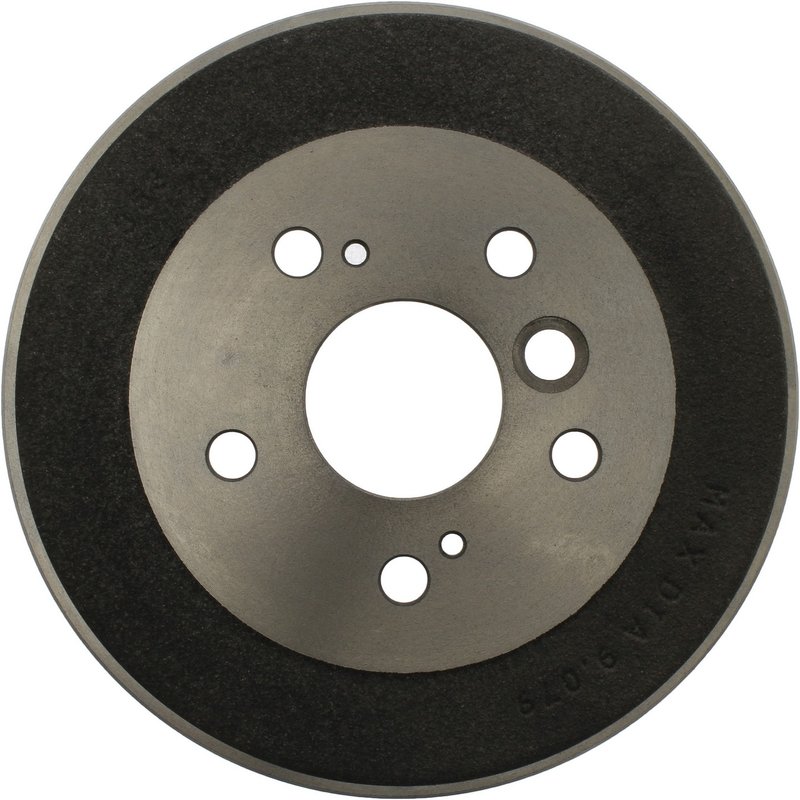

Centric 123.44030 Brake Drum - Rear

Overview of Centric C-TEK Standard Brake Drum 123.44030

The Centric C-TEK Standard Brake Drum 123.44030 is engineered for reliable braking performance on Toyota Camry and Solara models. Designed to meet OEM specifications, this brake drum ensures consistent fit and function for your vehicle's braking system.

• Compatible with Toyota Camry and Solara
• Nominal drum diameter: 228.6 mm (9.000 in)
• Outside diameter: 272.0 mm (10.709 in)
• Maximum brake diameter (discard): 230.6 mm (9.079 in)
• Friction surface width: 54.68 mm (2.153 in)
• Mounting type: Floating with 5 bolt holes
• Weight: 5.455 kg (12 lbs)
• Bolt circle diameter: 114.3 mm (4.5 in)

Detailed Product Specifications

This brake drum features a nominal diameter of 228.6 mm (9.000 inches) and an outside diameter of 272.0 mm (10.709 inches), providing the precise dimensions required for proper brake shoe contact and heat dissipation. The maximum brake diameter before discard is 230.6 mm (9.079 inches), indicating when the drum should be replaced to maintain safe braking performance. The friction surface width measures 54.68 mm (2.153 inches), ensuring adequate surface area for brake shoe engagement. The drum includes five bolt holes arranged on a 114.3 mm (4.5 inch) bolt circle diameter, with mounting holes sized at 14.5 mm (0.571 inches) diameter. The floating mounting type allows for slight movement to accommodate thermal expansion and reduce stress on the braking components. Weighing 5.455 kg (12 lbs), this brake drum balances durability with manageable weight for installation.

About the C-TEK Standard Brake Drums Line

The C-TEK Standard Brake Drums line by Centric is designed to provide dependable replacement brake drums that meet or exceed OEM standards. This product line focuses on delivering consistent dimensions and material quality to ensure proper fitment and reliable braking performance. The 123.44030 brake drum is part of this line, offering a direct replacement solution for Toyota Camry and Solara vehicles requiring standard brake drum specifications.

Common Applications and Problem Solving

• Replacement for worn or scored brake drums on Toyota Camry and Solara
• Restores proper brake shoe contact and braking efficiency
• Addresses brake pulsation caused by uneven drum surfaces
• Eliminates noise and vibration from damaged or warped drums
• Ensures safe braking by maintaining correct drum dimensions

Installation Notes and Tips

• Verify compatibility with your Toyota Camry or Solara model year before installation
• Inspect brake shoes and hardware for wear and replace if necessary
• Clean mounting surfaces to ensure proper drum seating
• Check maximum brake diameter to confirm drum is within service limits
• Torque wheel lug nuts to manufacturer specifications after installation

Quality Assurance and Warranty

Centric C-TEK Standard Brake Drums are manufactured to meet strict quality control standards, ensuring dimensional accuracy and material integrity. The 123.44030 brake drum undergoes rigorous testing to comply with OEM requirements. While specific warranty details may vary, Centric typically offers coverage against defects in materials and workmanship to provide confidence in product reliability.
