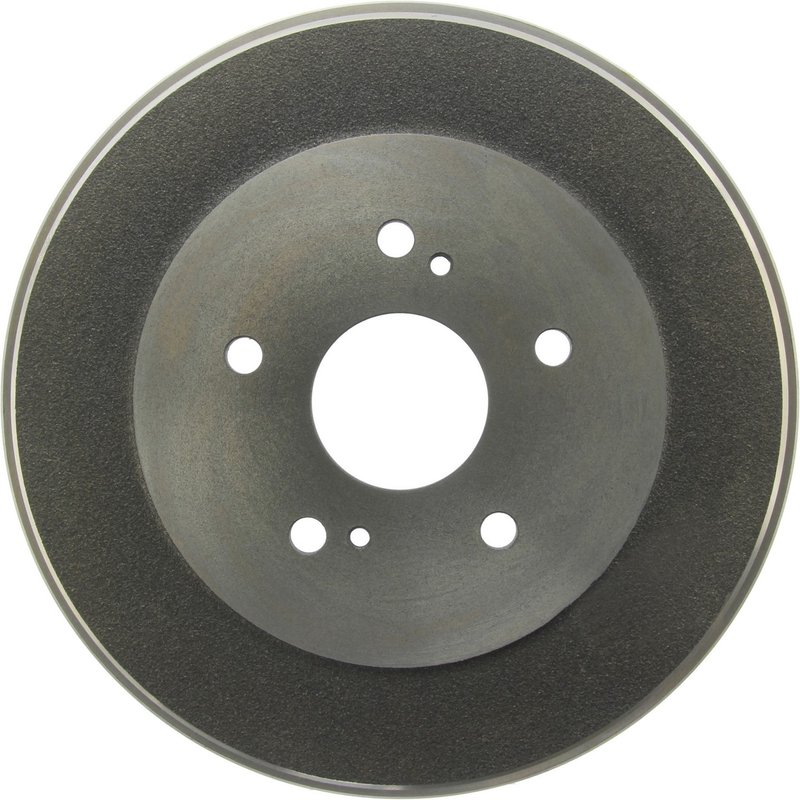

Centric 123.48016 Brake Drum - Rear

Overview of Centric C-TEK Standard Brake Drum 123.48016

The Centric C-TEK Standard Brake Drum 123.48016 is engineered for reliable braking performance on Suzuki Grand Vitara models. Designed to meet OEM specifications, this brake drum ensures consistent fit and function for your vehicle's braking system.

• Compatible with Suzuki Grand Vitara
• Nominal drum diameter: 10.000 inches (254.000 mm)
• Outside diameter: 11.874 inches (301.600 mm)
• Maximum brake diameter (discard): 10.079 inches (256.000 mm)
• Bolt hole quantity: 5 with 0.492 inch (12.500 mm) diameter
• Bolt circle diameter: 4.500 inches (114.300 mm)
• Friction surface width: 1.827 inches (46.400 mm)
• Height: 2.425 inches (61.600 mm)
• Hub hole diameter: 2.441 inches (62.000 mm)
• Mounting type: Floating
• Weight: 17.8 lbs (8.091 kgs)
• No outer cooling fins
• Includes 2 miscellaneous holes

Detailed Product Description

This Centric C-TEK Standard Brake Drum 123.48016 is manufactured to precise dimensions to ensure proper fitment on Suzuki Grand Vitara vehicles. The nominal drum diameter of 10 inches (254 mm) and outside diameter of nearly 12 inches (301.6 mm) provide the correct braking surface area for effective stopping power. The drum features a floating mounting type with five bolt holes arranged on a 4.5-inch (114.3 mm) bolt circle diameter, allowing secure attachment to the wheel hub. The friction surface width of 1.827 inches (46.4 mm) supports consistent brake shoe contact, while the height of 2.425 inches (61.6 mm) maintains proper clearance within the brake assembly. This brake drum does not include outer cooling fins, which is typical for standard replacement drums. The part weighs approximately 17.8 pounds (8.1 kg), reflecting its robust construction.

The C-TEK Standard Brake Drums product line by Centric is designed to provide dependable, OEM-quality replacement parts that meet or exceed original equipment specifications. This line focuses on delivering consistent performance and fitment for a wide range of vehicles, including the Suzuki Grand Vitara, making it a practical choice for routine brake maintenance and repairs.

Common Applications and Problem Resolution

• Replacement for worn or scored brake drums on Suzuki Grand Vitara
• Addresses brake pulsation caused by uneven drum surfaces
• Resolves noise issues related to damaged or warped drums
• Restores proper brake shoe contact and stopping power
• Prevents brake fade due to compromised drum integrity

Installation Notes and Tips

• Verify compatibility with Suzuki Grand Vitara model year before installation
• Inspect wheel bearings and hub assembly during brake drum replacement
• Ensure mounting holes align correctly with the 5-bolt pattern and 4.5-inch bolt circle diameter
• Check brake shoe condition and replace if necessary for optimal performance
• Use proper torque specifications when securing the brake drum to avoid distortion

Quality Assurance and Warranty

Centric C-TEK Standard Brake Drums are manufactured under strict quality control standards to ensure durability and reliable performance. Each brake drum undergoes dimensional inspections and material testing to meet OEM requirements. While specific warranty details are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship for their brake components.
