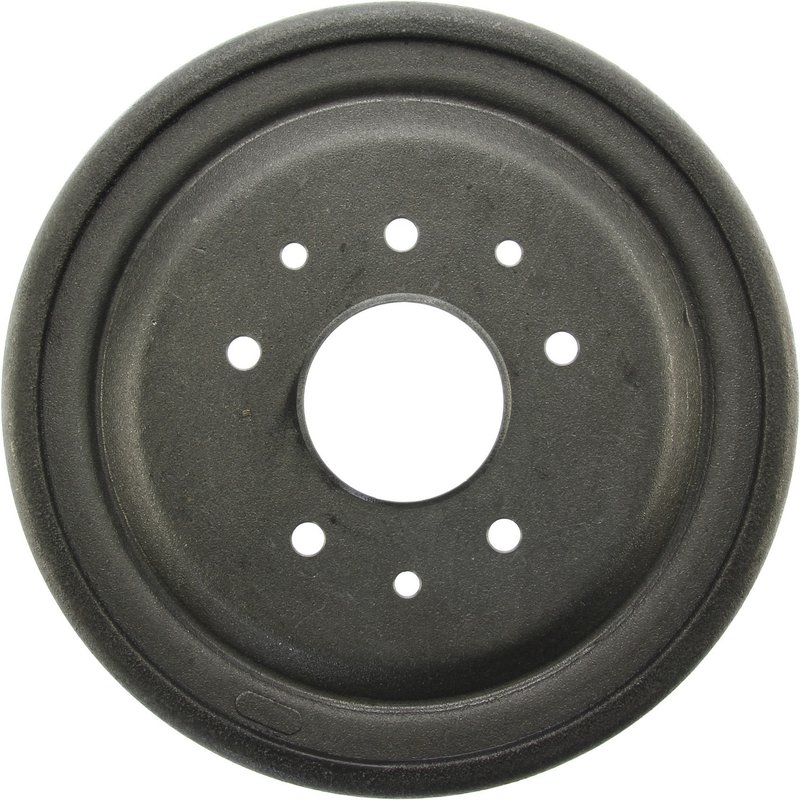

Centric 123.62000 Brake Drum - Front or Rear

Overview of Centric C-TEK Standard Brake Drum 123.62000

The Centric C-TEK Standard Brake Drum 123.62000 is engineered for reliable braking performance on select Chevrolet models. Designed to meet OEM specifications, this brake drum is compatible with Chevrolet Bel Air, Caprice, Corvette, El Camino, and Impala vehicles.

• Nominal drum diameter: 11.000 inches (279.4 mm)
• Outside diameter: 12.360 inches (313.944 mm)
• Maximum brake diameter (discard): 11.090 inches (281.7 mm)
• Friction surface width: 2.360 inches (59.944 mm)
• Bolt hole quantity: 5 with 4.750 inches (120.65 mm) bolt circle diameter
• Mounting hole diameter: 0.450 inches (11.43 mm)
• Height: 3.070 inches (77.978 mm)
• Hub hole/register diameter: 2.820 inches (71.628 mm)
• Weight: 15 lbs (6.818 kgs)
• Mounting type: Floating
• No outer cooling fins

About the C-TEK Standard Brake Drums Line

The C-TEK Standard Brake Drums line by Centric offers dependable replacement brake drums designed to meet or exceed original equipment standards. This product line focuses on providing consistent fitment and performance for classic and late-model vehicles, including Chevrolet models such as the Bel Air, Caprice, Corvette, El Camino, and Impala. The 123.62000 brake drum is part of this line, ensuring precise dimensions and quality materials for effective braking.

Detailed Product Description

The Centric 123.62000 brake drum features a nominal diameter of 11 inches and an outside diameter of 12.36 inches, providing a solid friction surface width of 2.36 inches. It is designed with five bolt holes arranged on a 4.75-inch bolt circle diameter, compatible with the specified Chevrolet models. The floating mounting type allows for proper alignment and heat dissipation during braking. Weighing 15 pounds, this brake drum balances durability with manageable weight. The absence of outer cooling fins indicates a standard design suitable for typical driving conditions.

Common Applications and Problem Solving

• Replacement for worn or scored brake drums on Chevrolet Bel Air, Caprice, Corvette, El Camino, and Impala
• Addresses brake pulsation caused by uneven drum surfaces
• Resolves noise issues related to damaged or warped drums
• Restores proper brake shoe contact and stopping power
• Prevents brake fade due to excessive drum wear

Installation Notes and Tips

• Verify compatibility with vehicle make and model before installation
• Inspect brake shoes and hardware for wear and replace if necessary
• Ensure mounting holes and bolt pattern align correctly with hub assembly
• Clean mating surfaces to prevent installation issues
• Torque bolts to manufacturer specifications to avoid warping

Quality Assurance and Warranty

Centric provides quality assurance through strict manufacturing standards for the C-TEK Standard Brake Drums line. Each brake drum undergoes dimensional and material inspections to ensure consistent performance. While specific warranty details for part number 123.62000 are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Consult Centric or authorized distributors for exact warranty terms.
