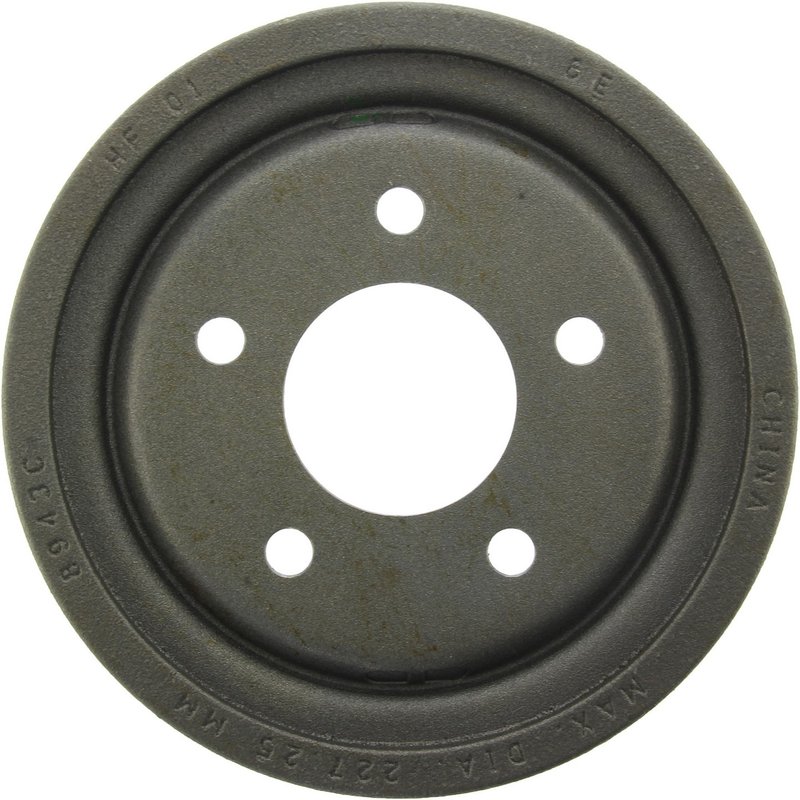

Centric 123.62024 Brake Drum - Rear

Reliable Brake Drum Replacement for Buick, Chevrolet, Oldsmobile, and Pontiac

The Centric C-TEK Standard Brake Drum 123.62024 offers a precise fit and dependable performance for select Buick, Chevrolet, Oldsmobile, and Pontiac models. Designed to meet OEM specifications, this brake drum ensures consistent braking and durability for vehicles like the Celebrity, Century, Cutlass, and Cutlass Ciera.

• Nominal drum diameter: 225.000 mm (8.858 in)
• Outside diameter: 260.350 mm (10.250 in)
• Maximum brake diameter (discard): 227.250 mm (8.946 in)
• Bolt hole quantity: 5 with 114.3 mm (4.500 in) bolt circle diameter
• Friction surface width: 54.864 mm (2.160 in)
• Mounting hole diameter: 14.224 mm (0.560 in)
• Height: 73.152 mm (2.880 in)
• Weight: 11.650 lbs (5.295 kgs)
• Mounting type: Floating

About the C-TEK Standard Brake Drums Line

The C-TEK Standard Brake Drums line by Centric is engineered to provide reliable, direct-fit replacements that meet or exceed OEM standards. This product line focuses on delivering consistent braking performance and durability without added features such as outer cooling fins, making it suitable for standard brake system applications. The 123.62024 brake drum is part of this line, ensuring compatibility and quality for your vehicle’s braking system.

Detailed Product Description

This Centric brake drum 123.62024 is designed with a nominal drum diameter of 225 mm and an outside diameter of 260.35 mm, providing the correct dimensions for proper brake shoe contact and heat dissipation. The drum features five bolt holes arranged on a 114.3 mm bolt circle diameter, ensuring secure mounting on compatible hubs. With a friction surface width of 54.864 mm, it offers adequate surface area for effective braking. The floating mounting type allows for slight movement to accommodate brake shoe expansion and contraction during operation. Weighing approximately 11.65 lbs, this brake drum balances strength and weight for optimal performance.

Compatible Vehicles and Common Applications

• Buick Celebrity
• Chevrolet 6000
• Oldsmobile Cutlass and Cutlass Ciera
• Pontiac Century

This brake drum is suitable for addressing issues such as worn or scored drums, brake noise, uneven braking, and vibration during braking.

Installation Notes and Tips

• Ensure the brake drum maximum diameter (discard) of 227.25 mm is not exceeded before installation.
• Verify bolt hole alignment with the 5-hole, 114.3 mm bolt circle diameter pattern.
• Inspect brake shoes and hardware for wear and replace as necessary during installation.
• Clean mounting surfaces to prevent uneven seating and potential brake pulsation.
• Use proper torque specifications for mounting bolts to ensure secure fitment.

Quality Assurance and Warranty

Centric’s C-TEK Standard Brake Drums are manufactured to meet strict quality standards, ensuring reliable performance and durability. While specific warranty details for part number 123.62024 are not provided here, Centric typically offers coverage against defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
