C-TEK Standard Brake Drums

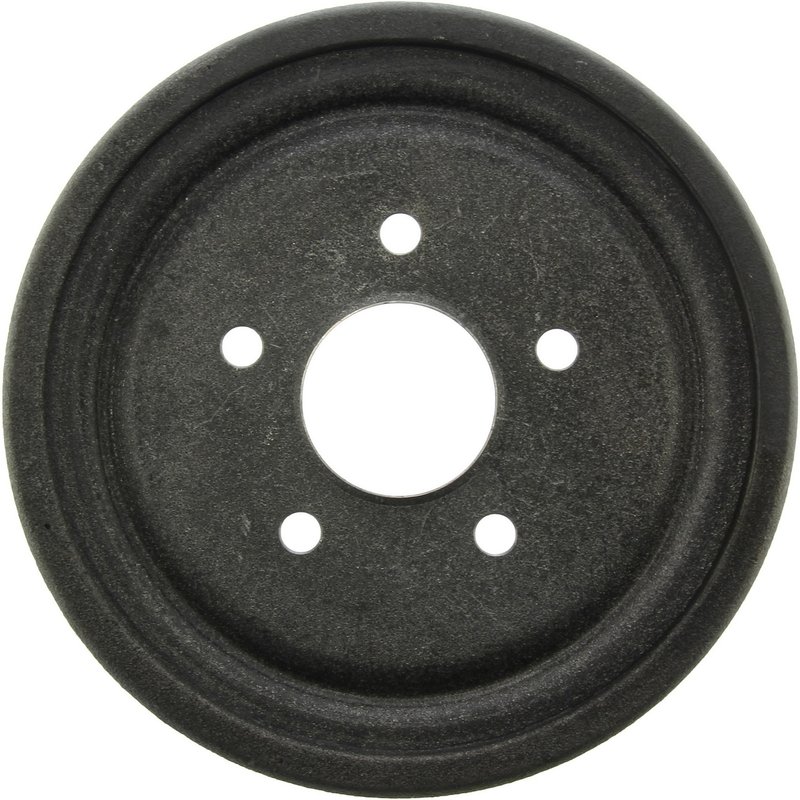

Centric 123.63004 Brake Drum - Rear

Brand	Centric 123.63004
Position	Rear
Maximum Brake Diameter (Discard)	230.900
Maximum Brake Diameter (Discard)	9.090
Bolt Hole Quantity	5
Outside Diameter	10.350
Outside Diameter	262.890
Outer Cooling Fins	No
Mounting Hole Diameter	0.470
Mounting Hole Diameter	11.940
Nominal Drum Diameter	228.600
Nominal Drum Diameter	9.000
Bolt Circle Diameter [cntrc] in	4.000
Bolt Circle Diameter [cntrc] mm	101.600
Friction Surface Width [cntrc] in	2.330
Friction Surface Width [cntrc] mm	59.182
Height [cntrc] in	2.830
Height [cntrc] mm	71.882
Hub Hole / Register [cntrc] in	2.310
Hub Hole / Register [cntrc] mm	58.674
Mounting Type [cntrc]	Floating
Weight [cntrc] kgs	4.409
Weight [cntrc] lbs	9.700
Product line	C-TEK Standard Brake Drums
Fits	Dodge · 55 vehicles

Premium replacement features. C-TEK Standard Brake Drums bring many benefits found in premium parts.

Floating mounting type. Helps simplify installation with a straightforward brake drum design.

Brake drum design. Built for dependable braking performance in a standard replacement part.

Cross-references Anchor 2941, Anchor 8191 and Anchor 8801 for the same application. See all 39.

$52.52Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Brake Drums are typically replaced in pairs, axle by axle.

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Brake Drum options

Centric C-TEK Brake Drum for Dodge Dart and Lancer

Centric C-TEK Standard Brake Drum 123.63004 is a rear brake drum built for select Dodge Dart and Dodge Lancer applications. It combines OE-style dimensions with a standard replacement design for drivers servicing drum brake systems on classic Dodge models.

Key Features

Rear brake drum for select Dodge Dart and Dodge Lancer fitments
Centric C-TEK Standard Brake Drums line focuses on practical replacement coverage
Nominal drum diameter: 9.000 in (228.600 mm)
Outside diameter: 10.350 in (262.890 mm)
Friction surface width: 2.330 in (59.182 mm)
Height: 2.830 in (71.882 mm)
5-bolt pattern with 4.000 in (101.600 mm) bolt circle diameter
Floating mounting type with 2.310 in (58.674 mm) hub hole/register
Maximum brake diameter discard: 9.090 in (230.900 mm)
Part number 123.63004 for catalog and fitment lookup

Product Details

Centric designed the C-TEK Standard Brake Drums line to deliver many of the features and benefits expected from premium replacement brake parts without changing the original service layout. This brake drum is sized for rear drum brake service on Dodge Dart and Dodge Lancer models listed in the fitment data, including 1961-1964 Dodge Lancer and multiple Dodge Dart rear drum brake applications from 1963-1976. The 123.63004 drum uses a floating mounting type and a 5-lug configuration, making it a direct-service option for classic Mopar drum brake maintenance.

This part cross-references Raybestos Brakes 2941R for the same application.

What It Helps Address

Rear brake pulsation caused by worn or out-of-round drum surfaces
Reduced braking consistency from a drum that has exceeded discard diameter
Brake shoe contact issues related to uneven friction surfaces
Service needs on classic Dodge Dart rear drum brake systems
Replacement needs for Dodge Lancer rear drum brake maintenance

Installation Notes and Fitment

Fits 1963-1964 Dodge Dart, rear. Fits 1974-1976 Dodge Dart, rear. Fits 1973 Dodge Dart, rear. Fits 1971-1972 Dodge Dart, rear. Fits 1965-1966 Dodge Dart, rear. Fits 1967-1970 Dodge Dart, rear. Fits 1961-1962 Dodge Lancer, rear.

Verify drum diameter, bolt circle, hub register, and brake shoe condition before installation. For 1971-1973 Dodge Dart applications, confirm the listed 9-inch brake configuration and front drum brake notes in the vehicle record before ordering. Match the drum to the existing rear brake setup and inspect the wheel bearing and race set where noted in the fitment data.

Quality Assurance

Centric’s C-TEK Standard Brake Drums are positioned as dependable replacement parts with OE-style fitment and dimensional consistency for service work on classic drum brake systems. Part number 123.63004 is cataloged for direct reference during brake drum replacement on compatible Dodge Dart and Dodge Lancer applications.

This part fits 55 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Liters	Cylinders	Position	Notes
1976	Dodge	Dart	—	—	Rear	Front Drum Brakes - Wheel Bearing and Race Set.; C-TEK Standard Brake Drums
1976	Plymouth	Valiant	—	—	Rear	Front Drum Brakes - Wheel Bearing and Race Set.; C-TEK Standard Brake Drums
1975	Dodge	Dart	—	—	Rear	Front Drum Brakes - Wheel Bearing and Race Set.; C-TEK Standard Brake Drums
1975	Plymouth	Duster	—	—	Rear	Front Drum Brakes - Wheel Bearing and Race Set.; C-TEK Standard Brake Drums
1975	Plymouth	Scamp	—	—	Rear	Front Drum Brakes - Wheel Bearing and Race Set.; C-TEK Standard Brake Drums
1975	Plymouth	Valiant	—	—	Rear	Front Drum Brakes - Wheel Bearing and Race Set.; C-TEK Standard Brake Drums
1974	Dodge	Dart	—	—	Rear	Front Drum Brakes - Wheel Bearing and Race Set.; C-TEK Standard Brake Drums
1974	Plymouth	Duster	—	—	Rear	C-TEK Standard Brake Drums
1974	Plymouth	Scamp	—	—	Rear	C-TEK Standard Brake Drums
1974	Plymouth	Valiant	—	—	Rear	C-TEK Standard Brake Drums
1973	Dodge	Dart	—	—	Rear	9" Brakes; Front Drum Brks; C-TEK Standard Brake Drums
1973	Plymouth	Duster	—	—	Rear	9" Drums; C-TEK Standard Brake Drums
1973	Plymouth	Scamp	3.7L	L6	Rear	9" Drums; C-TEK Standard Brake Drums
1973	Plymouth	Scamp	3.2L	L6	Rear	9" Drums; C-TEK Standard Brake Drums
1973	Plymouth	Valiant	3.7L	L6	Rear	9" Drums; C-TEK Standard Brake Drums
1973	Plymouth	Valiant	3.2L	L6	Rear	9" Drums; C-TEK Standard Brake Drums
1972	Dodge	Dart	—	—	Rear	9" Brakes; C-TEK Standard Brake Drums
1972	Plymouth	Duster	—	—	Rear	9" Drums; C-TEK Standard Brake Drums
1972	Plymouth	Scamp	—	—	Rear	C-TEK Standard Brake Drums
1972	Plymouth	Valiant	—	—	Rear	C-TEK Standard Brake Drums
1971	Dodge	Dart	—	—	Rear	9" Brakes; C-TEK Standard Brake Drums
1971	Plymouth	Duster	—	—	Rear	9" Drums; C-TEK Standard Brake Drums
1971	Plymouth	Scamp	—	—	Rear	C-TEK Standard Brake Drums
1971	Plymouth	Valiant	—	—	Rear	C-TEK Standard Brake Drums
1970	Dodge	Dart	—	—	Rear	C-TEK Standard Brake Drums
1970	Plymouth	Duster	—	—	Rear	9" Drums; C-TEK Standard Brake Drums
1970	Plymouth	Valiant	—	—	Rear	C-TEK Standard Brake Drums
1969	Dodge	Dart	—	—	Rear	C-TEK Standard Brake Drums
1969	Plymouth	Barracuda	3.7L	L6	Rear	9" Drum; C-TEK Standard Brake Drums
1969	Plymouth	Valiant	—	—	Rear	C-TEK Standard Brake Drums
1968	Dodge	Dart	—	—	Rear	C-TEK Standard Brake Drums
1968	Plymouth	Barracuda	3.7L	L6	Rear	9" Drum; C-TEK Standard Brake Drums
1968	Plymouth	Valiant	—	—	Rear	C-TEK Standard Brake Drums
1967	Dodge	Dart	—	—	Rear	C-TEK Standard Brake Drums
1967	Plymouth	Barracuda	3.7L	L6	Rear	9" Drum; C-TEK Standard Brake Drums
1967	Plymouth	Valiant	—	—	Rear	C-TEK Standard Brake Drums
1966	Dodge	Dart	—	—	Rear	9" Brakes; C-TEK Standard Brake Drums
1966	Plymouth	Barracuda	3.7L	L6	Rear	9" Drum; C-TEK Standard Brake Drums
1966	Plymouth	Barracuda	2.8L	L6	Rear	9" Drum; C-TEK Standard Brake Drums
1966	Plymouth	Valiant	—	—	Rear	C-TEK Standard Brake Drums
1965	Dodge	Dart	—	—	Rear	9" Brakes; C-TEK Standard Brake Drums
1965	Plymouth	Barracuda	3.7L	L6	Rear	9" Drum; C-TEK Standard Brake Drums
1965	Plymouth	Barracuda	2.8L	L6	Rear	9" Drum; C-TEK Standard Brake Drums
1965	Plymouth	Valiant	—	—	Rear	C-TEK Standard Brake Drums
1964	Dodge	Dart	—	—	Rear	Front Drum Brakes - Wheel Bearing and Race Set.; C-TEK Standard Brake Drums
1964	Plymouth	Barracuda	3.7L	L6	Rear	9" Drum; C-TEK Standard Brake Drums
1964	Plymouth	Barracuda	2.8L	L6	Rear	9" Drum; C-TEK Standard Brake Drums
1964	Plymouth	Valiant	—	—	Rear	C-TEK Standard Brake Drums
1963	Dodge	Dart	—	—	Rear	Front Drum Brakes - Wheel Bearing and Race Set.; C-TEK Standard Brake Drums
1963	Plymouth	Valiant	—	—	Rear	C-TEK Standard Brake Drums
1962	Dodge	Lancer	—	—	Rear	C-TEK Standard Brake Drums
1962	Plymouth	Valiant	—	—	Rear	C-TEK Standard Brake Drums
1961	Dodge	Lancer	—	—	Rear	C-TEK Standard Brake Drums
1961	Plymouth	Valiant	—	—	Rear	C-TEK Standard Brake Drums
1960	Plymouth	Valiant	—	—	Rear	C-TEK Standard Brake Drums
No rows match your filter.

Directly replaces or cross-references 39 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

Anchor — 2941Anchor — 8191Anchor — 8801BBB Industries — 17747BENDIX PREMIUM BRAKE SHOES — 871Centric Parts — 123.63004Dayco — 87003Gates — 23029Raybestos Brakes — 2941R18B1177 472941DGS8191G8801G140179177180177263203910207270520727972260538226708330047423461885358054964010578832004883201178832004AD8304AD8304EAD8311BD1134BD8191BD60083D2941PDR0179X21102X21499
