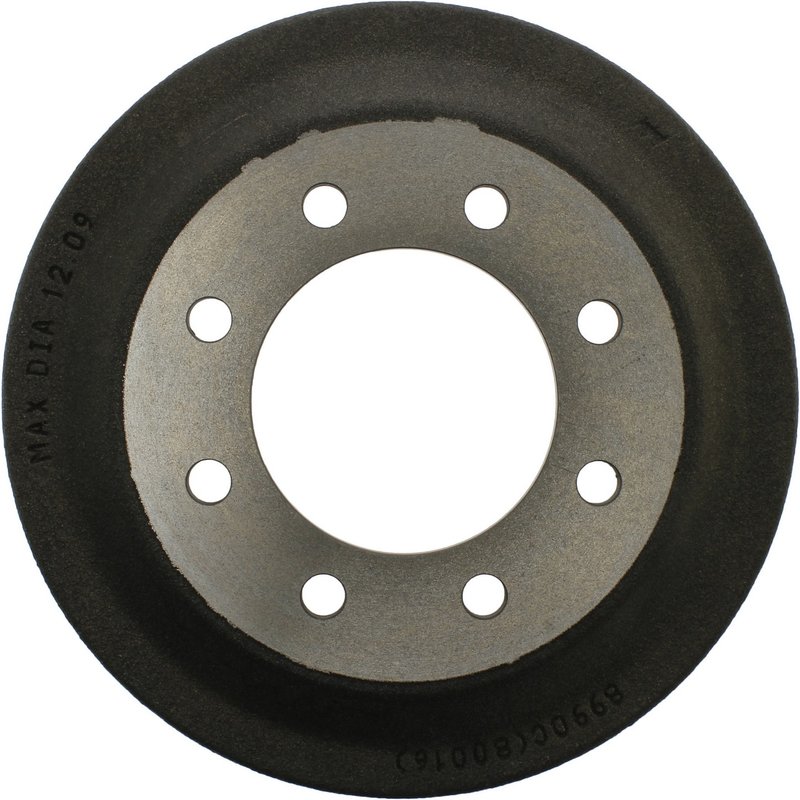

Centric 123.65032 Brake Drum - Rear

Centric C-TEK Brake Drum Overview

Centric C-TEK Standard Brake Drums are built for rear brake service on select Ford applications, including the Ford E-250 Econoline, Ford F-250, and Ford F-350. Part number 123.65032 is a direct-fit brake drum option for vehicles that need a 12.000-inch nominal drum diameter and a floating mounting design.

The C-TEK Standard Brake Drums line focuses on practical replacement coverage with features commonly found in premium aftermarket parts. This drum measures 14.060 inches outside diameter, 4.900 inches in height, and 3.480 inches of friction surface width, with 8 bolt holes and a 6.500-inch bolt circle diameter.

Key Features

• Part number 123.65032 for rear brake drum replacement
• 12.000-inch nominal drum diameter with 12.090-inch maximum brake diameter discard specification
• 14.060-inch outside diameter and 4.900-inch overall height
• 3.480-inch friction surface width for the specified brake setup
• 8-bolt pattern with 6.500-inch bolt circle diameter
• Floating mounting type with 4.700-inch hub hole/register
• No outer cooling fins
• Weight: 32.500 lbs

Product Line Details

Centric’s C-TEK Standard Brake Drums line is positioned as a practical replacement range for everyday brake service. For buyers searching for Centric brake drums or a rear brake drum for Ford E-250 Econoline, Ford F-250, or Ford F-350, this line provides the core dimensions and fitment needed for a straightforward replacement selection.

Detailed Description

Centric 123.65032 is a rear brake drum engineered around the listed OE-style dimensions for select Ford trucks and vans. It is listed for 1992-1994 Ford E-250 Econoline, rear; 1983 Ford F-250, rear; and 1983 Ford F-350, rear. Notes include 1983 Ford F-250 rear applications with Fr 3/83, single piston calipers, and 1983 Ford F-250 rear applications with Fr 2/83, heavy duty, over 8500lb GVW.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. If you are sourcing a Centric brake drum 123.65032 for Ford E-250 Econoline rear brake service or a rear brake drum for Ford F-250 and F-350 applications, verify the drum dimensions and brake configuration against the vehicle before ordering.

What It Helps Address

• Rear brake drum wear beyond the maximum discard diameter
• Brake pulsation or uneven braking from an out-of-spec drum surface
• Reduced braking performance caused by drum scoring or heat damage
• Fitment issues when replacing a worn rear drum on select Ford trucks and vans
• Service needs on 1983 Ford F-250 and F-350 rear brake systems and 1992-1994 Ford E-250 Econoline rear brake systems

Installation Notes and Tips

Confirm the vehicle’s rear brake configuration, drum diameter, bolt pattern, hub register, and mounting style before installation. For 1983 Ford F-250 applications, match the listed notes for production date and brake setup, including single piston calipers or heavy-duty over 8500lb GVW configurations. Clean the hub and inspect related brake components before installing the new drum.

Quality Assurance

Centric manufactures the C-TEK Standard Brake Drums as replacement brake components with premium-style features and dimensional coverage for the listed applications. Part number 123.65032 is specified for direct replacement use on the confirmed Ford fitments shown above.
