OE Quality
60-Day Returns

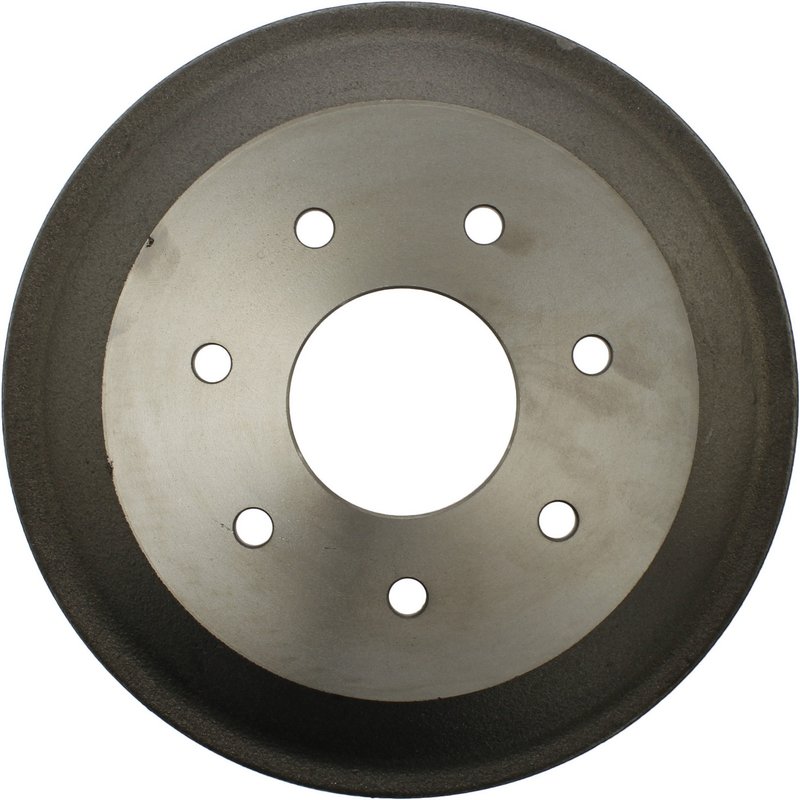

Centric 123.65039 Brake Drum - Rear
Centric C-TEK Brake Drum for Ford F-150 and F-250
Centric C-TEK Standard Brake Drums are built for rear brake service where consistent drum dimensions and dependable friction contact matter. This Centric brake drum, part number 123.65039, is a direct replacement for select 7-lug Ford F-150 and Ford F-250 applications from 1997 through 2003.
Key Features
- Centric C-TEK Standard Brake Drums line for OE-style replacement coverage
- Nominal drum diameter: 12.000 in. / 304.800 mm
- Maximum brake diameter discard: 12.090 in. / 307.100 mm
- Outside diameter: 14.060 in. / 357.124 mm
- Friction surface width: 3.000 in. / 76.200 mm
- Height: 4.720 in. / 119.888 mm
- 7 bolt holes with 5.906 in. / 150.000 mm bolt circle diameter
- Floating mounting type with no outer cooling fins
- Hub hole/register: 3.440 in. / 87.376 mm
Product Details
The Centric C-TEK Standard Brake Drums product line is positioned as a practical replacement option for everyday brake repair, combining standard replacement dimensions with the fitment and geometry needed for rear drum brake service. Part number 123.65039 is specified for rear use on select Ford F-150 and Ford F-250 trucks, including 7-lug configurations and applications noted with 12 x 2 1/2 in. rear shoe sizing. This brake drum cross-references Raybestos Brakes 9652R for the same application.
What This Brake Drum Helps Address
- Rear brake pulsation caused by worn or out-of-spec drum surfaces
- Brake noise related to uneven drum contact
- Reduced braking consistency from excessive drum wear
- Service issues on 7-lug Ford F-150 and Ford F-250 rear drum brake setups
- Replacement needs when the drum reaches discard diameter
Installation Notes and Fitment
Compatible With 1997-2003 Ford F-150 and Ford F-250 rear brake applications listed below. Verify drum diameter, bolt pattern, hub register, and rear shoe configuration before installation. Fits 2002-2003 Ford F-150, rear; Fits 2000 Ford F-150, rear; Fits 2001 Ford F-150, rear; Fits 1999 Ford F-150, rear; Fits 1999 Ford F-250, rear; Fits 1997-1998 Ford F-250, rear; Fits 1997 Ford F-250 HD, rear.
- Fits 2002-2003 Ford F-150, rear, 7 lug
- Fits 2000 Ford F-150, rear, 7 lug
- Fits 2001 Ford F-150, rear, 7 lug; Fr 12/13/01
- Fits 2001 Ford F-150, rear, 7 lug; To 12/13/01
- Fits 1999 Ford F-150, rear, 7 lug; Fr 12/99
- Fits 1999 Ford F-250, rear, 7 lug; To 12/99
- Fits 1999 Ford F-250, rear, 12 x 2 1/2" rear shoe; 7 lug; To 12/99
- Fits 1997-1998 Ford F-250, rear, 7 lug
- Fits 1997-1998 Ford F-250, rear, 12" x 2 1/2" rear shoe
- Fits 1997 Ford F-250 HD, rear, 7 lug
- Fits 1997 Ford F-250 HD, rear, 12" x 2 1/2" rear shoe
Quality Assurance
Centric manufactures C-TEK brake components as premium replacement-style parts with application-specific dimensions and fitment coverage for service work on Ford F-150 and Ford F-250 rear drum brake systems. Part number 123.65039 is built to match the listed brake drum specifications for accurate replacement selection.
| Brand | Centric |
|---|---|
| Part Number | 123.65039 |
| Position | C-TEK Standard Brake Drums, Rear |
| Maximum Brake Diameter (Discard) | 12.090 |
| Maximum Brake Diameter (Discard) | 307.100 |
| Bolt Hole Quantity | 7 |
| Outside Diameter | 14.060 |
| Outside Diameter | 357.124 |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 0.540 |
| Mounting Hole Diameter | 13.720 |
| Nominal Drum Diameter | 12.000 |
| Nominal Drum Diameter | 304.800 |
| Bolt Circle Diameter [cntrc] in | 5.906 |
| Bolt Circle Diameter [cntrc] mm | 150.000 |
| Friction Surface Width [cntrc] in | 3.000 |
| Friction Surface Width [cntrc] mm | 76.200 |
| Height [cntrc] in | 4.720 |
| Height [cntrc] mm | 119.888 |
| Hub Hole / Register [cntrc] in | 3.440 |
| Hub Hole / Register [cntrc] mm | 87.376 |
| Mounting Type [cntrc] | Floating |
| Weight [cntrc] kgs | 12.955 |
| Weight [cntrc] lbs | 28.500 |
This part fits 20 vehicles. Search below:
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2003 | Ford | F-150 | RWD | Rear | 7 Lug; C-TEK Standard Brake Drums |
| 2003 | Ford | F-150 | 4WD | Rear | 7 Lug; C-TEK Standard Brake Drums |
| 2002 | Ford | F-150 | RWD | Rear | 7 Lug; C-TEK Standard Brake Drums |
| 2002 | Ford | F-150 | 4WD | Rear | 7 Lug; C-TEK Standard Brake Drums |
| 2001 | Ford | F-150 | RWD | Rear | 7 Lug; Fr 12/13/01; C-TEK Standard Brake Drums |
| 2001 | Ford | F-150 | RWD | Rear | 7 Lug; To 12/13/01; C-TEK Standard Brake Drums |
| 2001 | Ford | F-150 | 4WD | Rear | 7 Lug; To 12/13/01; C-TEK Standard Brake Drums |
| 2001 | Ford | F-150 | 4WD | Rear | 7 Lug; Fr 12/13/01; C-TEK Standard Brake Drums |
| 2000 | Ford | F-150 | RWD | Rear | 7 Lug; C-TEK Standard Brake Drums |
| 2000 | Ford | F-150 | 4WD | Rear | 7 Lug; C-TEK Standard Brake Drums |
| 1999 | Ford | F-150 | RWD | Rear | 7 Lug; Fr 12/99; C-TEK Standard Brake Drums |
| 1999 | Ford | F-150 | 4WD | Rear | 7 Lug; Fr 12/99; C-TEK Standard Brake Drums |
| 1999 | Ford | F-250 | RWD | Rear | 7 Lug; To 12/99; C-TEK Standard Brake Drums |
| 1999 | Ford | F-250 | 4WD | Rear | 12 x 2 1/2" Rear Shoe; 7 Lug; To 12/99; C-TEK Standard Brake Drums |
| 1998 | Ford | F-250 | RWD | Rear | 7 Lug; C-TEK Standard Brake Drums |
| 1998 | Ford | F-250 | 4WD | Rear | 12" x 2 1/2" Rear Shoe; 7 Lug; C-TEK Standard Brake Drums |
| 1997 | Ford | F-250 | RWD | Rear | 7 Lug; C-TEK Standard Brake Drums |
| 1997 | Ford | F-250 | 4WD | Rear | 12" x 2 1/2" Rear Shoe; 7 Lug; C-TEK Standard Brake Drums |
| 1997 | Ford | F-250 HD | RWD | Rear | 7 Lug; C-TEK Standard Brake Drums |
| 1997 | Ford | F-250 HD | 4WD | Rear | 12" x 2 1/2" Rear Shoe; 7 Lug; C-TEK Standard Brake Drums |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
