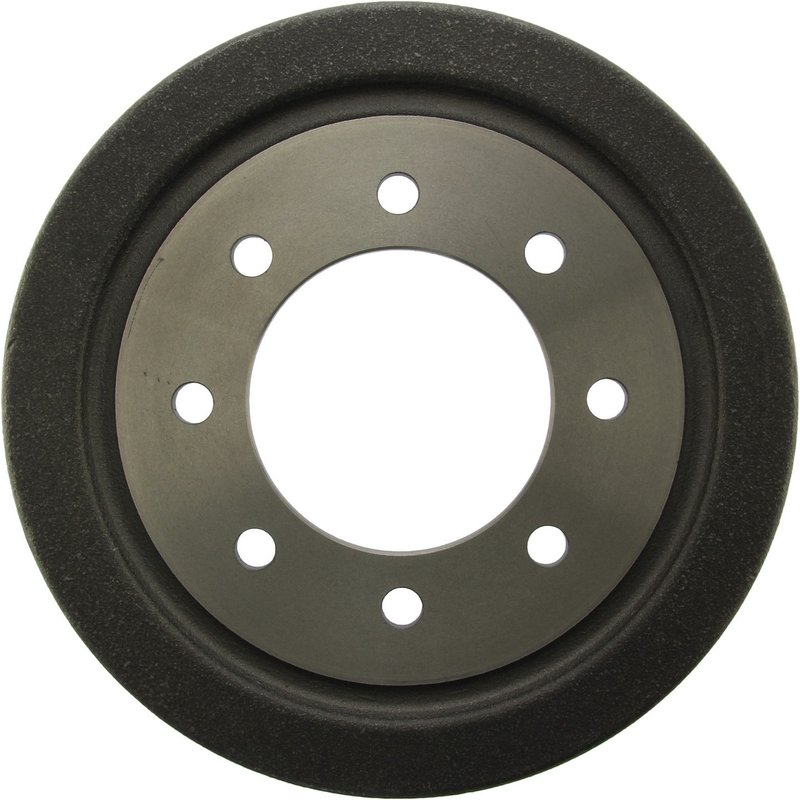

Centric 123.67015 Brake Drum - Front

Overview of Centric C-TEK Standard Brake Drum 123.67015

The Centric C-TEK Standard Brake Drum 123.67015 is engineered to meet precise braking requirements for various vehicle applications. Designed with exact dimensions and specifications, this brake drum ensures reliable performance and compatibility with specific makes and models.

• Nominal drum diameter: 12.000 in (304.8 mm)
• Maximum brake diameter (discard): 12.080 in (306.8 mm)
• Outside diameter: 14.020 in (356.108 mm)
• Friction surface width: 3.490 in (88.646 mm)
• Bolt hole quantity: 8
• Bolt circle diameter: 6.500 in (165.1 mm)
• Mounting hole diameter: 0.620 in (15.75 mm)
• Height: 3.850 in (97.79 mm)
• Hub hole/register diameter: 4.750 in (120.65 mm)
• Mounting type: Floating
• Weight: 31 lbs (14.091 kgs)
• Outer cooling fins: No

Details on the C-TEK Standard Brake Drums Product Line

The C-TEK Standard Brake Drums line by Centric offers a balance of quality and value for standard brake drum replacements. This product line focuses on meeting OEM specifications for fit, form, and function, providing dependable braking components without additional features such as cooling fins. The 123.67015 brake drum is part of this line, designed to deliver consistent braking performance for compatible vehicles.

Technical Description and Specifications

The Centric 123.67015 brake drum features a nominal diameter of 12 inches (304.8 mm) with a maximum discard diameter of 12.080 inches (306.8 mm), ensuring it meets wear limits for safe operation. The outside diameter measures 14.020 inches (356.108 mm), and the friction surface width is 3.490 inches (88.646 mm), providing adequate surface area for brake shoe contact. It includes eight bolt holes arranged on a 6.5-inch (165.1 mm) bolt circle diameter, with mounting holes sized at 0.620 inches (15.75 mm). The floating mounting type allows for proper alignment and fitment. Weighing 31 pounds (14.091 kgs), this brake drum is designed for durability and consistent braking response.

Common Applications and Problem Solving

• Replacement for worn or scored brake drums on compatible vehicles
• Restores proper braking surface to eliminate brake noise and vibration
• Addresses brake fade caused by uneven drum wear
• Corrects issues related to brake shoe misalignment
• Helps maintain braking efficiency and vehicle safety

Installation Notes and Tips

When installing the Centric C-TEK Standard Brake Drum 123.67015, ensure the mounting surface is clean and free of debris. Verify the bolt hole pattern and mounting hole diameters match the vehicle specifications. Use proper torque settings on all fasteners to avoid warping. Since this drum does not have outer cooling fins, ensure adequate ventilation in the brake assembly to prevent overheating. It is recommended to inspect brake shoes and hardware during installation for optimal performance.

Quality Assurance and Warranty

Centric manufactures the C-TEK Standard Brake Drums to meet or exceed OEM standards, ensuring reliable fit and function. The 123.67015 brake drum undergoes rigorous quality control to maintain consistent dimensions and material integrity. While specific warranty details may vary, Centric typically offers a limited warranty against defects in materials and workmanship for this product line.
