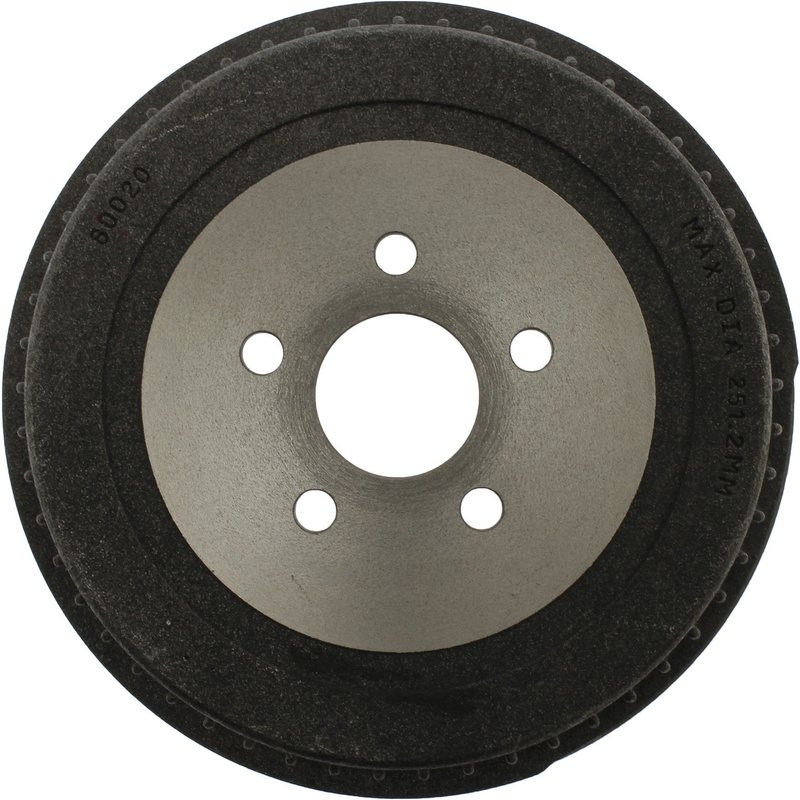

Centric 123.67028 Brake Drum - Rear
| Brand | Centric 123.67028 |
|---|---|
| Position | Rear |
| Maximum Brake Diameter (Discard) | 251.200 |
| Maximum Brake Diameter (Discard) | 9.890 |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 12.110 |
| Outside Diameter | 307.594 |
| Outer Cooling Fins | Yes |
| Mounting Hole Diameter | 0.570 |
| Mounting Hole Diameter | 14.478 |
| Nominal Drum Diameter | 250.000 |
| Nominal Drum Diameter | 9.843 |
| Bolt Circle Diameter [cntrc] in | 3.937 |
| Bolt Circle Diameter [cntrc] mm | 100.000 |
| Friction Surface Width [cntrc] in | 2.640 |
| Friction Surface Width [cntrc] mm | 67.056 |
| Height [cntrc] in | 3.050 |
| Height [cntrc] mm | 77.470 |
| Hub Hole / Register [cntrc] in | 2.260 |
| Hub Hole / Register [cntrc] mm | 57.404 |
| Mounting Type [cntrc] | Floating |
| Weight [cntrc] kgs | 8.864 |
| Weight [cntrc] lbs | 19.500 |
| Product line | C-TEK Standard Brake Drums |
| Fits | Chrysler, Dodge, and Plymouth · 29 vehicles |
Floating design. Helps the brake drum seat smoothly during installation.
Outer cooling fins. Promote better heat dissipation for more consistent braking.
C-TEK Standard line. Offers many features and benefits of premium replacement parts.
Cross-references Anchor 9628, AP Exhaust 68460 and Dayco 87628 for the same application. See all 37.
Centric C-TEK Rear Brake Drum
Centric C-TEK Standard Brake Drums deliver a practical OE-style replacement for rear drum brake service. Part number 123.67028 is built for select Chrysler, Dodge, and Plymouth minivans that use a rear brake drum with a 5-lug, 100 mm bolt circle layout.
The C-TEK brake drum line focuses on the core dimensions and fitment details needed for a direct replacement. For applications such as the Chrysler Grand Voyager, Town & Country, Voyager, Dodge Caravan, Grand Caravan, and Plymouth Voyager, this drum supports the rear brake setup with the specified nominal diameter, hub register, and floating mounting type.
Key Features
- Centric C-TEK Standard Brake Drums line for everyday brake service
- Part number 123.67028
- Rear brake drum for select Chrysler, Dodge, and Plymouth applications
- Nominal drum diameter: 250.000 mm (9.843 in)
- Outside diameter: 307.594 mm (12.110 in)
- Maximum brake diameter discard: 251.200 mm (9.890 in)
- 5 bolt holes with 100.000 mm bolt circle diameter
- Floating mounting type with outer cooling fins
- Hub hole/register: 57.404 mm (2.260 in)
- Friction surface width: 67.056 mm (2.640 in)
Product Details
Centric positions the C-TEK brake drum line as a value-focused replacement that carries many of the features associated with premium replacement parts. This drum is specified for rear use and matches the listed dimensions needed for proper brake shoe contact, wheel mounting, and hub registration. If you are servicing a Chrysler Town & Country rear brake drum, a Dodge Grand Caravan rear brake drum, or a Plymouth Voyager rear brake drum, part number 123.67028 provides the dimensional details needed for a correct application match.
This part cross-references Raybestos Brakes 9628 for the same application.
What It Helps Address
- Rear brake drum wear from normal mileage and repeated braking
- Brake pulsation or uneven braking caused by an out-of-spec drum surface
- Reduced shoe contact from excessive drum diameter growth
- Noise or vibration related to worn rear drum brake components
- Fitment issues when replacing a rear drum on select Chrysler, Dodge, and Plymouth minivans
Installation Notes and Tips
Verify the vehicle’s rear brake configuration, wheel bolt pattern, and hub register before installation. Confirm the drum diameter against the existing part and inspect brake shoes, hardware, and wheel cylinders for wear during service. This drum is listed for rear position applications only, including select 2000 Chrysler Grand Voyager, 1996-2000 Chrysler Town & Country, 2000 Chrysler Voyager, 1996-2000 Dodge Caravan, 1996-2000 Dodge Grand Caravan, 1996-2000 Plymouth Grand Voyager, and 1996-2000 Plymouth Voyager models.
- Fits 2001-2002 Chrysler Grand Voyager, rear
- Fits 2000 Chrysler Grand Voyager, rear
- Fits 1996-2000 Chrysler Town & Country, rear
- Fits 2000 Chrysler Voyager, rear
- Fits 1996-2000 Dodge Caravan, rear
- Fits 1996-2000 Dodge Grand Caravan, rear
- Fits 1996-2000 Plymouth Grand Voyager, rear
- Fits 1996-2000 Plymouth Voyager, rear
Quality Assurance
Centric’s C-TEK Standard Brake Drums are built as replacement brake components with the dimensional and application data needed for service work on the listed vehicles. The product line is positioned to provide many of the features found in premium replacement parts while maintaining a standard replacement format.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2002 | Chrysler | Grand Voyager | — | Rear | C-TEK Standard Brake Drums |
| 2001 | Chrysler | Grand Voyager | — | Rear | C-TEK Standard Brake Drums |
| 2000 | Chrysler | Grand Voyager | — | Rear | 256mm Front Disc, fits left or right side on select vehicles.; C-TEK Standard Brake Drums |
| 2000 | Chrysler | Town & Country | FWD | Rear | 14" Wheels; 256mm Front Disc; C-TEK Standard Brake Drums |
| 2000 | Chrysler | Voyager | — | Rear | 256mm Front Disc, fits left or right side on select vehicles.; C-TEK Standard Brake Drums |
| 2000 | Dodge | Caravan | — | Rear | 256mm Front Disc, fits left or right side on select vehicles.; C-TEK Standard Brake Drums |
| 2000 | Dodge | Grand Caravan | FWD | Rear | 256mm Front Disc, fits left or right side on select vehicles.; C-TEK Standard Brake Drums |
| 2000 | Plymouth | Grand Voyager | — | Rear | 14" Wheels; 256mm Front Disc; C-TEK Standard Brake Drums |
| 2000 | Plymouth | Voyager | — | Rear | 14" Wheels; 256mm Front Disc; C-TEK Standard Brake Drums |
| 1999 | Chrysler | Town & Country | FWD | Rear | 14" Wheels; 256mm Front Disc; C-TEK Standard Brake Drums |
| 1999 | Dodge | Caravan | — | Rear | 256mm Front Disc, fits left or right side on select vehicles.; C-TEK Standard Brake Drums |
| 1999 | Dodge | Grand Caravan | FWD | Rear | 256mm Front Disc, fits left or right side on select vehicles.; C-TEK Standard Brake Drums |
| 1999 | Plymouth | Grand Voyager | — | Rear | 14" Wheels; 256mm Front Disc; C-TEK Standard Brake Drums |
| 1999 | Plymouth | Voyager | — | Rear | 14" Wheels; 256mm Front Disc; C-TEK Standard Brake Drums |
| 1998 | Chrysler | Town & Country | FWD | Rear | 14" Wheels; 256mm Front Disc; C-TEK Standard Brake Drums |
| 1998 | Dodge | Caravan | — | Rear | 256mm Front Disc, fits left or right side on select vehicles.; C-TEK Standard Brake Drums |
| 1998 | Dodge | Grand Caravan | FWD | Rear | 256mm Front Disc, fits left or right side on select vehicles.; C-TEK Standard Brake Drums |
| 1998 | Plymouth | Grand Voyager | — | Rear | 14" Wheels; 256mm Front Disc; C-TEK Standard Brake Drums |
| 1998 | Plymouth | Voyager | — | Rear | 14" Wheels; 256mm Front Disc; C-TEK Standard Brake Drums |
| 1997 | Chrysler | Town & Country | FWD | Rear | 14" Wheels; 256mm Front Disc; C-TEK Standard Brake Drums |
| 1997 | Dodge | Caravan | — | Rear | 256mm Front Disc, fits left or right side on select vehicles.; C-TEK Standard Brake Drums |
| 1997 | Dodge | Grand Caravan | FWD | Rear | 256mm Front Disc, fits left or right side on select vehicles.; C-TEK Standard Brake Drums |
| 1997 | Plymouth | Grand Voyager | FWD | Rear | 14" Wheels; 256mm Front Disc; C-TEK Standard Brake Drums |
| 1997 | Plymouth | Voyager | — | Rear | 14" Wheels; 256mm Front Disc; C-TEK Standard Brake Drums |
| 1996 | Chrysler | Town & Country | FWD | Rear | 14" Wheels; 256mm Front Disc; C-TEK Standard Brake Drums |
| 1996 | Dodge | Caravan | — | Rear | 256mm Front Disc, fits left or right side on select vehicles.; C-TEK Standard Brake Drums |
| 1996 | Dodge | Grand Caravan | — | Rear | 256mm Front Disc, fits left or right side on select vehicles.; C-TEK Standard Brake Drums |
| 1996 | Plymouth | Grand Voyager | — | Rear | 14" Wheels; 256mm Front Disc; C-TEK Standard Brake Drums |
| 1996 | Plymouth | Voyager | — | Rear | 14" Wheels; 256mm Front Disc; C-TEK Standard Brake Drums |
