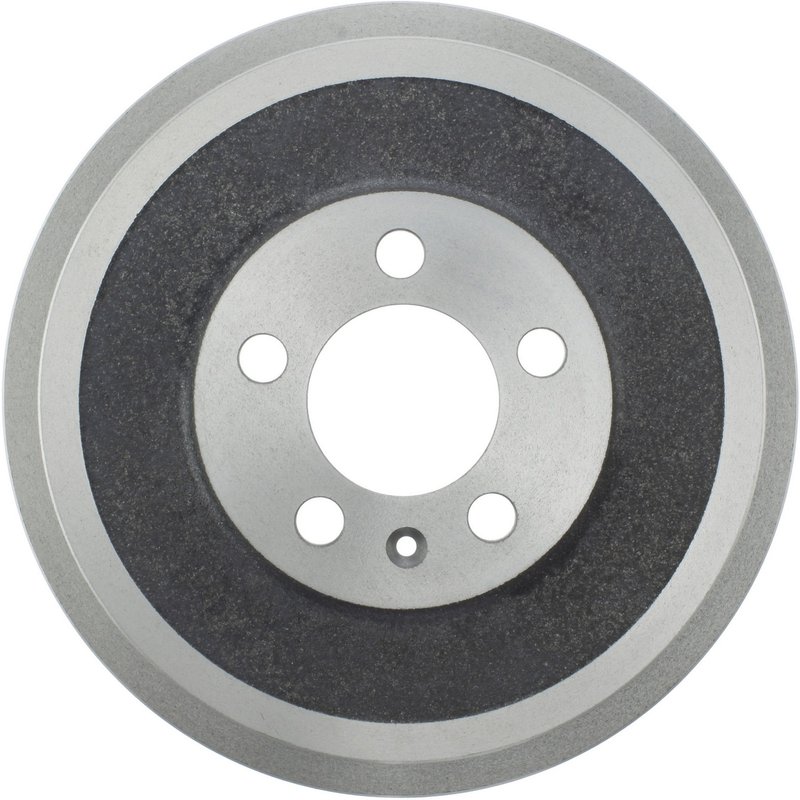

Centric 123.99028 Brake Drum - Rear

Centric CTEK Standard Brake Drum for Rear Service

The Centric CTEK Standard Brake Drum, part number 123.99028, is a rear brake drum built for 2011-2015 Volkswagen Clasico applications. It combines OE-style dimensions with a floating mounting design to support consistent drum brake service on the rear axle.

Key Features

• Fits 2011-2015 Volkswagen Clasico, rear
• Centric CTEK Standard Brake Drums product line
• Nominal drum diameter: 230.000 mm (9.055 in)
• Maximum brake diameter discard: 231.500 mm (9.114 in)
• Outside diameter: 290.000 mm (11.417 in)
• Friction surface width: 39.800 mm (1.567 in)
• Height: 57.500 mm (2.264 in)
• Hub hole/register: 65.000 mm (2.559 in)
• Bolt hole quantity: 5 with 100.000 mm (3.937 in) bolt circle diameter
• Floating mounting type with no outer cooling fins

Product Details

Centric 123.99028 is part of the CTEK Standard Brake Drums line, which is positioned as a practical replacement option with features commonly found in premium service parts. For Volkswagen Clasico rear brake service, this drum provides the specified friction surface width, hub register, and bolt pattern needed for proper drum brake fitment. The part number 123.99028 also cross-references Gates 27028 for the same application.

Common Brake Drum Issues It Can Address

• Rear brake pulsation caused by drum wear beyond discard diameter
• Reduced braking consistency from an out-of-round or worn drum surface
• Noise from a damaged or uneven friction surface
• Poor shoe contact due to excessive drum wear
• Service replacement needs on 2011-2015 Volkswagen Clasico rear drum brake systems

Installation Notes and Tips

Verify the drum diameter, hub register, bolt circle, and mounting dimensions against the existing rear brake assembly before installation. Inspect brake shoes, wheel cylinders, and related hardware for wear or contamination during service, and confirm the drum surface is within the discard limit before returning the vehicle to service. This part number 123.99028 is listed for rear fitment on the Volkswagen Clasico only in the provided data.

Quality Assurance

Centric markets the CTEK Standard Brake Drums line as a replacement brake component family with premium-part features and benefits. The listed specifications, including nominal diameter, discard diameter, and mounting dimensions, support accurate parts selection for the confirmed Volkswagen Clasico rear application.
