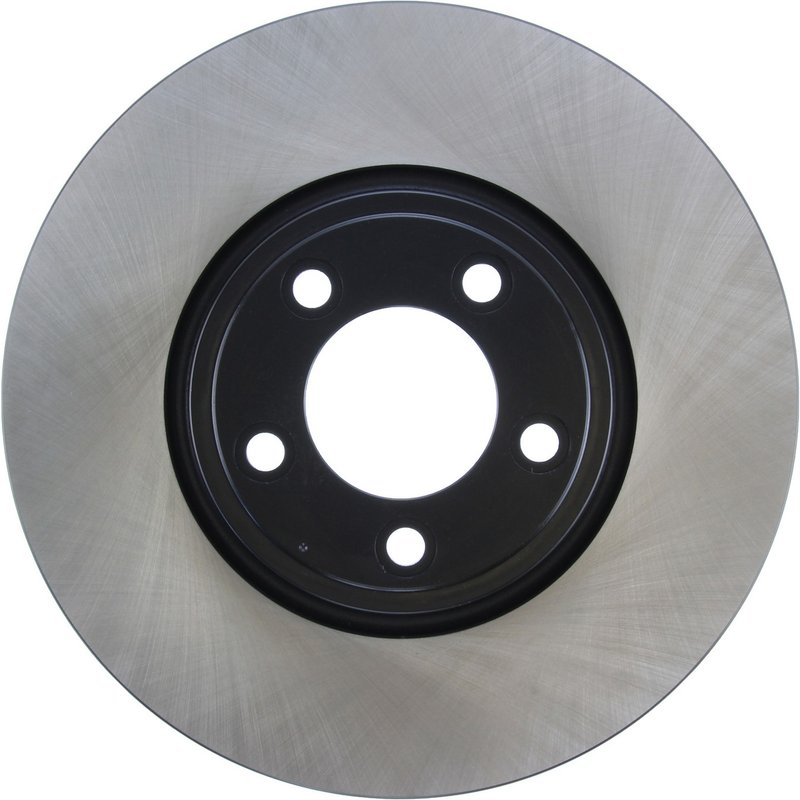

Centric 125.20029 Disc Brake Rotor - Front
| Brand | Centric 125.20029 |
|---|---|
| Position | Front |
| 108 | |
| ABS Tone Ring Included | No |
| Bearings Included | No |
| Bolt Hole Quantity | 5 |
| Center Hole Diameter | 2.795 |
| Center Hole Diameter | 71.000 |
| Disc Mounting [cntrc] | Floating |
| Discard Thickness | 1.102 |
| Discard Thickness | 28 |
| Discard Thickness | 28.000 |
| Hat Finish | Coated |
| Height | 46.2 |
| Hub Hole/Whl Reg mm | 71 |
| Misc Holes [cntrc] | 5 |
| Mounting Bolt Hole Circle Diameter | 4.252 |
| Mounting Bolt Hole Circle Diameter | 108.000 |
| Mounting Type | Floating |
| Nominal Thickness | 1.173 |
| Nominal Thickness | 29.8 |
| Nominal Thickness | 29.800 |
| Outside Diameter | 12.012 |
| Outside Diameter | 305.1 |
| Outside Diameter | 305.100 |
| Overall Height | 1.819 |
| Overall Height | 46.200 |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Diameter | 0.555 |
| Stud/Lug Hole Diameter | 14.100 |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| Vane Style | Straight |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] kgs | 9.550 |
| Weight [cntrc] lbs | 21.000 |
| Product line | Centric Premium High Carbon Alloy Disc Brake Rotors |
| Fits | Jaguar · 3 vehicles |
High carbon alloy. Advanced metallurgy helps reduce pad squeal and resist cracking under repeated stops.
Vented design. Straight vanes help move air through the rotor for more consistent braking.
Coated hat finish. Added chromium and carbon content improves oxidation resistance.
Cross-references Dorman - Autograde 45650, Raybestos Brakes 980645 and C2C25335 for the same application. See all 3.
Centric High Carbon Alloy Front Rotor
The Centric Premium High Carbon Alloy Disc Brake Rotor, part number 125.20029, is built for front brake service on select Jaguar S-Type applications. It uses a high-carbon alloy casting to help reduce brake noise, improve resistance to heat-related cracking, and maintain consistent stopping performance in repeated stop-and-go use.
For 2006-2008 Jaguar S-Type front brake repair, this Centric 125 Series rotor is a direct-fit option with a vented design, smooth surface, coated hat finish, and 5-bolt mounting pattern. The 125.20029 rotor is engineered for drivers who want stable braking feel and corrosion resistance in a premium replacement rotor.
Key Features
- Centric Premium High Carbon Alloy Disc Brake Rotors line
- Part number 125.20029
- Front disc brake rotor for 2006-2008 Jaguar S-Type
- Vented rotor construction with smooth braking surface
- High-carbon alloy metallurgy for improved heat and crack resistance
- Chromium and molybdenum content helps support durability under repeated braking
- Coated hat finish for added oxidation resistance
- 5 bolt holes, 108 mm bolt circle, 71 mm center hole
- Outside diameter: 305.1 mm; nominal thickness: 29.8 mm; discard thickness: 28 mm
Product Details
Centric’s 125 Series High Carbon Alloy Brake Rotors are formulated for applications that see frequent braking and higher friction pad compounds, including European-style pads. The alloy composition is intended to improve friction pairing, reduce pad squeal, and resist oxidation over time. On the Jaguar S-Type, the vented rotor design and precise dimensions support consistent front brake performance and OE-style fitment. This part number 125.20029 also cross-references Raybestos Brakes 980645 for the same application.
Common Brake Issues This Rotor Can Address
- Brake squeal during normal or repeated stops
- Heat-related rotor cracking in demanding driving conditions
- Uneven or inconsistent front braking feel
- Surface oxidation on exposed rotor areas
- Reduced stopping confidence from worn front rotors
Installation Notes
Fits 2006-2008 Jaguar S-Type, front. Confirm rotor dimensions, hub bore, bolt pattern, and vented rotor specification before installation. Clean the hub mounting surface thoroughly and inspect pads, calipers, and hardware condition during brake service. For best results, replace rotors in axle pairs and bed in new pads according to the pad manufacturer’s procedure.
Quality Assurance
Centric Premium High Carbon Alloy Disc Brake Rotors are manufactured with an advanced metallurgy focused on durability, noise control, and corrosion resistance. The 125.20029 rotor is built to meet the dimensional and material requirements of the listed Jaguar S-Type front brake application.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2008 | Jaguar | S-Type | Base | 3.0L | V6 | Front | 305mm Front DIsc; 300mm Rear Disc; Centric Premium High Carbon Alloy Disc Brake Rotors |
| 2007 | Jaguar | S-Type | Base | 3.0L | V6 | Front | 305mm Front DIsc; 300mm Rear Disc; Centric Premium High Carbon Alloy Disc Brake Rotors |
| 2006 | Jaguar | S-Type | Base | 3.0L | V6 | Front | 305mm Front DIsc; 300mm Rear Disc; Centric Premium High Carbon Alloy Disc Brake Rotors |
