Centric 125.22006 Disc Brake Rotor - Front

Overview of Centric Premium High Carbon Alloy Disc Brake Rotor 125.22006

The Centric Premium High Carbon Alloy Disc Brake Rotor 125.22006 is engineered for reliable braking performance on Land Rover Freelander vehicles. Designed with precision, this vented rotor offers consistent heat dissipation and durability for everyday driving conditions.

• Compatible with Land Rover Freelander models
• Part number: 125.22006
• Vented disc brake rotor with smooth surface finish
• Coated hat finish for corrosion resistance
• 5 bolt holes with 114.3 mm bolt circle diameter
• Nominal thickness of 20.9 mm and discard thickness of 18 mm
• Overall diameter of 277 mm (10.906 inches)
• Floating disc mounting design

Product Line Details: Centric Premium High Carbon Alloy Disc Brake Rotors

The Centric Premium High Carbon Alloy Disc Brake Rotors line focuses on enhanced durability and heat management through the use of high carbon alloy materials. This product line features vented rotors with coated hats to reduce corrosion and maintain structural integrity. The 125.22006 rotor benefits from these design elements, providing consistent braking performance and longer service life for Land Rover Freelander vehicles.

Technical Specifications and Features

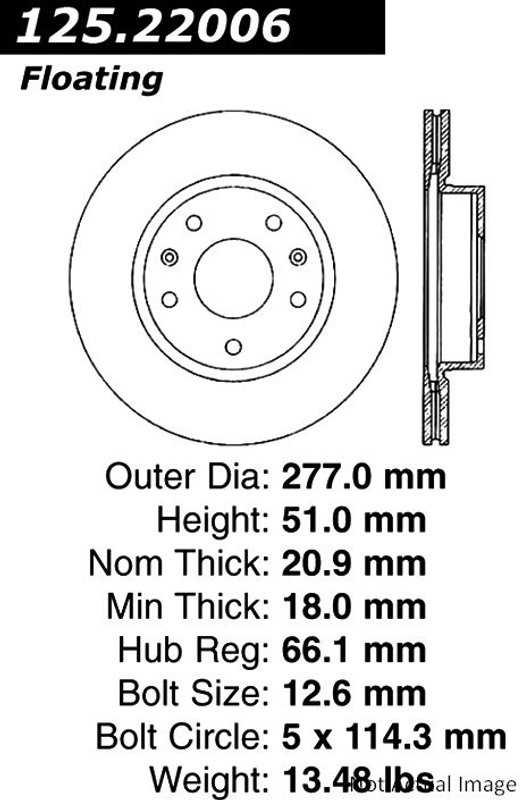

This disc brake rotor features a nominal thickness of 20.9 mm and a discard thickness of 18 mm, ensuring safe replacement intervals. The rotor’s outside diameter measures 277 mm (10.906 inches), with an overall height of 51 mm (2.008 inches). It includes a 5-bolt hole pattern with a 114.3 mm bolt circle diameter, matching the Land Rover Freelander’s hub specifications. The rotor surface is smooth and vented to optimize heat dissipation during braking. Additionally, the hat finish is coated to resist corrosion, extending the rotor’s lifespan. The floating disc mounting design helps accommodate thermal expansion and reduces stress on the rotor.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Land Rover Freelander
• Improves braking consistency by reducing heat buildup
• Addresses rotor corrosion issues with coated hat finish
• Restores proper rotor thickness for safe braking performance
• Compatible with vehicles requiring a 5-lug, 114.3 mm bolt pattern rotor

Installation Notes and Tips

• Verify compatibility with Land Rover Freelander before installation
• Check rotor thickness and replace if below 18 mm discard thickness
• Ensure proper torque on 5 mounting bolts to 114.3 mm bolt circle specifications
• Inspect brake pads and replace if worn to prevent rotor damage
• Clean mounting surfaces to ensure proper rotor seating and avoid vibration

Quality Assurance and Warranty

Centric Premium High Carbon Alloy Disc Brake Rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. The 125.22006 rotor undergoes rigorous quality control to ensure durability and performance. While specific warranty details are not provided, Centric products typically come with a limited warranty against defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
