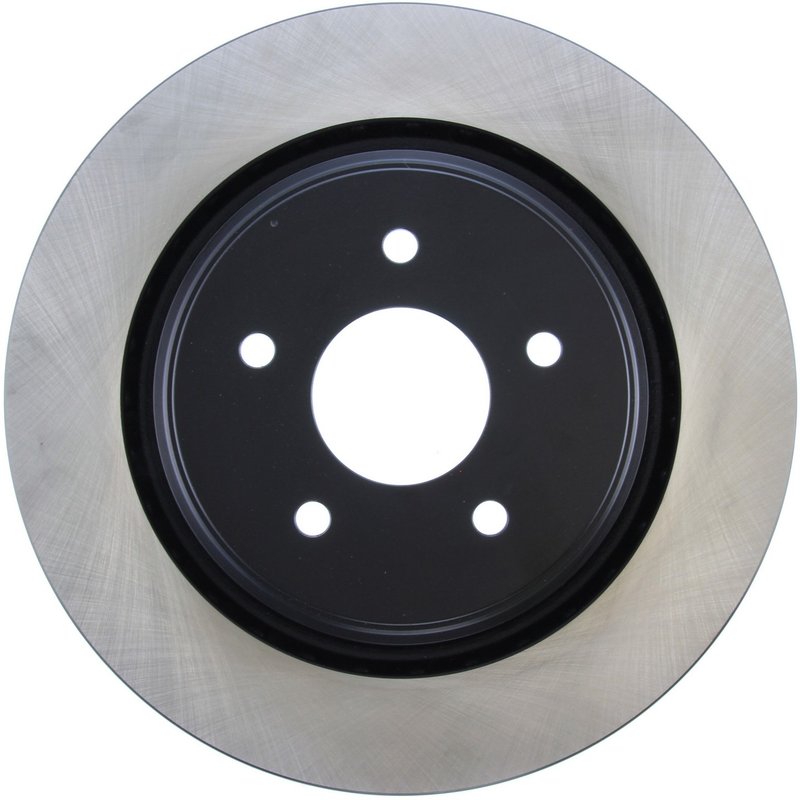

Centric 125.62096 Disc Brake Rotor - Rear

Overview of Centric Premium High Carbon Alloy Disc Brake Rotor 125.62096

The Centric Premium High Carbon Alloy Disc Brake Rotor 125.62096 is engineered for reliable braking performance on select Cadillac and Chevrolet vehicles. Designed specifically for models like the Corvette and XLR, this rotor offers precise fitment and consistent stopping power.

• Compatible with Cadillac Corvette and Chevrolet XLR
• Part number: 125.62096
• Vented disc brake rotor with smooth surface finish
• Coated hat finish for corrosion resistance
• 5 bolt holes with 120 mm bolt circle diameter
• Nominal thickness of 26.0 mm and discard thickness of 24.0 mm
• Overall diameter of 330 mm (12.992 inches)
• Center hole diameter of 70.7 mm (2.783 inches)

Product Line Details: Centric Premium High Carbon Alloy Disc Brake Rotors

The Centric Premium High Carbon Alloy Disc Brake Rotors line focuses on enhanced durability and heat dissipation through the use of high carbon alloy materials. This product line is designed to reduce rotor warping and extend service life, making it suitable for performance-oriented vehicles such as the Cadillac Corvette and Chevrolet XLR. The rotors feature a vented design and a coated hat finish to improve corrosion resistance and maintain structural integrity under demanding conditions.

Technical Specifications and Features

This disc brake rotor features a vented design that improves heat dissipation during braking, helping to maintain consistent performance. The smooth surface finish ensures even pad contact and reduces noise. With a nominal thickness of 26.0 mm and a discard thickness of 24.0 mm, the rotor provides a balance between durability and serviceability. The coated hat finish protects against rust and corrosion, extending the rotor's lifespan. The rotor includes 5 bolt holes arranged on a 120 mm bolt circle diameter, compatible with the specified vehicle models. The overall diameter measures 330 mm (12.992 inches), and the center hole diameter is 70.7 mm (2.783 inches), ensuring proper fitment on the hub.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Cadillac Corvette and Chevrolet XLR
• Improves braking consistency and reduces brake fade
• Addresses rotor corrosion and surface wear issues
• Restores proper rotor thickness for safe braking performance
• Compatible upgrade for vented rotor systems requiring precise fitment

Installation Notes and Tips

• Verify bolt hole pattern and rotor dimensions before installation
• Ensure rotor surface is clean and free of contaminants prior to mounting
• Use proper torque specifications for lug nuts to avoid rotor warping
• Inspect brake pads and replace if worn to maintain optimal braking
• Check for ABS tone ring compatibility; this rotor does not include one

Quality Assurance and Warranty

Centric Premium High Carbon Alloy Disc Brake Rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. The high carbon alloy construction enhances durability and heat resistance. While specific warranty details are not provided here, Centric products typically come with a limited warranty against defects in materials and workmanship. It is recommended to consult the product packaging or manufacturer for exact warranty terms.
