Centric 125.63061 Disc Brake Rotor - Front

Overview of Centric Premium High Carbon Alloy Disc Brake Rotor 125.63061

The Centric Premium High Carbon Alloy Disc Brake Rotor 125.63061 is engineered for reliable braking performance on Chrysler and Dodge vehicles. Designed specifically for models such as the 300, Challenger, Charger, and Magnum, this rotor offers precise fitment and consistent stopping power.

• Compatible with Chrysler 300, Dodge Challenger, Charger, and Magnum
• Part number 125.63061 ensures exact replacement fit
• Vented disc design for improved heat dissipation
• Coated hat finish to resist corrosion

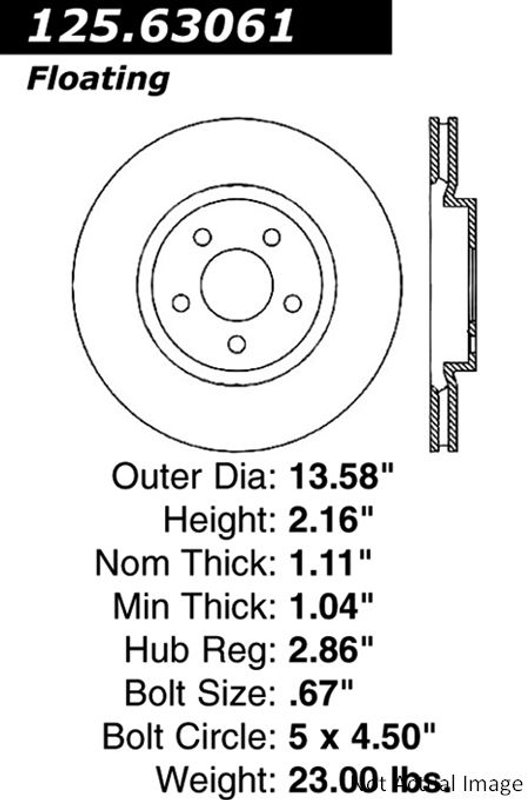

• 5 bolt holes with a 114.3 mm bolt circle diameter
• Nominal thickness of 28.1 mm and discard thickness of 26.5 mm
• Overall diameter of 345 mm (13.583 inches)
• Smooth surface type for consistent pad contact
• Floating disc mounting for enhanced rotor performance

Product Line Details: Centric Premium High Carbon Alloy Disc Brake Rotors

The Centric Premium High Carbon Alloy Disc Brake Rotors line focuses on delivering rotors made from high carbon alloy material, which improves rotor durability and heat resistance. This product line is designed to reduce brake fade and extend rotor life, making it suitable for performance-oriented Chrysler and Dodge vehicles. The 125.63061 rotor benefits from this advanced material composition and manufacturing process, providing a balance of strength and thermal management.

Technical Specifications and Features

This disc brake rotor features a vented design that enhances cooling during braking, reducing the risk of overheating. The rotor has a nominal thickness of 28.1 mm and a discard thickness of 26.5 mm, indicating when replacement is necessary to maintain safe braking performance. The rotor’s overall diameter measures 345 mm (13.583 inches), with a smooth surface type that ensures even brake pad wear. The hat section is coated to resist corrosion, and the rotor mounts using a floating disc system, which helps accommodate thermal expansion and reduces stress on the rotor.

Applications and Problem Solving

• Replacement for worn or warped rotors on Chrysler 300, Dodge Challenger, Charger, and Magnum
• Addresses brake fade caused by excessive heat during heavy braking
• Resolves vibration or pulsation issues due to uneven rotor surfaces
• Improves braking consistency and pedal feel
• Prevents premature rotor corrosion and surface degradation

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 26.5 mm before installation. Clean the rotor surface to remove any protective coating or debris prior to mounting. Use the 5-bolt pattern with a 114.3 mm bolt circle diameter for proper fitment. Verify compatibility with ABS systems, as this rotor does not include an ABS tone ring. Properly torque lug nuts to manufacturer specifications to avoid rotor warping.

Quality Assurance and Warranty

Centric Premium High Carbon Alloy Disc Brake Rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. The high carbon alloy construction enhances durability and heat resistance. While specific warranty details are not provided here, Centric products typically come with a limited warranty against defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
