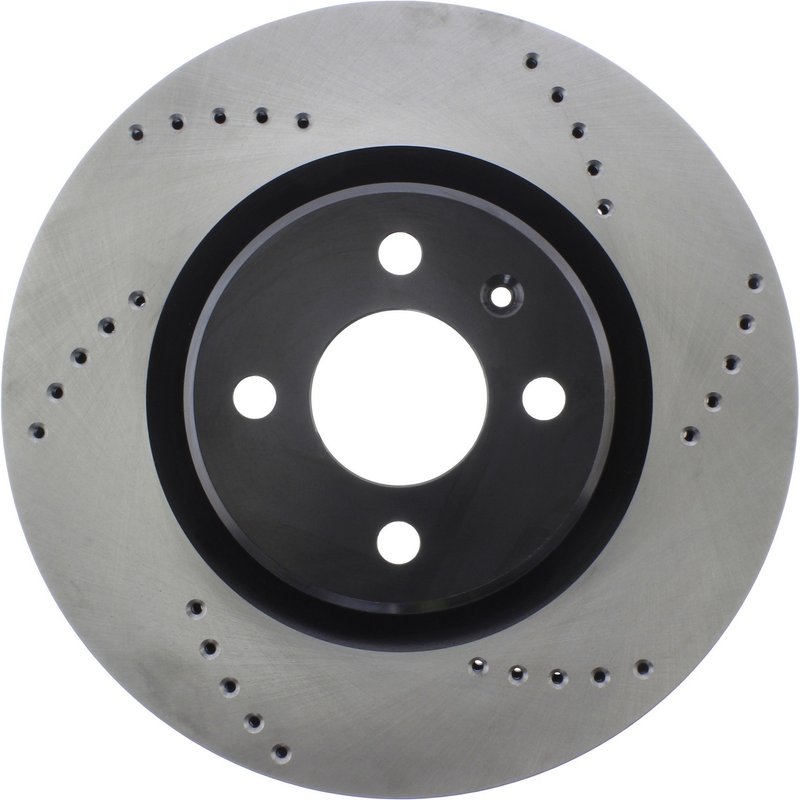

Centric 128.23000 Disc Brake Rotor - Front or Rear

Overview of Centric Premium OE Style Cross-Drilled Disc Brake Rotors

The Centric Premium OE Style Cross-Drilled Disc Brake Rotor, part number 128.23000, is engineered to meet or exceed original equipment specifications. Designed for vehicles requiring a 4-bolt mounting pattern and a 288.2 mm outside diameter, this rotor offers reliable braking performance with a vented, cross-drilled surface for improved heat dissipation.

• Cross-drilled surface type for enhanced cooling and reduced brake fade
• Vented rotor design to maintain optimal operating temperatures
• Coated hat finish to resist corrosion and extend rotor life
• 4 bolt holes with a 100 mm bolt circle diameter for precise fitment
• Nominal thickness of 25.9 mm and discard thickness of 24 mm for durability
• Floating disc mounting type for improved rotor alignment and performance
• Overall height of 44.3 mm and center hole diameter of 60 mm

Product Line Details

The Centric Premium OE Style Cross-Drilled Disc Brake Rotors line focuses on delivering rotors that replicate original equipment quality and fitment while incorporating performance-enhancing features such as cross-drilling and vented designs. This product line is ideal for drivers seeking OE-style replacement rotors with improved heat management and corrosion resistance, making it suitable for a range of passenger vehicles requiring precise fitment and reliable braking.

Technical Specifications and Features

This disc brake rotor features a nominal thickness of 25.9 mm and a discard thickness of 24 mm, ensuring a long service life before replacement is necessary. The rotor’s outside diameter measures 288.2 mm (11.346 inches), with an overall height of 44.3 mm. It includes a coated hat finish to protect against rust and corrosion, maintaining structural integrity over time. The rotor is vented to allow air circulation between the braking surfaces, reducing heat buildup during heavy braking. The cross-drilled surface further aids in heat dissipation and helps prevent brake fade under demanding conditions. The mounting bolt hole circle diameter is 100 mm with 4 bolt holes, and the center hole diameter is 60 mm, designed for vehicles with compatible hub dimensions. The floating disc mounting type allows for slight movement to reduce stress and improve braking consistency.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Improves heat dissipation to reduce brake fade during extended braking
• Addresses corrosion issues on rotor hats with coated finish
• Compatible with vehicles requiring 4-bolt, 100 mm bolt circle rotors
• Suitable for drivers seeking OE-style cross-drilled rotors for enhanced performance

Installation Notes and Tips

Ensure the rotor thickness is within the nominal and discard specifications before installation. This rotor requires a 4-bolt mounting pattern with a 100 mm bolt circle diameter and a 60 mm center hole diameter. Verify compatibility with your vehicle’s hub and wheel specifications. The floating mounting type requires proper alignment during installation to avoid uneven wear. No ABS tone ring or bearings are included, so retain existing components if applicable. Use proper torque specifications on mounting bolts to maintain rotor stability.

Quality Assurance and Warranty

Centric Premium OE Style Cross-Drilled Disc Brake Rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The coated hat finish provides corrosion resistance to extend rotor life. While specific warranty details are not provided here, Centric products typically come with a limited warranty against defects in materials and workmanship. Refer to Centric’s official documentation for complete warranty terms.
