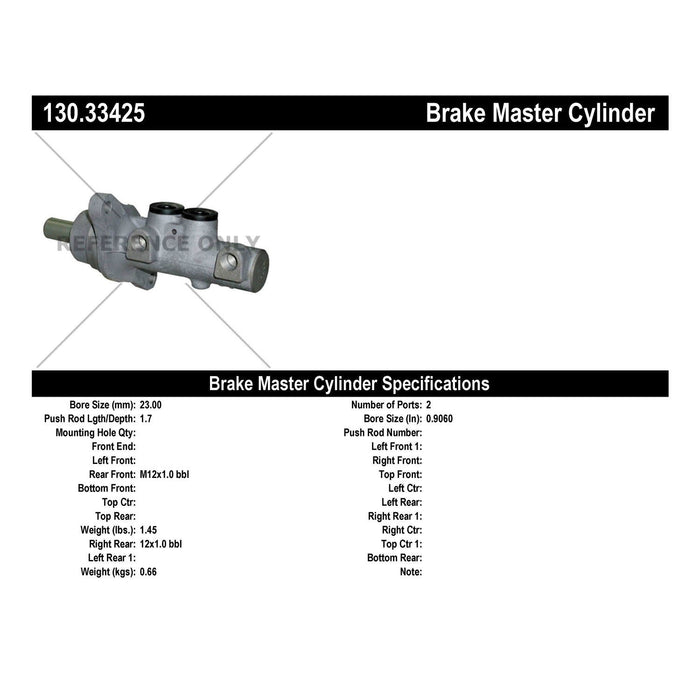

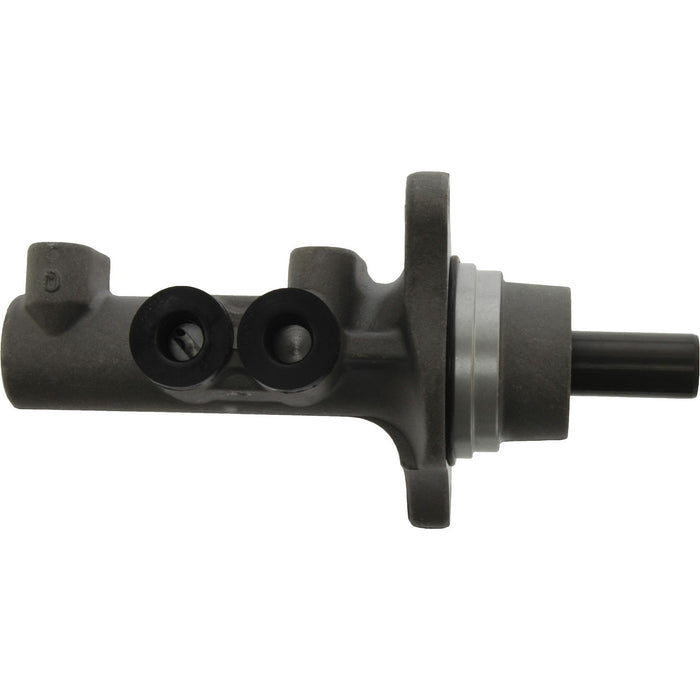

Centric 130.33425 Brake Master Cylinder

Vehicle Compatibility Chart

Part Attributes

• Bleeder Hoses Included:
  No
• Bore Size:
  0.906
• Bore Size:
  23.000
• Bore Type:
  Straight
• Boss, Nipple or Port: Front, Right: #A [cntrc]:
  M12-1.00 bbl
• Boss, Nipple or Port: Rear, Right: #A [cntrc]:
  M12-1.00 bbl
• Brake Booster Included:
  No
• Cylinder Bore Dia in:
  0.9060
• Cylinder Bore Dia mm:
  23.00
• Gasket Or Seal Included:
  Yes
• Master Cylinder Bore Diameter:
  0.906
• Master Cylinder Bore Diameter:
  23.000
• Master Cylinder Cap Included:
  No
• Master Cylinder Material:
  Aluminum
• Mounting Bracket Included:
  No
• Mounting Hardware Included:
  No
• Mounting Hole Quantity:
  2
• Port Quantity:
  2
• Primary Bore Diameter:
  0.906
• Primary Bore Diameter:
  23.000
• Primary Outlet Flare Type:
  Bubble
• Primary Outlet Flare Type [cntrc]:
  Bubble
• Primary Outlet Thread Diameter:
  12.000
• Primary Outlet Thread Pitch:
  1.00
• Primary Outlet Thread Size:
  M12-1.00
• Publication Bore [cntrc]:
  23mm
• Push Rod Included:
  No
• Push Rod Lgth / Depth:
  1.7
• Push Rod: Length / Depth [cntrc] in:
  1.7
• Reservoir Included:
  No
• Reservoir Material:
  Plastic
• Reservoir Style:
  Removable
• Secondary Outlet Flare Type:
  Bubble
• Secondary Outlet Flare Type [cntrc]:
  Bubble
• Secondary Outlet Thread Diameter:
  12.000
• Secondary Outlet Thread Pitch:
  1.00
• Secondary Outlet Thread Size:
  M12-1.00
• Weight [cntrc] kgs:
  0.66
• Weight [cntrc] lbs:
  1.45
