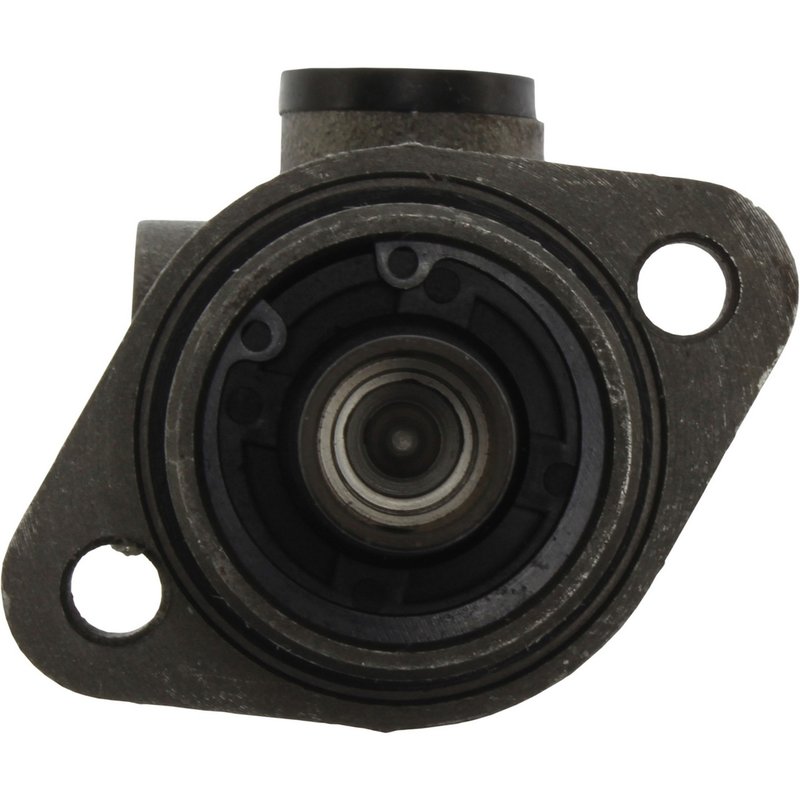

Centric 130.35504 Brake Master Cylinder

Overview of Centric Premium Brake Master Cylinder 130.35504

The Centric Premium Brake Master Cylinder 130.35504 is engineered for reliable brake hydraulic performance. Designed with a cast iron body and a plastic reservoir style, this master cylinder supports consistent brake pressure for various vehicle applications.

• Cast iron master cylinder material for durability
• Plastic removable reservoir style (reservoir not included)
• Two mounting holes for secure installation
• Dual outlet ports with M10-1.00 bubble flare threads
• Straight bore type with a 0.906 inch (23.000 mm) bore diameter
• Includes gasket or seal for proper sealing
• Does not include mounting hardware, brake booster, push rod, or reservoir

Product Line Details: Centric Premium Brake Master Cylinders

The Centric Premium Brake Master Cylinders line focuses on delivering precise hydraulic control and durability. This product line features master cylinders constructed from cast iron for strength and longevity, with carefully engineered bore sizes and port configurations to meet OEM specifications. The 130.35504 part number is part of this line, offering a removable plastic reservoir style and dual outlet ports designed for compatibility with specific brake systems.

Technical Description and Specifications

This brake master cylinder features a straight bore design with a bore diameter of 0.906 inches (23.000 mm), ensuring consistent hydraulic pressure delivery. The cast iron construction provides resistance to wear and heat, essential for maintaining brake system integrity. The unit includes two outlet ports, both with M10-1.00 thread size and bubble flare type fittings, suitable for standard brake line connections. The removable plastic reservoir style allows for flexible reservoir options, although the reservoir itself is not included. The package includes a gasket or seal to ensure a leak-free installation, but mounting hardware and other components such as the brake booster or push rod are not part of this assembly.

Common Applications and Problem Solving

• Replacement for worn or leaking brake master cylinders in compatible vehicles
• Restores proper brake pedal feel and hydraulic pressure
• Addresses brake fluid leaks caused by damaged seals or bore wear
• Improves brake system reliability by replacing corroded or damaged master cylinders
• Supports brake system maintenance and rebuild projects requiring OEM-style components

Installation Notes and Tips

• Verify compatibility with your vehicle’s make and model before installation
• Ensure the brake system is properly bled after installation to remove air
• Use the included gasket or seal to prevent fluid leaks at mounting points
• Mounting hardware, reservoir, push rod, and brake booster must be sourced separately if needed
• Follow manufacturer torque specifications for mounting bolts to avoid damage

Quality Assurance and Warranty

Centric Premium Brake Master Cylinders are manufactured to meet or exceed OEM standards for fit, form, and function. The 130.35504 part number undergoes rigorous quality control to ensure durability and performance. While specific warranty details are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
