OE Quality
60-Day Returns

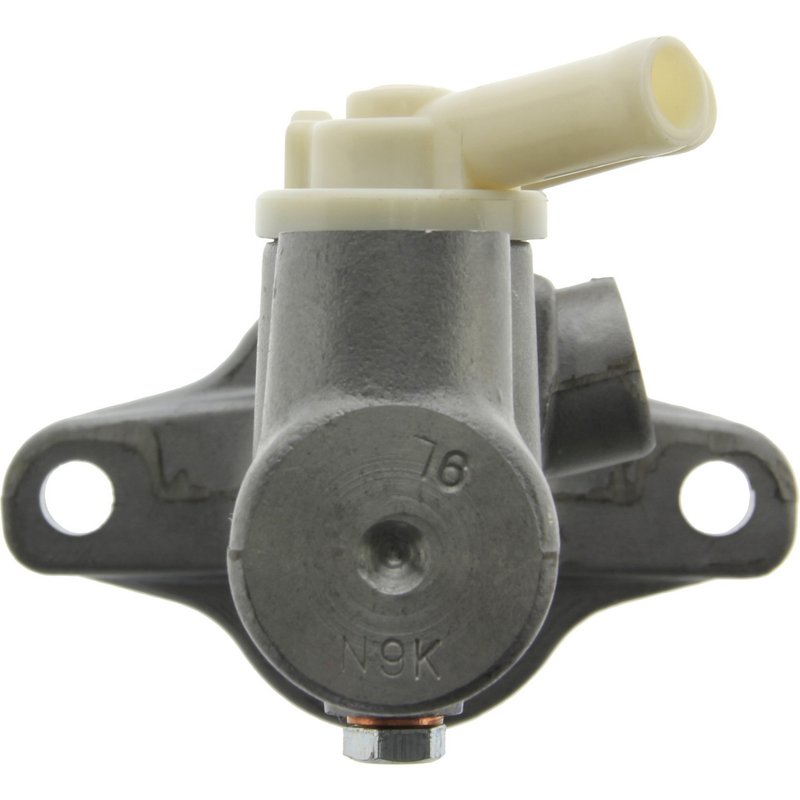

Centric 130.44817 Brake Master Cylinder
Overview of Centric Premium Brake Master Cylinder 130.44817
The Centric Premium Brake Master Cylinder 130.44817 is engineered for reliable brake hydraulics performance on Toyota Sienna models. Designed with precision, this brake master cylinder ensures consistent brake pressure and fluid control for safe vehicle operation.
- Compatible with Toyota Sienna vehicles
- Aluminum master cylinder material for durability
- Plastic reservoir material with remote reservoir style
- Includes gasket or seal for secure installation
- Two mounting holes for stable attachment
- Master cylinder bore diameter of 0.813 inches (20.638 mm)
- Two or three ports with M10-1.00 inverted flare outlet threads
Centric Premium Brake Master Cylinders Product Line
The Centric Premium Brake Master Cylinders line focuses on delivering high-quality brake hydraulics components that meet or exceed OEM specifications. This product line emphasizes durable materials such as aluminum for the master cylinder body and includes essential seals to ensure leak-free operation. The 130.44817 part is a representative example, designed to provide consistent braking performance and compatibility with specific vehicle models like the Toyota Sienna.
Detailed Product Description
This Centric brake master cylinder features an aluminum construction that offers strength and resistance to corrosion. The plastic reservoir material is designed in a remote style, allowing flexible installation options. The bore size measures 0.813 inches (20.638 mm), providing precise hydraulic pressure control. The unit includes a gasket or seal to maintain a secure and leak-free connection but does not come with mounting hardware, reservoir, push rod, brake booster, or bleeder hoses. It has two mounting holes and multiple ports with M10-1.00 inverted flare threads for both primary and secondary outlets, ensuring compatibility with the Toyota Sienna brake system.
Common Issues Addressed by This Brake Master Cylinder
- Brake pedal sinking or sponginess due to master cylinder wear
- Brake fluid leaks around the master cylinder seals
- Inconsistent brake pressure affecting stopping performance
- Failure of the original master cylinder causing brake system malfunction
- Replacement needed for brake system maintenance or restoration
Installation Notes and Tips
- Ensure compatibility with Toyota Sienna models before installation
- Use the included gasket or seal to prevent fluid leaks
- Bleed the brake system thoroughly after installation to remove air
- Mounting hardware is not included; reuse existing hardware or source separately
- Check all connections for proper thread pitch and flare type (M10-1.00 inverted flare)
Quality Assurance and Warranty
The Centric Premium Brake Master Cylinder 130.44817 is manufactured to meet strict quality standards for brake hydraulics components. While specific warranty details are not provided, Centric products typically undergo rigorous testing to ensure durability and performance. It is recommended to verify warranty coverage with the point of purchase or manufacturer documentation.
| Brand | Centric |
|---|---|
| Part Number | 130.44817 |
| Position | Centric Premium Brake Master Cylinders |
| Bleeder Hoses Included | No |
| Bore Size | 0.813 |
| Bore Size | 20.638 |
| Bore Type | Straight |
| Boss, Nipple or Port: Center, Bottom [cntrc] | M6-1.00 screw |
| Boss, Nipple or Port: Front, Top [cntrc] | M10-1.00 inv |
| Boss, Nipple or Port: Rear: #A [cntrc] | M10-1.00 inv |
| Brake Booster Included | No |
| Cylinder Bore Dia in | 0.8125 |
| Cylinder Bore Dia mm | 20.64 |
| Gasket Or Seal Included | Yes |
| Master Cylinder Bore Diameter | 0.813 |
| Master Cylinder Bore Diameter | 20.638 |
| Master Cylinder Cap Included | No |
| Master Cylinder Material | Aluminum |
| Mounting Bracket Included | No |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 2 |
| Port Quantity | 2 |
| Port Quantity | 3 |
| Primary Bore Diameter | 0.813 |
| Primary Bore Diameter | 20.638 |
| Primary Outlet Flare Type | Inverted |
| Primary Outlet Flare Type [cntrc] | Inverted |
| Primary Outlet Thread Diameter | 10.000 |
| Primary Outlet Thread Pitch | 1.00 |
| Primary Outlet Thread Size | M10-1.00 |
| Publication Bore [cntrc] | 13/16" |
| Push Rod Included | No |
| Push Rod Lgth / Depth | 1.96 |
| Push Rod: Length / Depth [cntrc] in | 1.96 |
| Reservoir Included | No |
| Reservoir Material | Plastic |
| Reservoir Style | Remote |
| Secondary Outlet Flare Type | Inverted |
| Secondary Outlet Flare Type [cntrc] | Inverted |
| Secondary Outlet Thread Diameter | 10.000 |
| Secondary Outlet Thread Pitch | 1.00 |
| Secondary Outlet Thread Size | M10-1.00 |
| Weight [cntrc] kgs | 0.8 |
| Weight [cntrc] lbs | 1.75 |
This part fits 1 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2003 | Toyota | Sienna | N/A | exc VSC; Centric Premium Brake Master Cylinders |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
