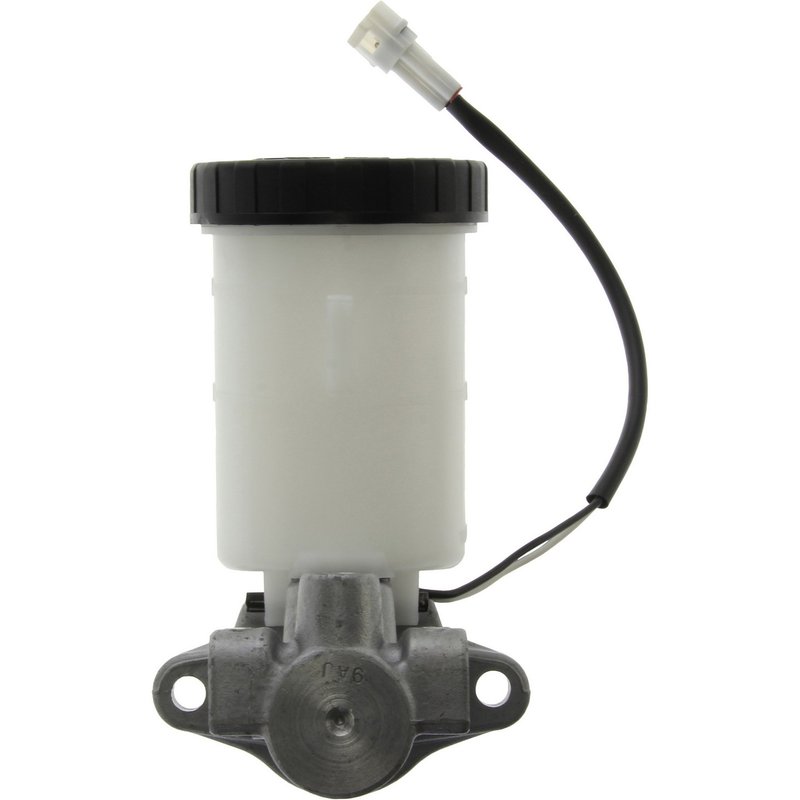

Centric 130.48017 Brake Master Cylinder

Reliable Brake Master Cylinder for Chevrolet Tracker and Suzuki Vitara

The Centric Premium Brake Master Cylinder 130.48017 is engineered to restore precise brake hydraulics for Chevrolet Tracker and Suzuki Vitara models. Designed with durable materials and exact fitment specifications, this brake master cylinder ensures consistent braking performance.

• Compatible with Chevrolet Tracker and Suzuki Vitara vehicles
• Constructed with an aluminum master cylinder body for strength and corrosion resistance
• Includes a plastic single reservoir with removable style for easy maintenance
• Equipped with a master cylinder cap and gasket/seal for secure fluid containment
• Features a straight bore type with a 0.938 inch (23.813 mm) bore diameter
• Two mounting holes for secure installation
• Primary and secondary outlet thread size M10-1.00 with inverted flare type
• Includes the reservoir but excludes mounting hardware, brake booster, push rod, bleeder hoses, and mounting bracket

About Centric Premium Brake Master Cylinders

The Centric Premium Brake Master Cylinders line focuses on delivering high-quality brake hydraulics components that meet or exceed OEM specifications. This product line emphasizes durable materials such as aluminum for the master cylinder and plastic for the reservoir, ensuring reliable brake fluid management and long service life. The 130.48017 part is a precise replacement designed to maintain the integrity of the braking system in Chevrolet Tracker and Suzuki Vitara vehicles.

Product Details and Specifications

This brake master cylinder features a single plastic reservoir with a removable style, allowing for straightforward inspection and fluid replacement. The aluminum master cylinder body provides resistance to corrosion and wear, critical for maintaining hydraulic pressure. The bore diameter measures 0.938 inches (23.813 mm), with a straight bore type that supports consistent piston movement. The unit includes a master cylinder cap and gasket/seal to prevent leaks and contamination. It has two mounting holes for secure attachment but does not include mounting hardware or a brake booster. Both primary and secondary outlets have M10-1.00 thread size with inverted flare fittings, supporting standard brake line connections.

Common Applications and Issues Addressed

• Restores proper brake pedal feel and hydraulic pressure
• Eliminates brake fluid leaks from worn or damaged master cylinders
• Resolves inconsistent braking performance or spongy brake pedal
• Replaces faulty or corroded master cylinders in Chevrolet Tracker and Suzuki Vitara
• Supports brake system maintenance and fluid reservoir replacement

Installation Notes and Tips

Ensure the vehicle is properly supported and the brake system depressurized before installation. This master cylinder requires two mounting holes for secure attachment; verify alignment with the vehicle’s brake booster and firewall. The included gasket/seal should be installed to prevent fluid leaks. Since mounting hardware and push rod are not included, reuse existing components or source separately if needed. Bleed the brake system thoroughly after installation to remove air and restore proper hydraulic function.

Quality Assurance and Warranty

Centric Premium Brake Master Cylinders are manufactured to meet strict quality standards, using durable aluminum and plastic materials for longevity and performance. The 130.48017 part undergoes rigorous testing to ensure fitment accuracy and hydraulic reliability. Warranty coverage details should be confirmed with the product documentation or supplier.
